Ignition Switch: Installation
The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to SYSTEM WIRING DIAGRAMS .
- A tab on the ignition switch indexes to a notch in the lock cylinder housing. Also, a slot in the end of the ignition switch fits over the shaft in the end of the lock cylinder housing. Use the ignition key to rotate the lock cylinder to align the ignition switch with lock cylinder housing.
- Tighten the mounting screws, refer to SPECIFICATIONS for specification.
- Attach electrical connector to SKREAM Module.
- Attach electrical connector to ignition switch.
- Install the interlock cable into the switch assembly (Figure).

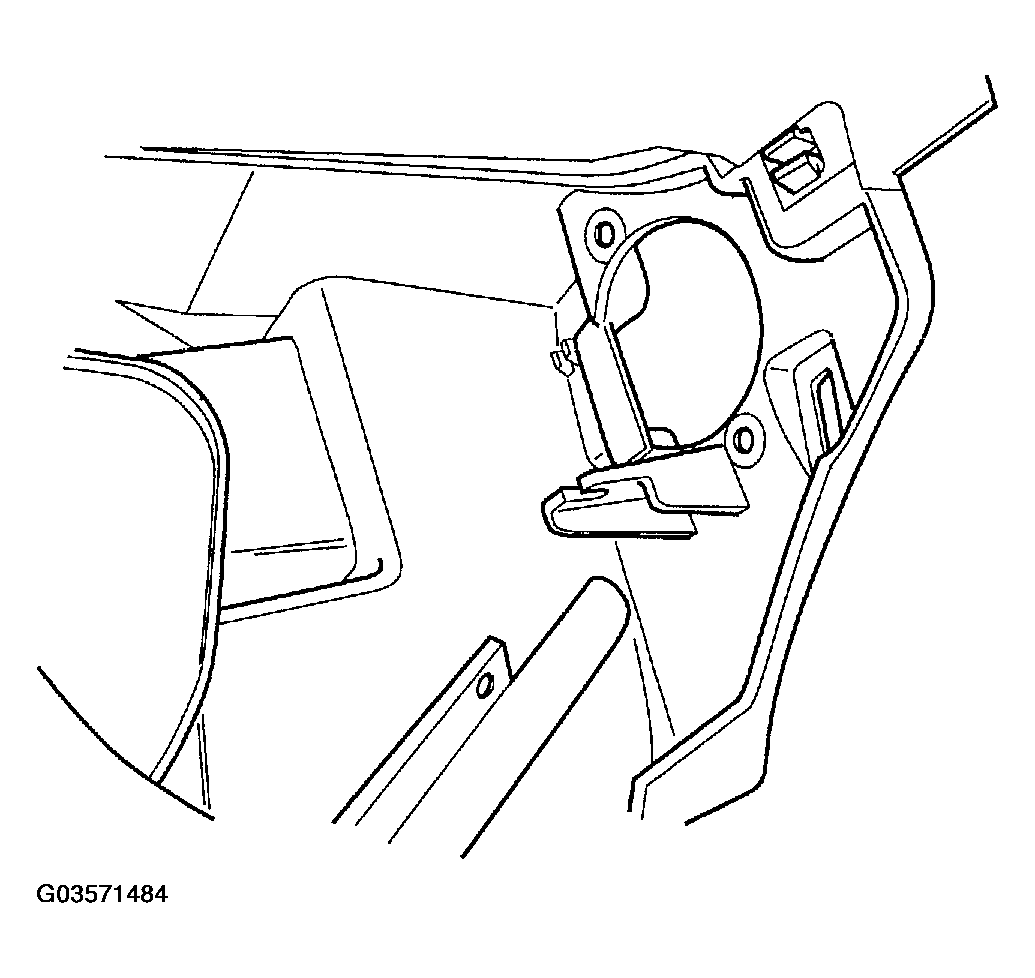

- Install switch assembly into Instrument Panel (Fig 1). Make sure that the rear mounting nut is in the correct position (Figure) and (Figure).
- Tighten the 3 mounting nuts, refer to SPECIFICATIONS for torque specification.
- Install the Instrument Panel Center Bezel, (Refer to INSTRUMENT PANEL CENTER BEZEL ).
- Install the Knee Blocker Airbag, (Refer to AIR BAG RESTRAINT SYSTEMS ).
- Connect the negative cable.
