2004 Chrysler Pacifica AWDFACTORY OEM SERVICE PROCEDURE

Key/Lock Cylinder: Removal

Disconnect the negative battery cable.
Remove bezel ignition switch ring.
Pull center console bezel loose from instrument panel (Fig 1).

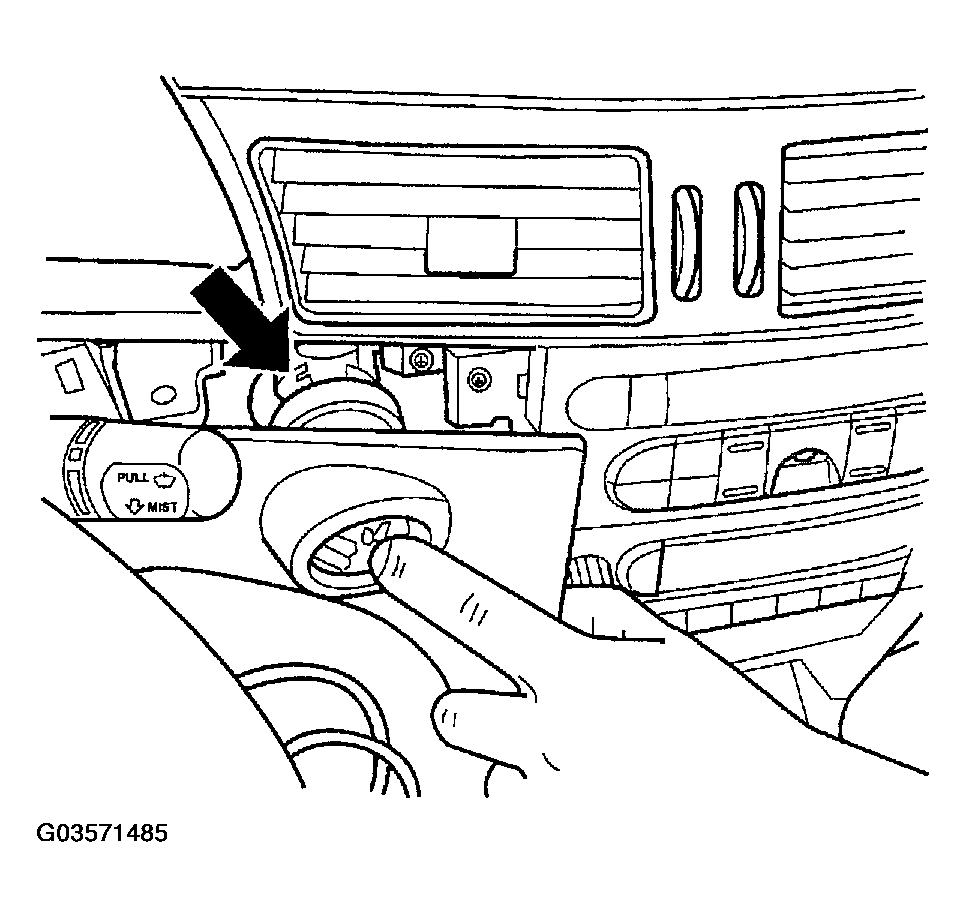

Fig 1: Locating Tab With Bezel In Place
Courtesy of DAIMLERCHRYSLER CORP.
Insert ignition key and turn to the "ON" position.
Depress the locking tab on the ignition switch housing (Fig 2).

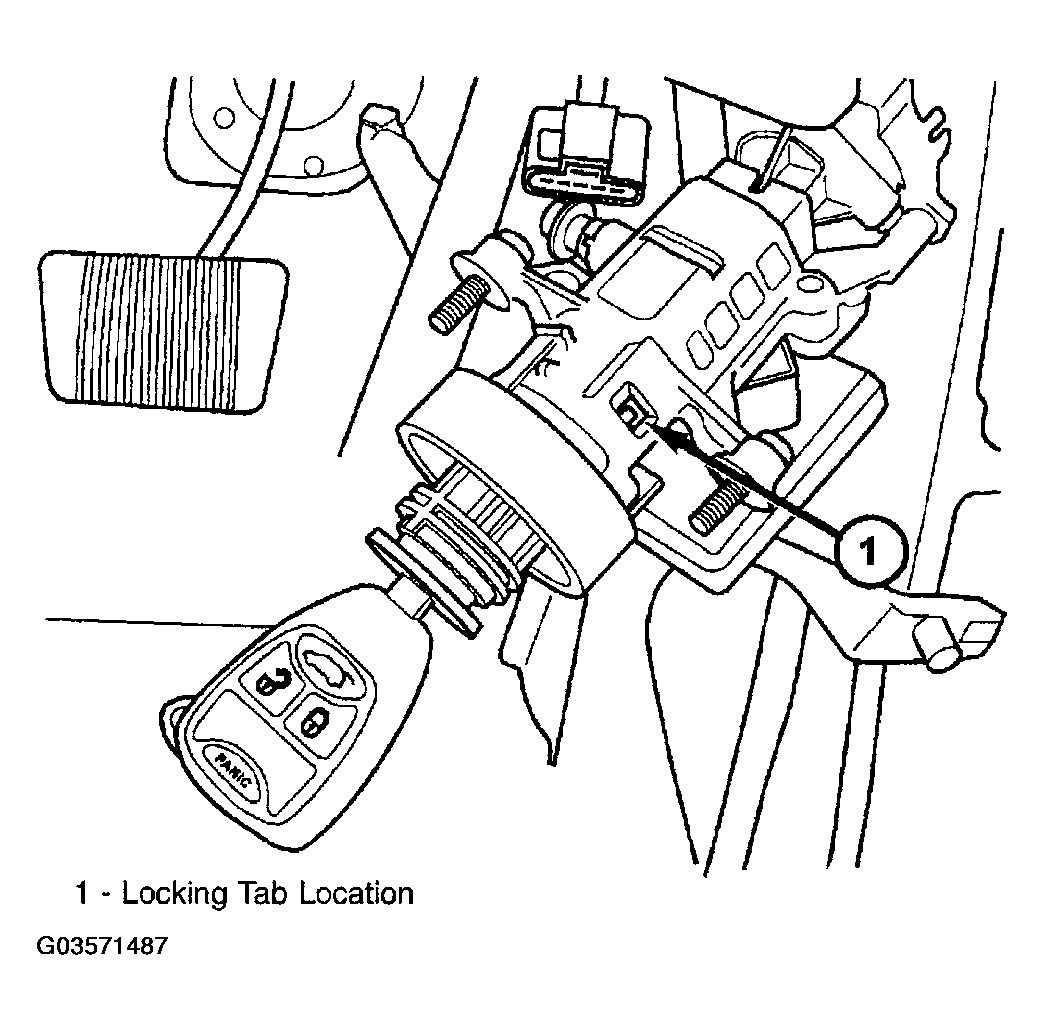

Fig 2: Depressing Locking Tab On Ignition Switch Housing
Courtesy of DAIMLERCHRYSLER CORP.
Pull the key cylinder from the ignition switch housing (Fig 3).

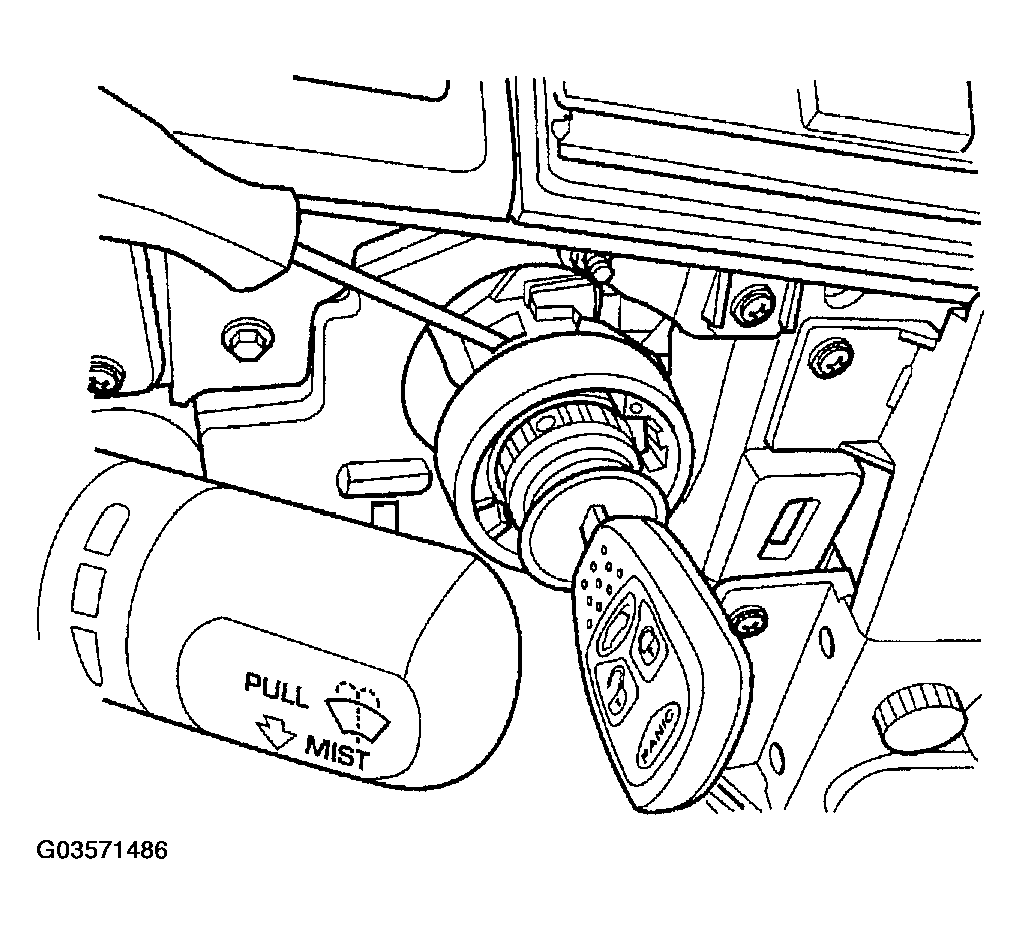

Fig 3: Locating Locking Tab
Courtesy of DAIMLERCHRYSLER CORP.
