2004 Chrysler Pacifica AWDFACTORY OEM SERVICE PROCEDURE

Camshaft Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Remove air cleaner box.
  3. Unlock the camshaft sensor electrical connector (Fig 1).
  4. Disconnect the electrical connectors to the camshaft sensor.
  5. Remove the mounting bolts.
  6. Remove camshaft sensor (Fig 2).

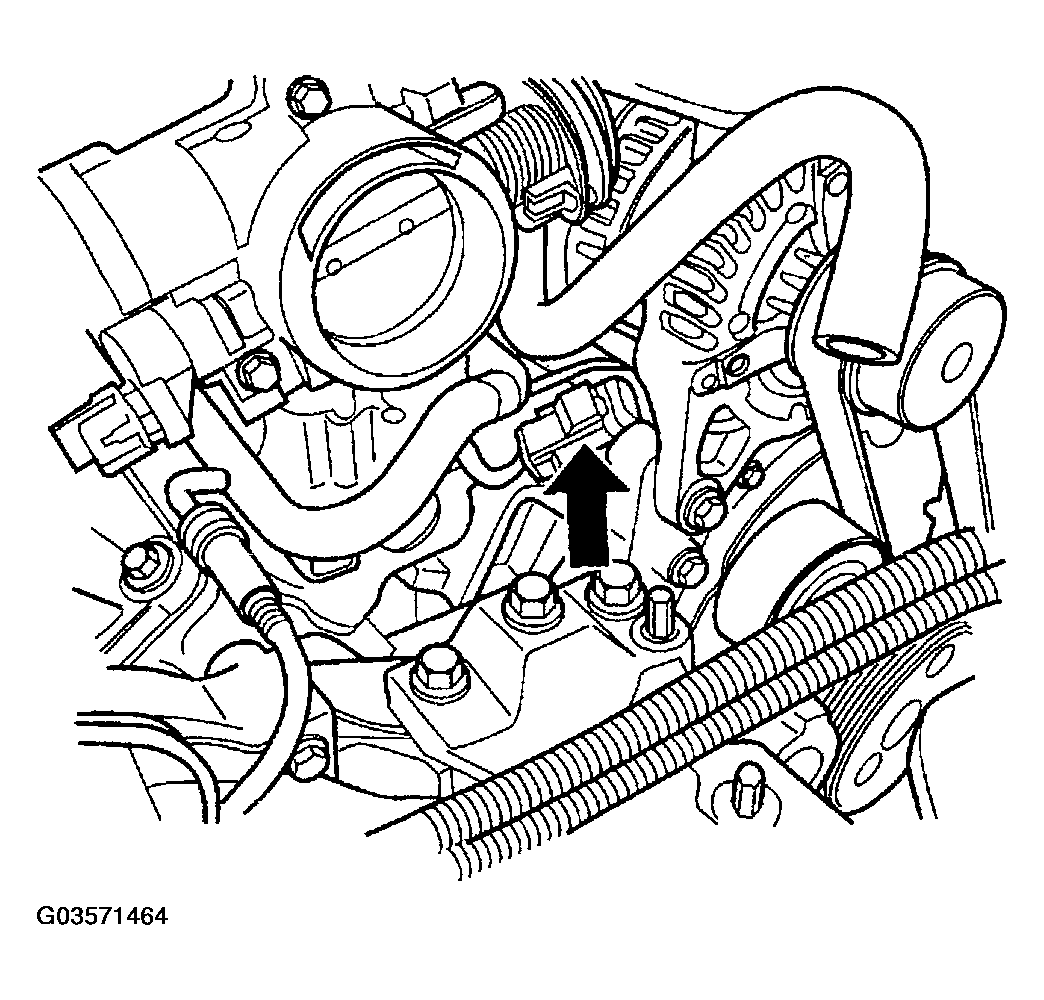

    Fig 1: Locating Cam Sensor
    G03571464Courtesy of DAIMLERCHRYSLER CORP.
