2004 Chrysler Pacifica AWDFACTORY OEM SERVICE PROCEDURE

Throttle Body: Removal

Disconnect negative cable from battery
Remove the engine cover.
Remove the air cleaner box, (Refer to AIR CLEANER HOUSING ).
Hold throttle lever in wide open position. Remove throttle cable and speed control cables from throttle arm.
Remove throttle cable bracket (Fig 1 ).

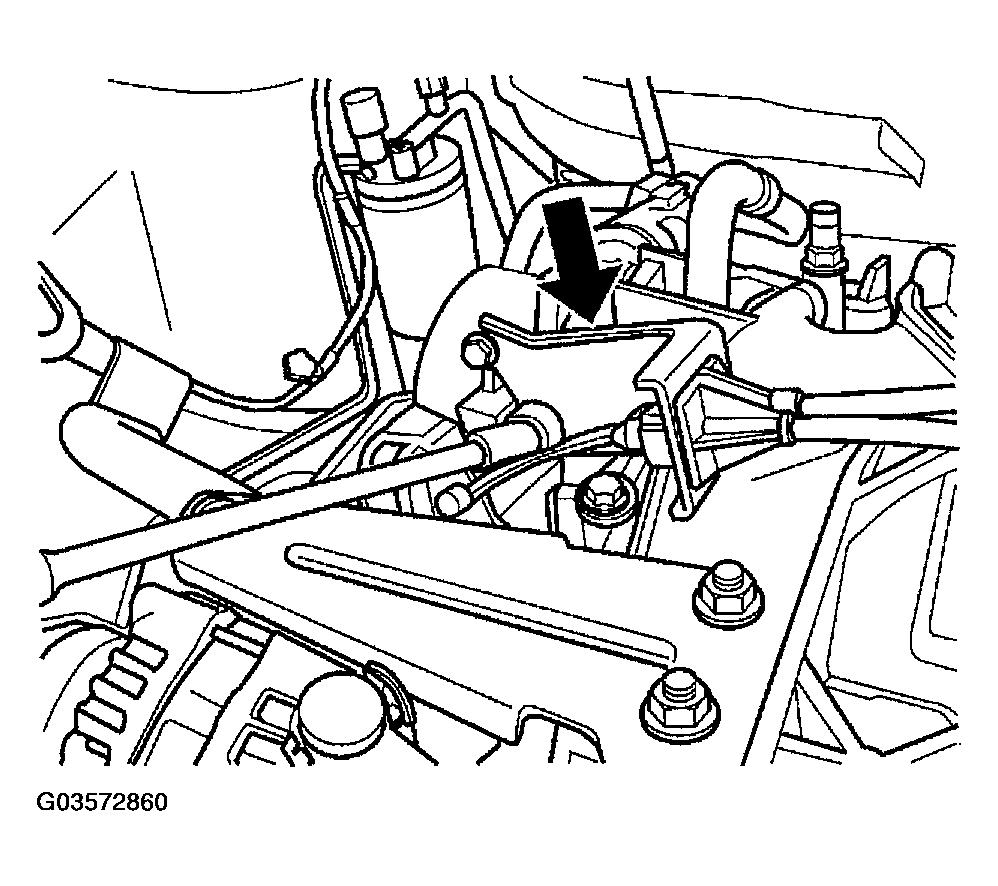

Fig 1: Identifying Throttle Body Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect electrical connectors from throttle body (Fig 2 ).

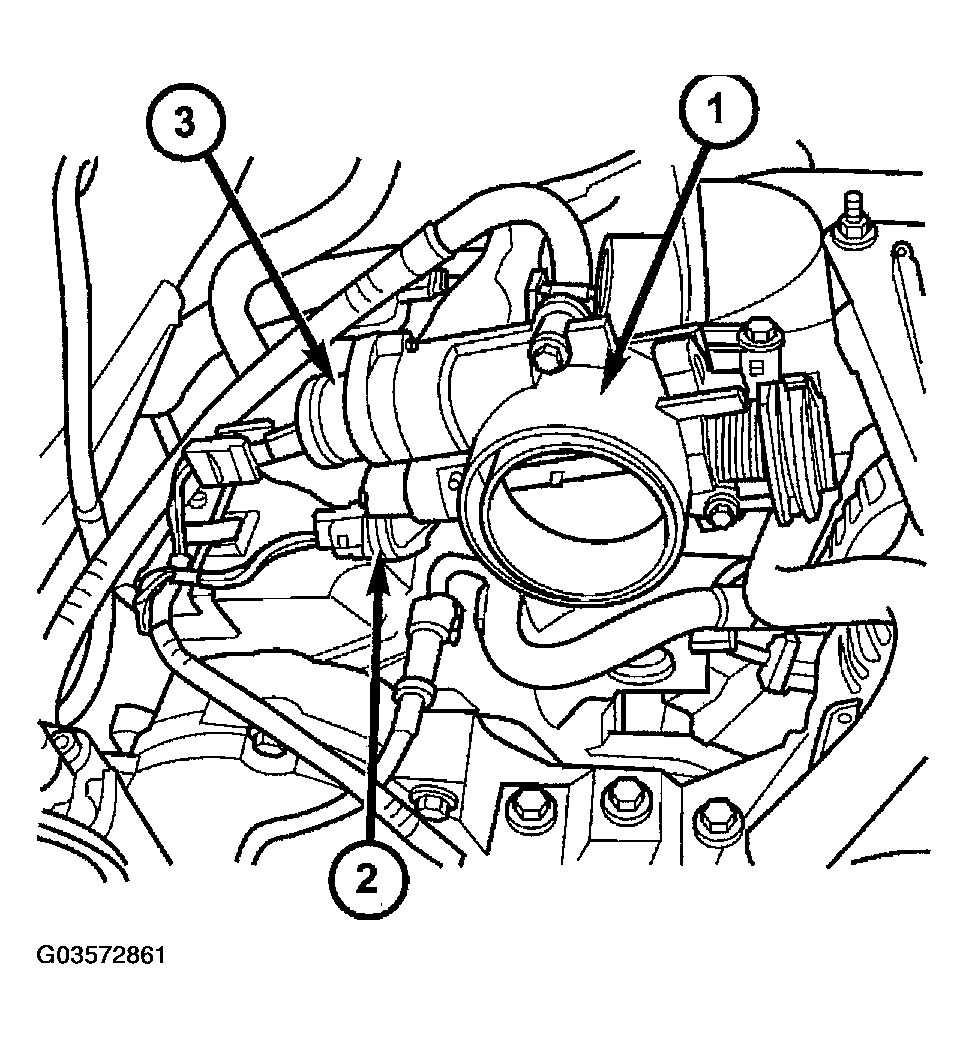

Fig 2: Identifying Throttle Body, TPS, & IAC
Courtesy of DAIMLERCHRYSLER CORP.
Remove 3 throttle body bolts.
Remove throttle body (Fig 3 ).

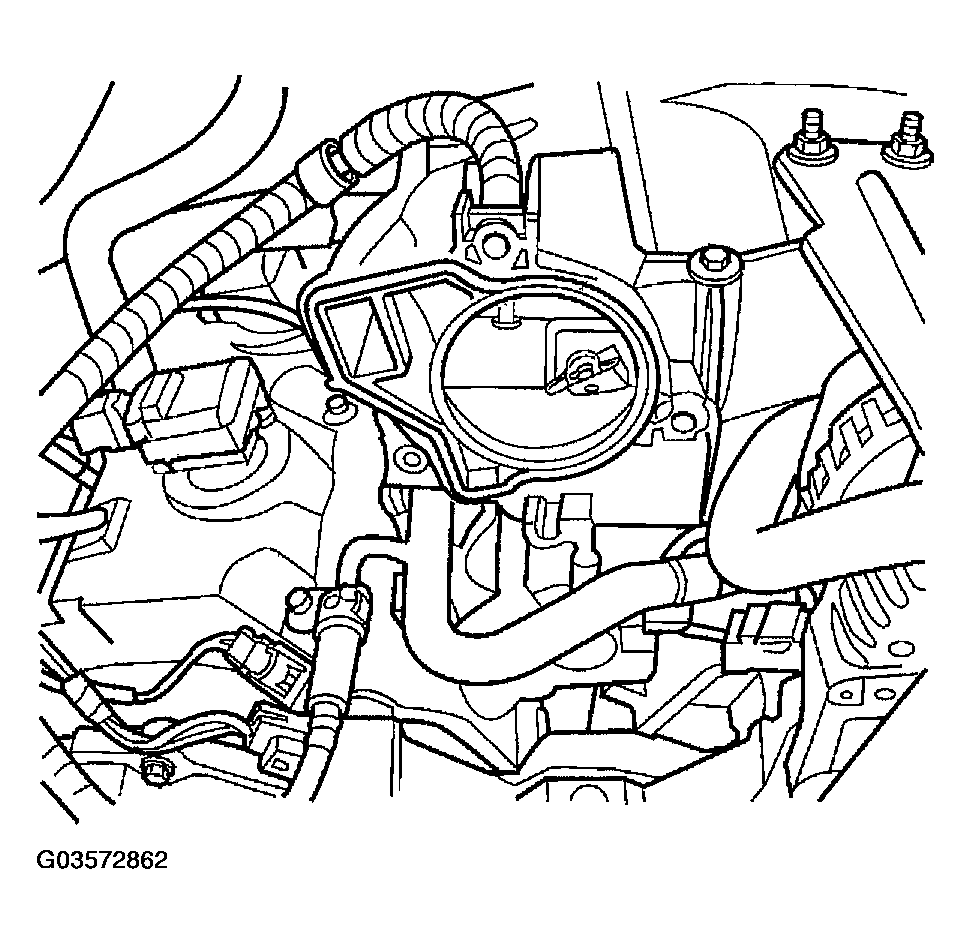

Fig 3: Removing Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Clean mating surfaces.
