2004 Chrysler Pacifica AWDFACTORY OEM SERVICE PROCEDURE
Fuel Pump Module: Removal
- Release the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
- Disconnect the negative battery cable.
- Remove fuel tank. Refer to FUEL TANK .
- Vacuum area before removing fuel pump module lock ring.

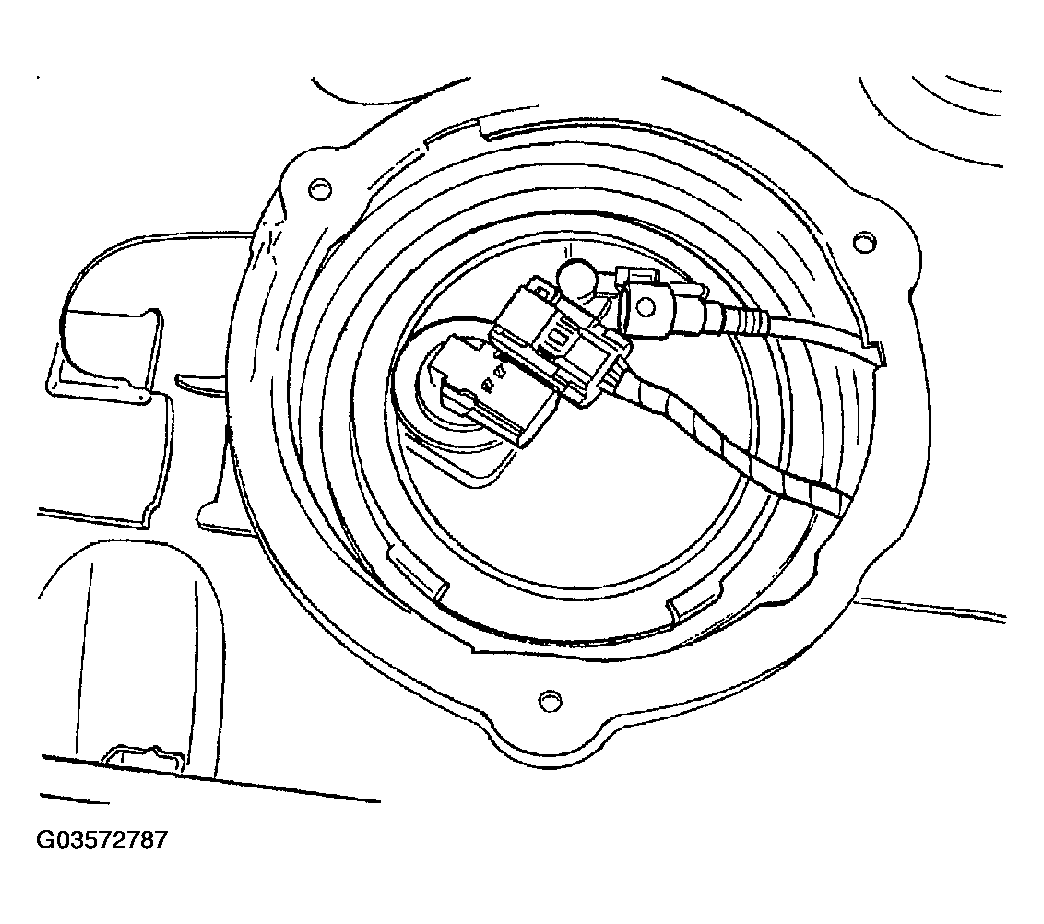

- Disconnect the vapor line and electrical connector (Fig 1).
- Remove the Fuel Pump Module lock ring (Fig 2).NOTE: Use a brass punch to remove the 1/4 turn lock ring. Make contact only at the points shown (Fig 3).
