2004 Chrysler PT Cruiser Limited, 2.4 B, Standard

O2 Sensor: Description

2004 Chrysler PT Cruiser Limited, 2.4 B, StandardSECTION Description

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.

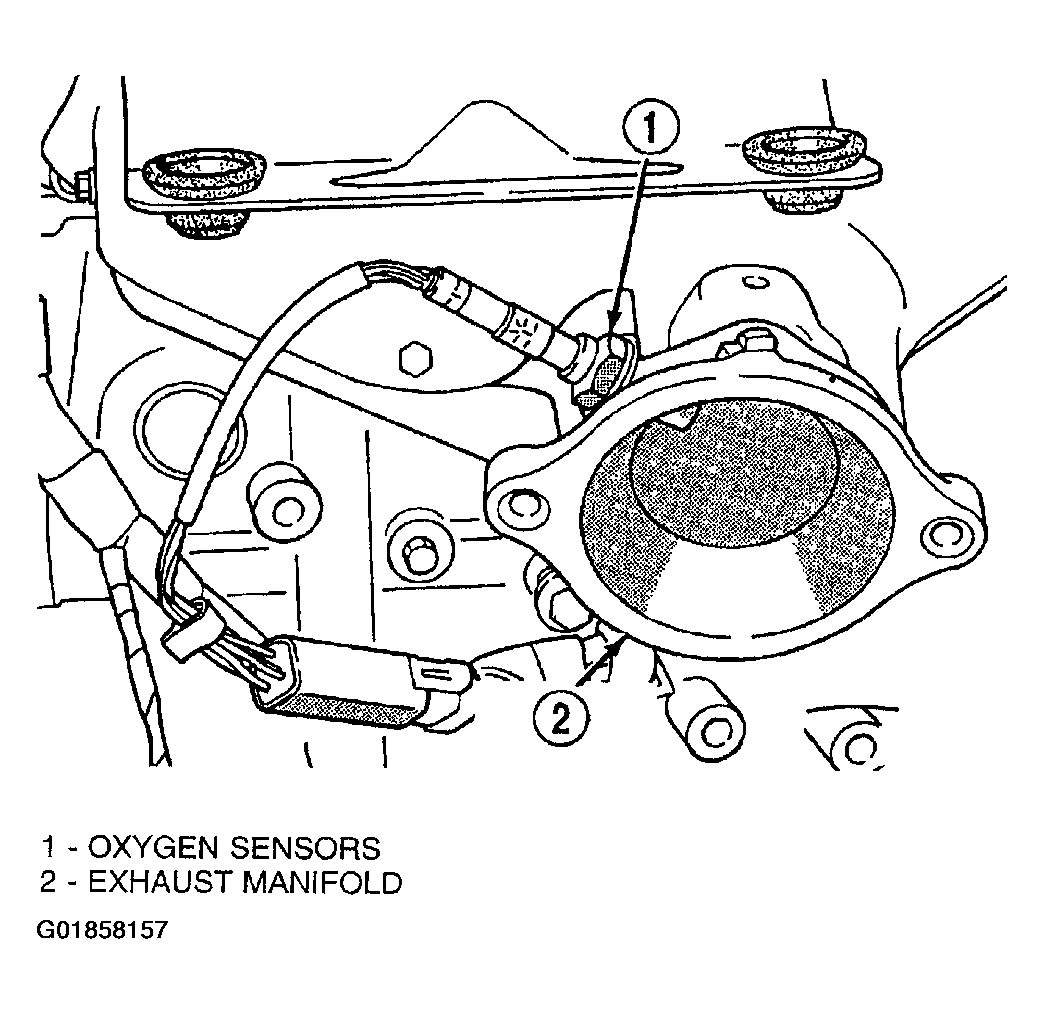

Fig 1: Identifying Upstream Heated Oxygen Sensor 1/1

Courtesy of DAIMLERCHRYSLER CORP.
