2004 Chrysler PT Cruiser Limited, 2.4 B, StandardFACTORY OEM SERVICE PROCEDURE
Sentry Key Immobilizer Module: Removal
- Disconnect and isolate the battery negative remote cable.
- Remove Lower Instrument Panel Cover. See BODY article.
- Remove the steering column upper and lower shrouds. See STEERING COLUMN article.

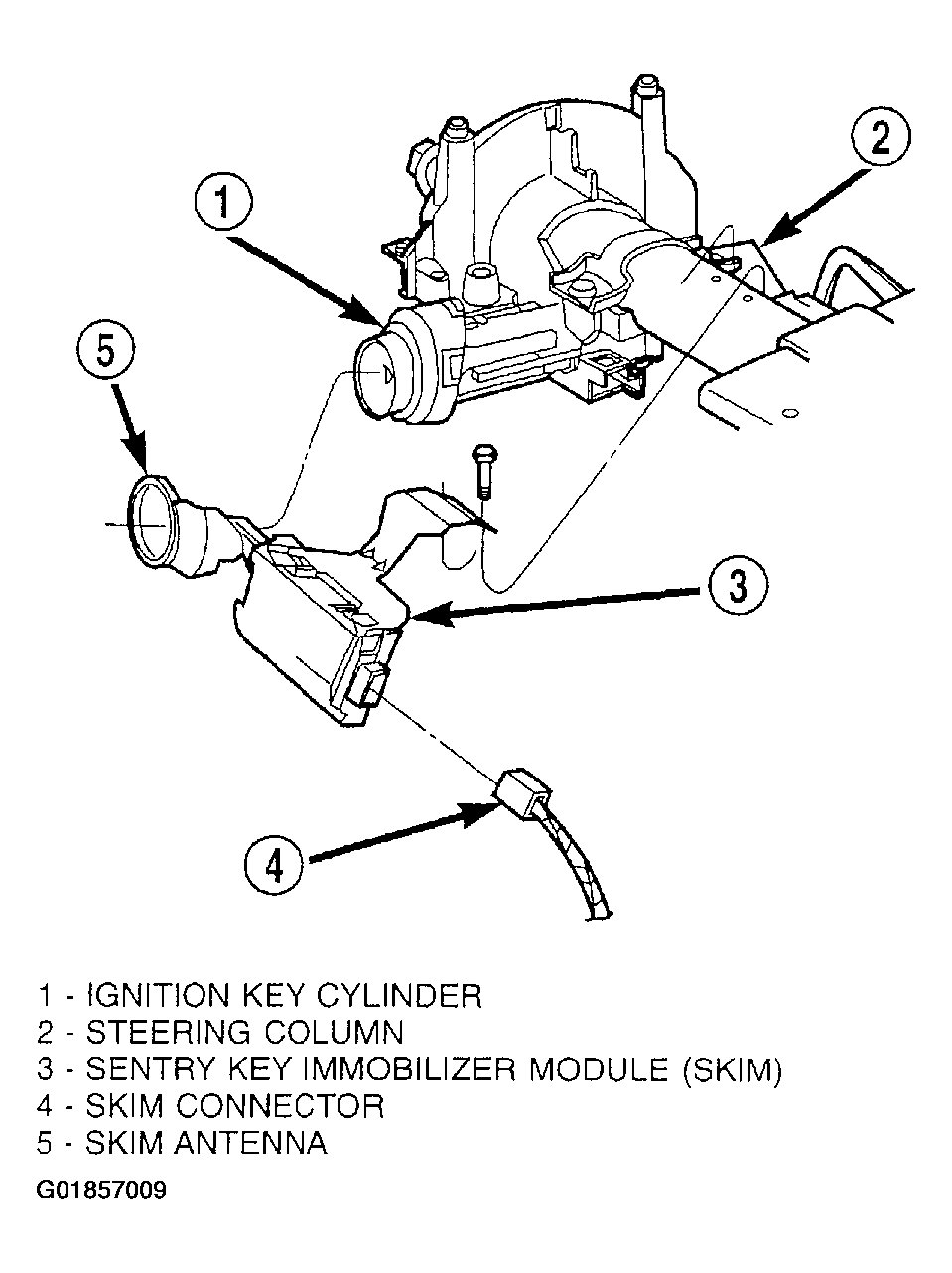

- Disengage the steering column wire harness from the Sentry Key Immobilizer Module (SKIM).
- Remove the two screws securing the SKIM to the top of the steering column.
- Rotate the SKIM and its mounting bracket upwards and then to the side away from the steering column to slide the SKIM antenna ring from around the ignition switch lock cylinder housing.
- Remove the SKIM from the vehicle.
