2004 Chrysler PT Cruiser Limited, 2.4 B, StandardFACTORY OEM SERVICE PROCEDURE
Controller Antilock Brake: Removal
- Disconnect battery negative cable.
- Raise vehicle.

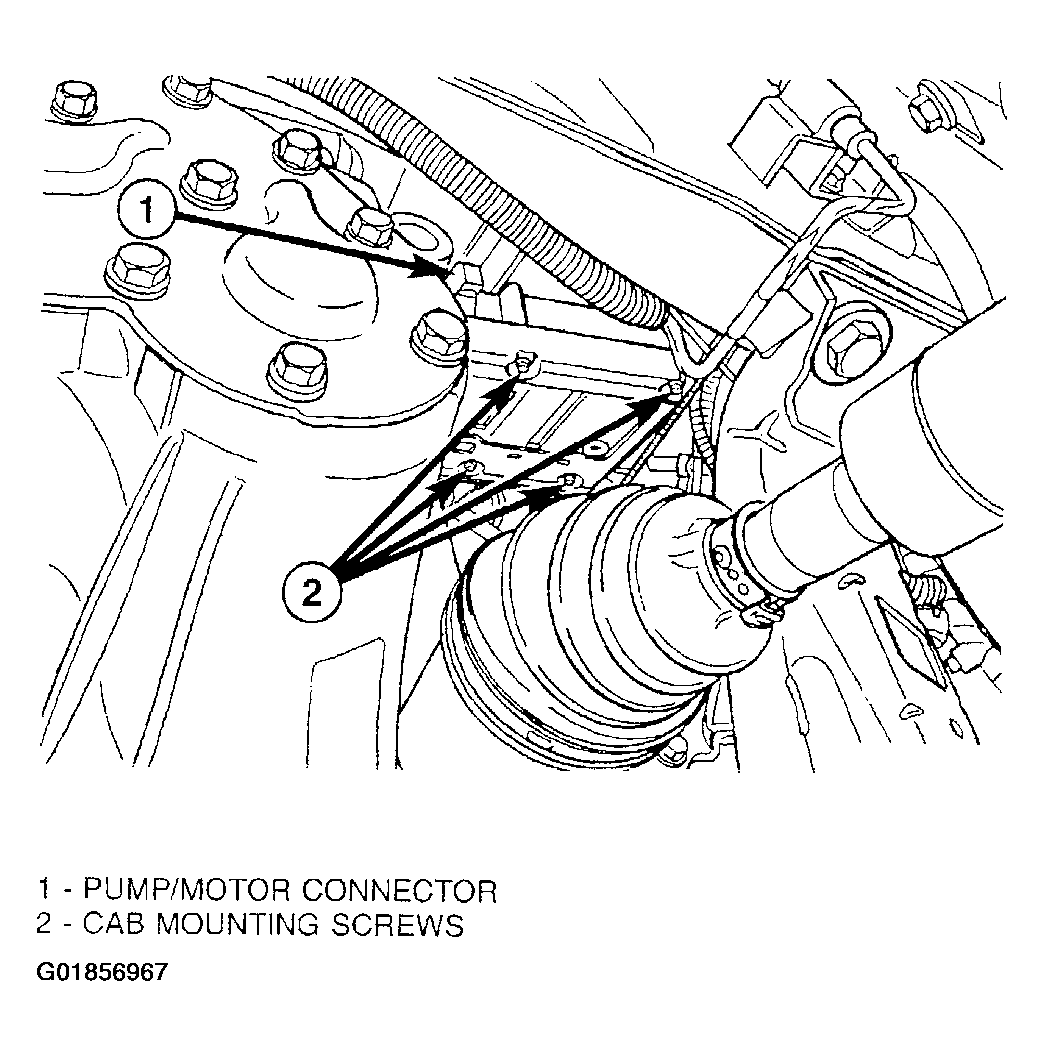

- Disconnect pump/motor connector from CAB.
- Remove four screws securing CAB to HCU half of ICU. Remove CAB from HCU.
- Pull outward on CAB connector lock and disconnect 24-way wiring connector. Remove CAB from vehicle.
