Removal - 1/2 Downstream

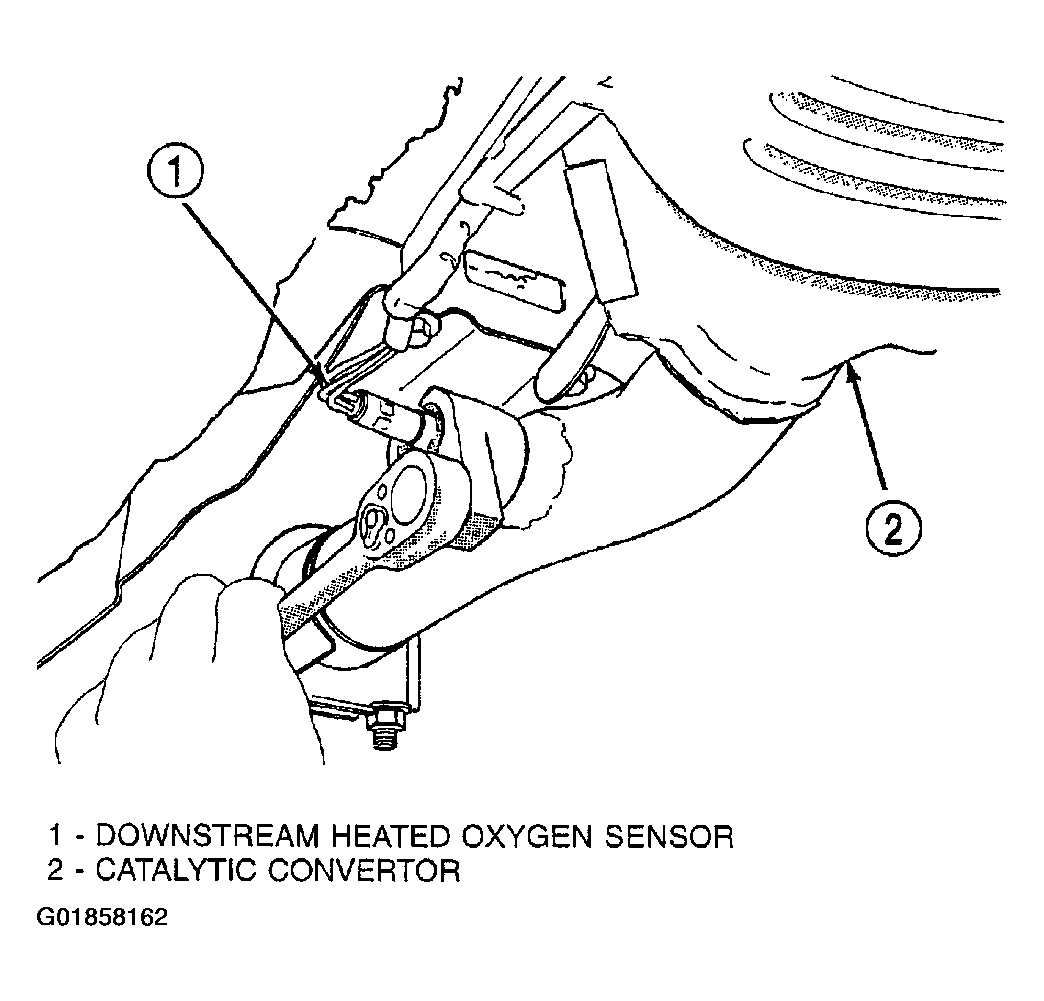

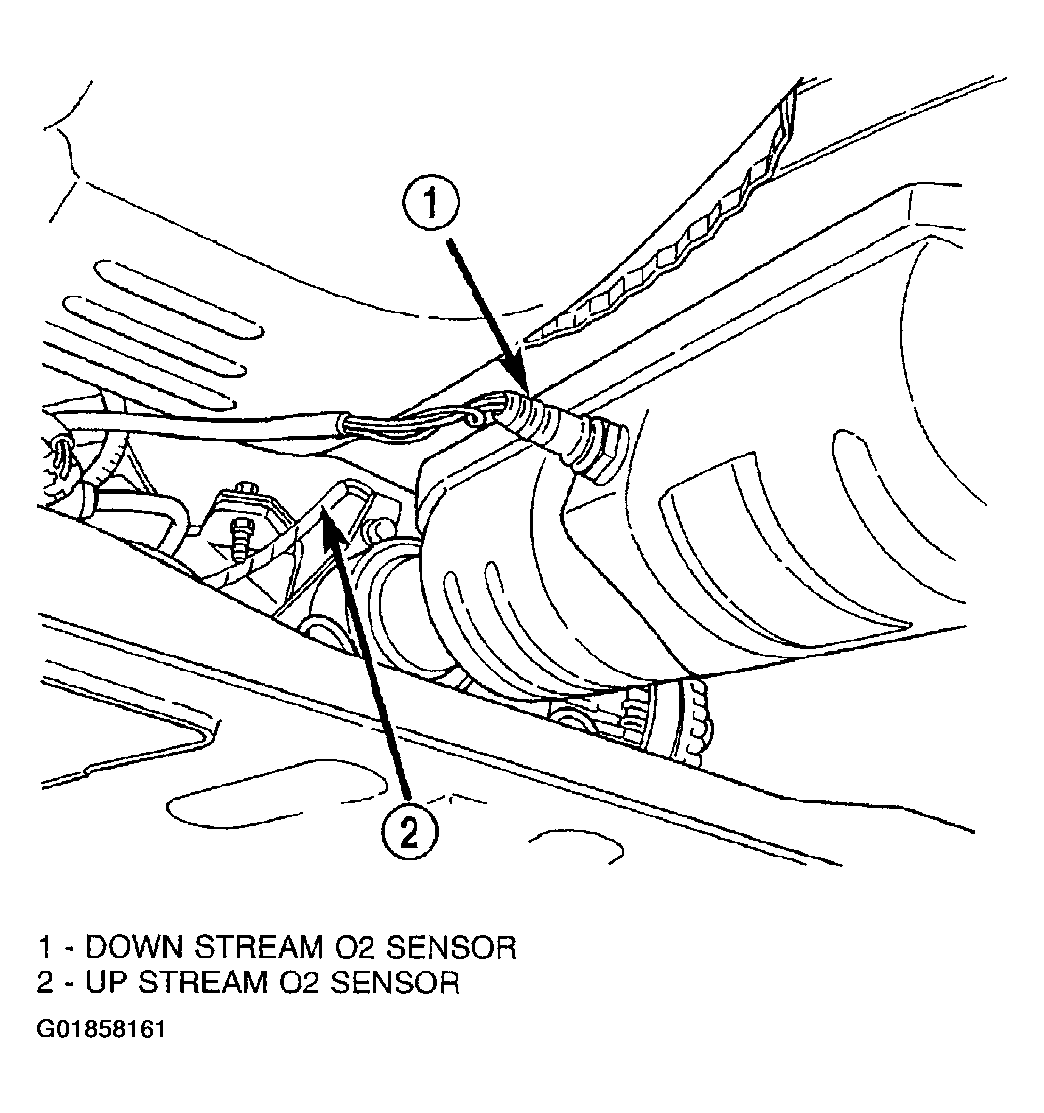

The downstream heated oxygen sensor threads into the exhaust pipe behind the catalytic convertor.
- Remove the air cleaner lid and makeup air hose.
- Remove the negative battery cable.
- Raise vehicle and support.
- Disconnect electrical connector from sensor.
- Disconnect sensor electrical harness from clips along body.
- Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent.
