2004 Chrysler PT Cruiser Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Removal - 1.6L

  1. Remove air cleaner assembly cover.
  2. Disconnect the negative battery cable.
  3. Disconnect the electrical connector for the sensor.

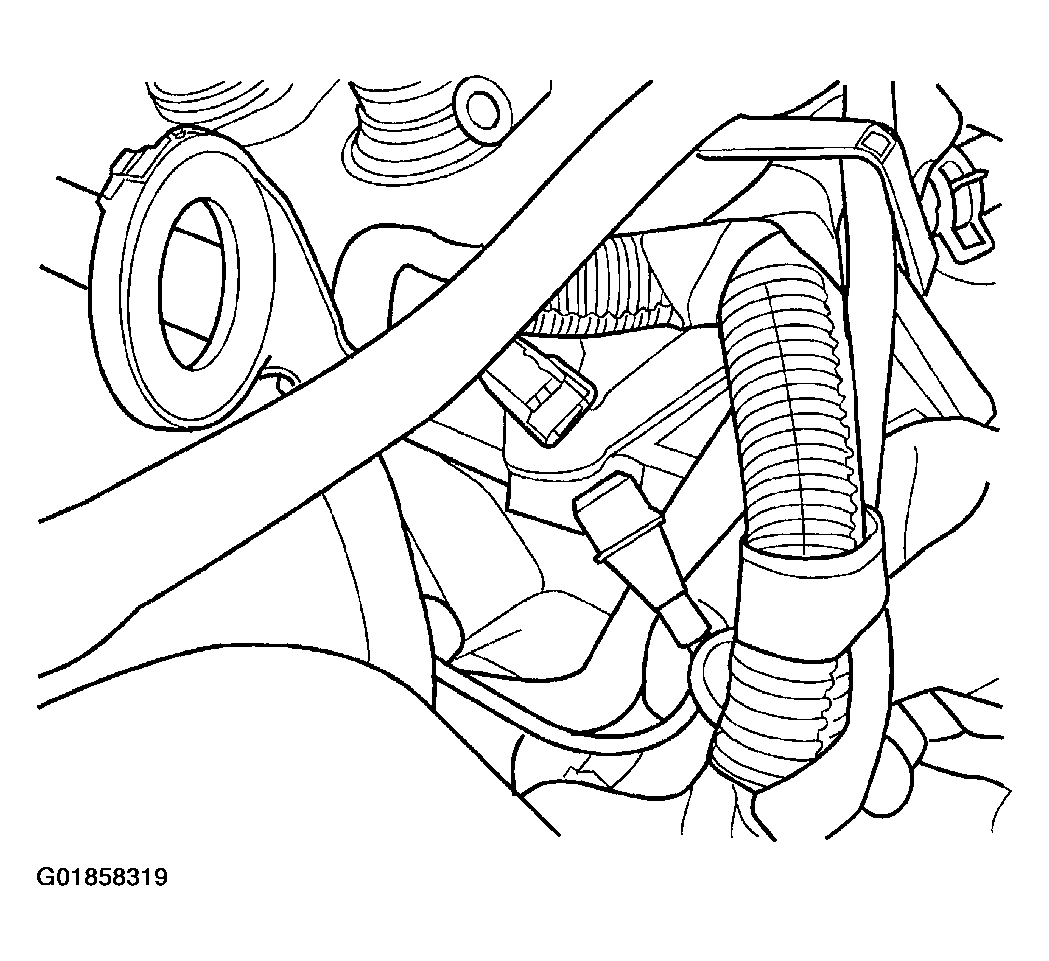

    Fig 1: Identifying Wiring Connector
    G01858319Courtesy of DAIMLERCHRYSLER CORP.
