Removal - 1/2 Downstream - 1.6L

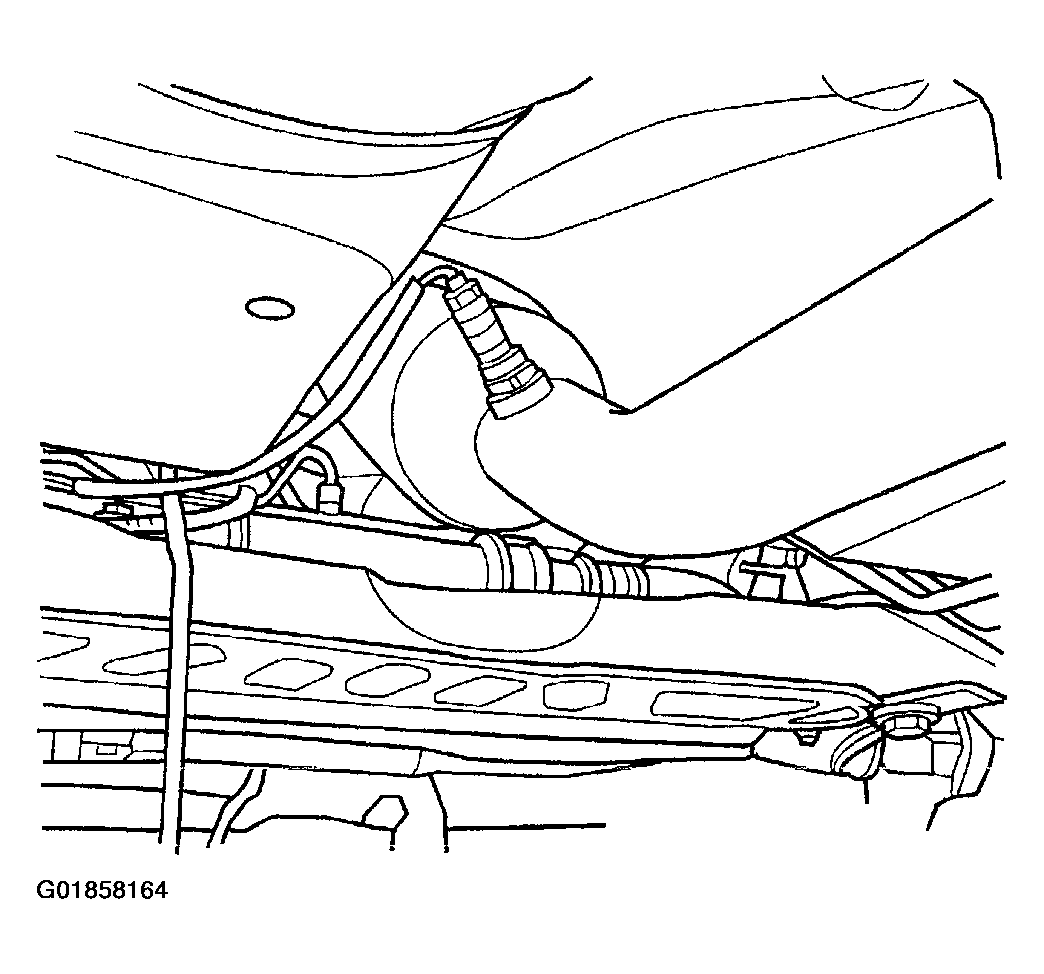

The downstream heated oxygen sensor threads into the exhaust pipe behind the catalytic convertor.
- Remove the air cleaner cover.
- Remove the negative battery cable.
- Raise vehicle and support.
- Disconnect electrical connector from sensor.
- Disconnect sensor electrical harness from clips along body.

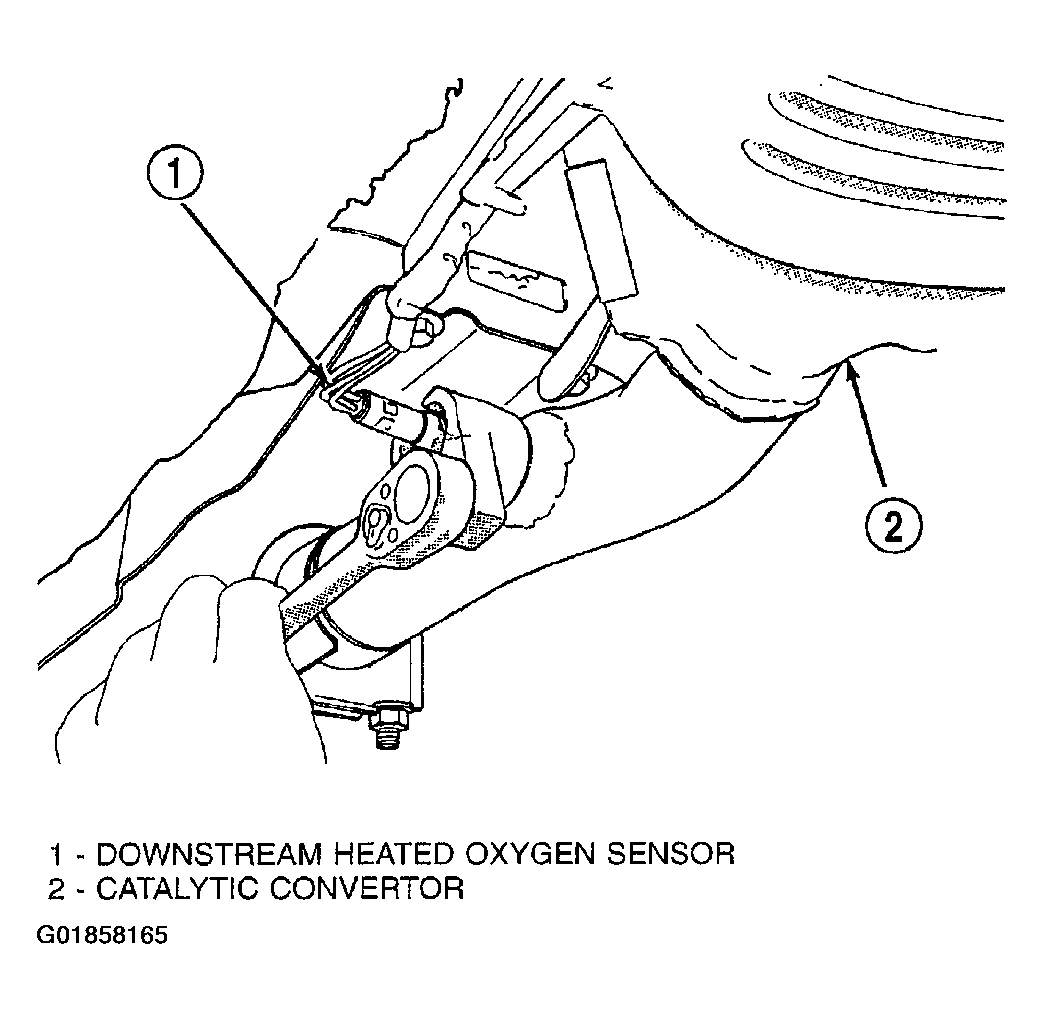

- Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent.
