2004 Chrysler PT Cruiser Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Installation - 2.4L Turbo/2.4L SRT-4

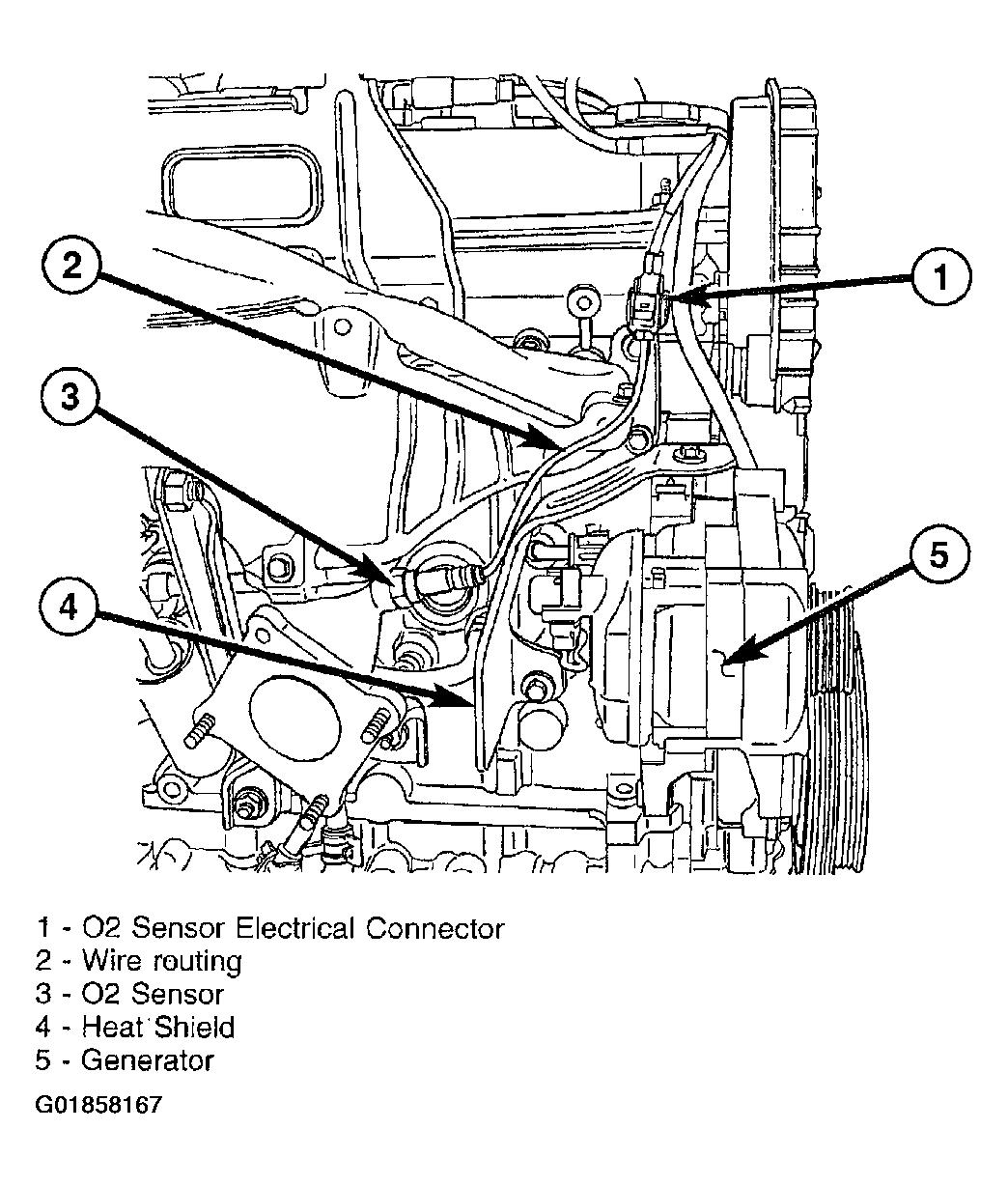

- Install O2 sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent and tighten to N.m 28 (20 ft. lbs.). See Figure.
- Route O2 sensor wire above the heat shield for the generator and away from the exhaust manifold.
- Lower vehicle.
- Connect and lock the O2S connector. It is on the passenger side near the EVAP purge solenoid.
- Connect the negative battery cable.
