2004 Chrysler Intrepid SXTFACTORY OEM SERVICE PROCEDURE

Removal - 2.7L

The camshaft position sensor is mounted in the front of the head.

Disconnect electrical connector from sensor.
Remove camshaft position sensor screw.
Without pulling on the connector, pull the sensor out of the chain case cover.

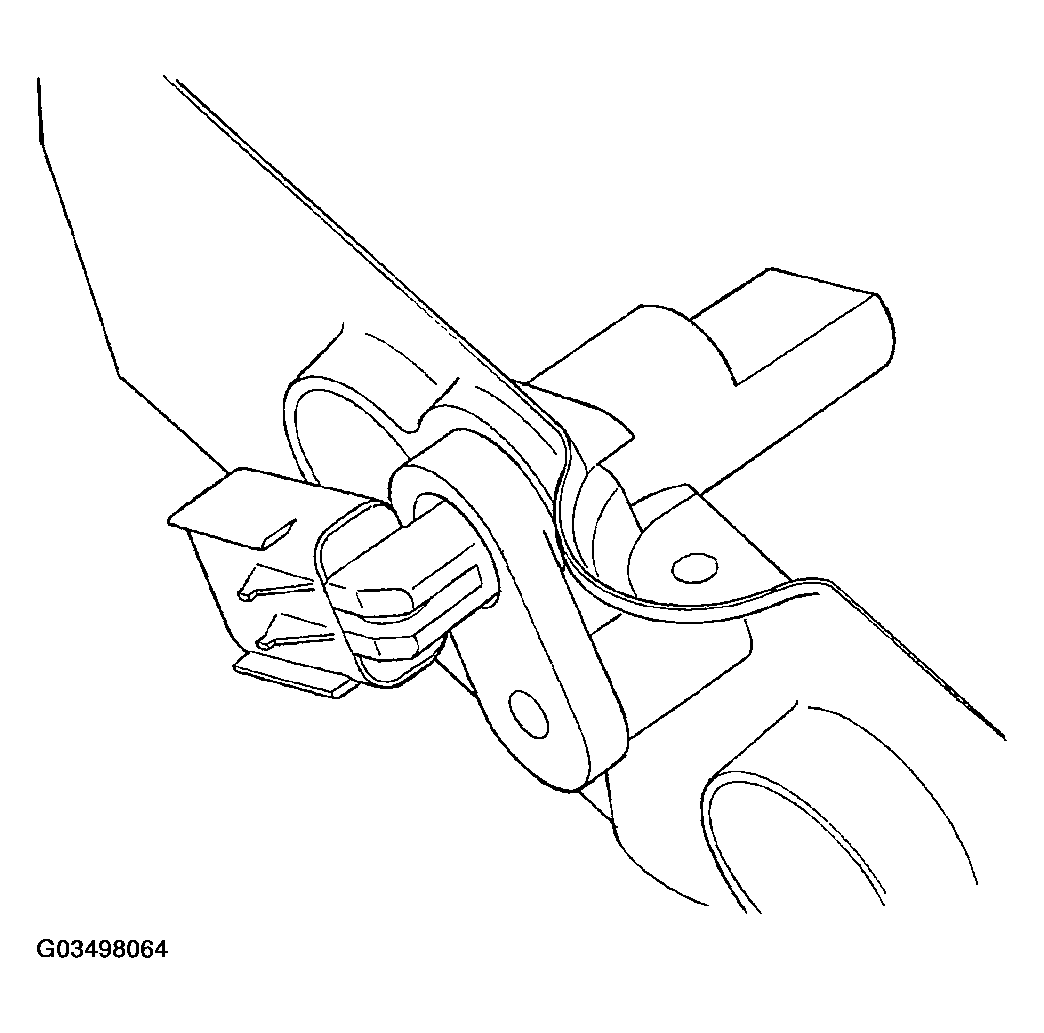

Fig 1: Camshaft Position Sensor 2.7L

Courtesy of DAIMLERCHRYSLER CORP.
