2004 Chrysler Intrepid SXTFACTORY OEM SERVICE PROCEDURE
Fuel Tank: Removal
- Release fuel pressure. Refer to STANDARD PROCEDURE - FUEL SYSTEM PRESSURE RELEASE PROCEDURE .

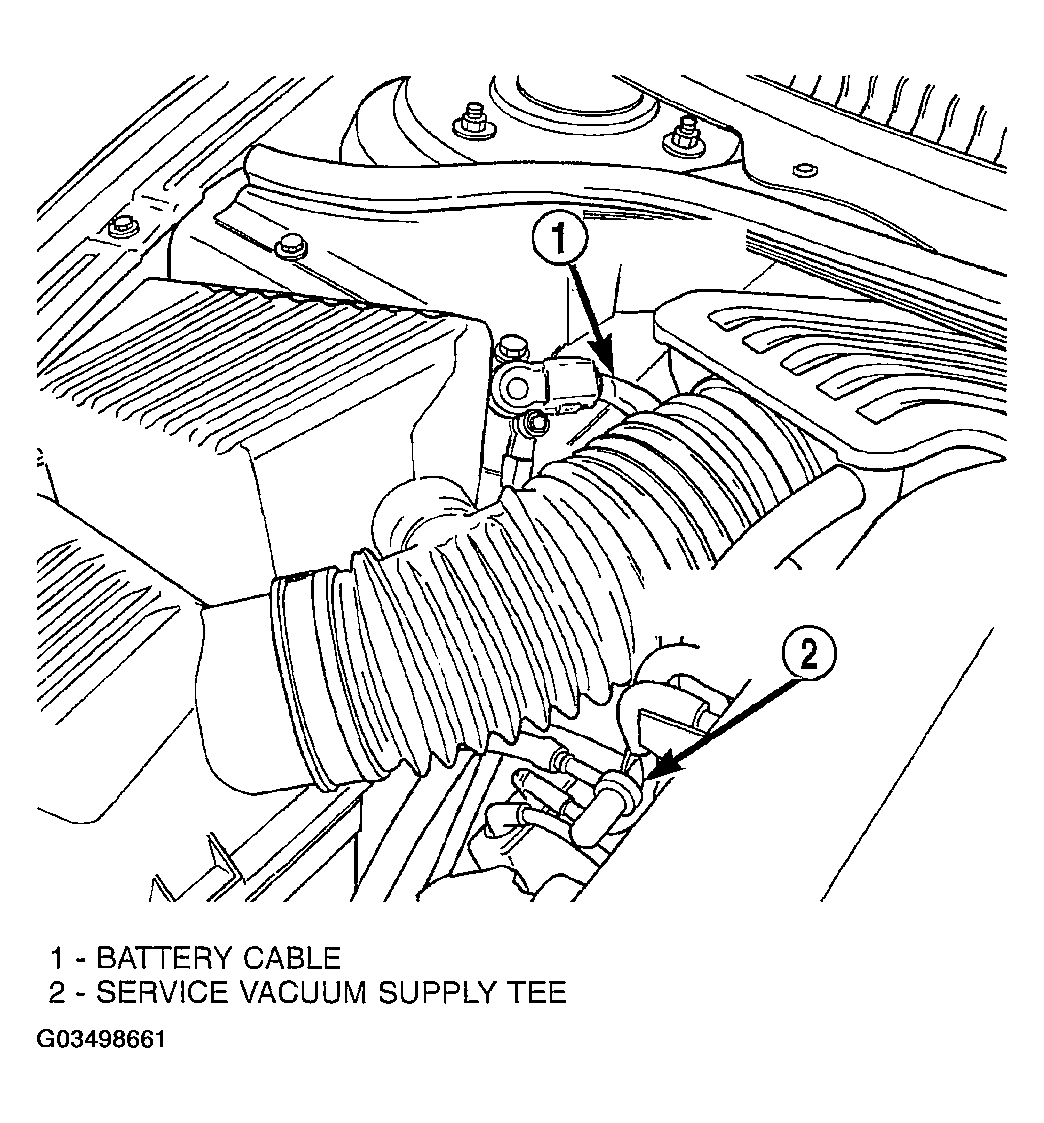

- Disconnect battery cable (Fig 1).
- Remove rear seat, refer to the SEATS for more information.

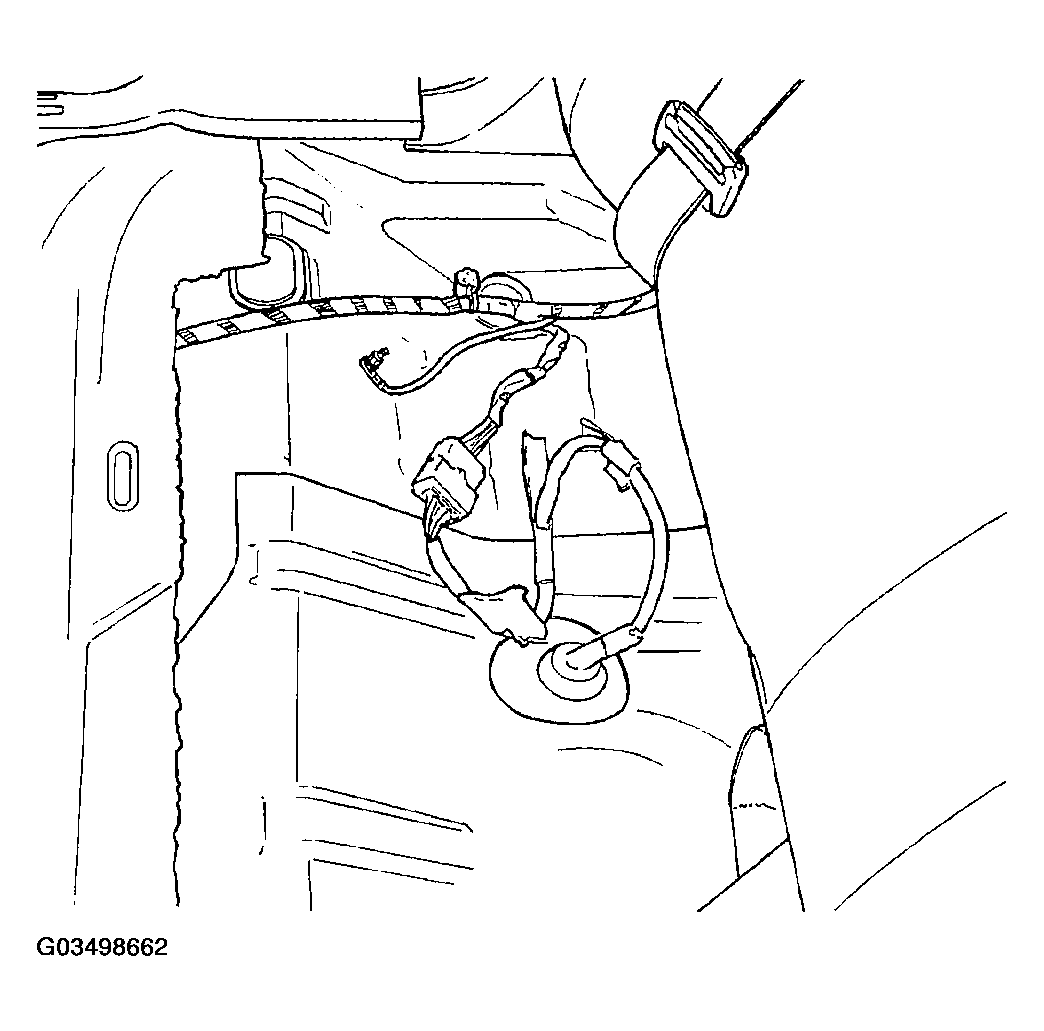

- Disconnect fuel pump electrical connector (Fig 2).
- Raise vehicle and support.NOTE: To drain fuel tank it is best to have less than 1/2 a tank of fuel.

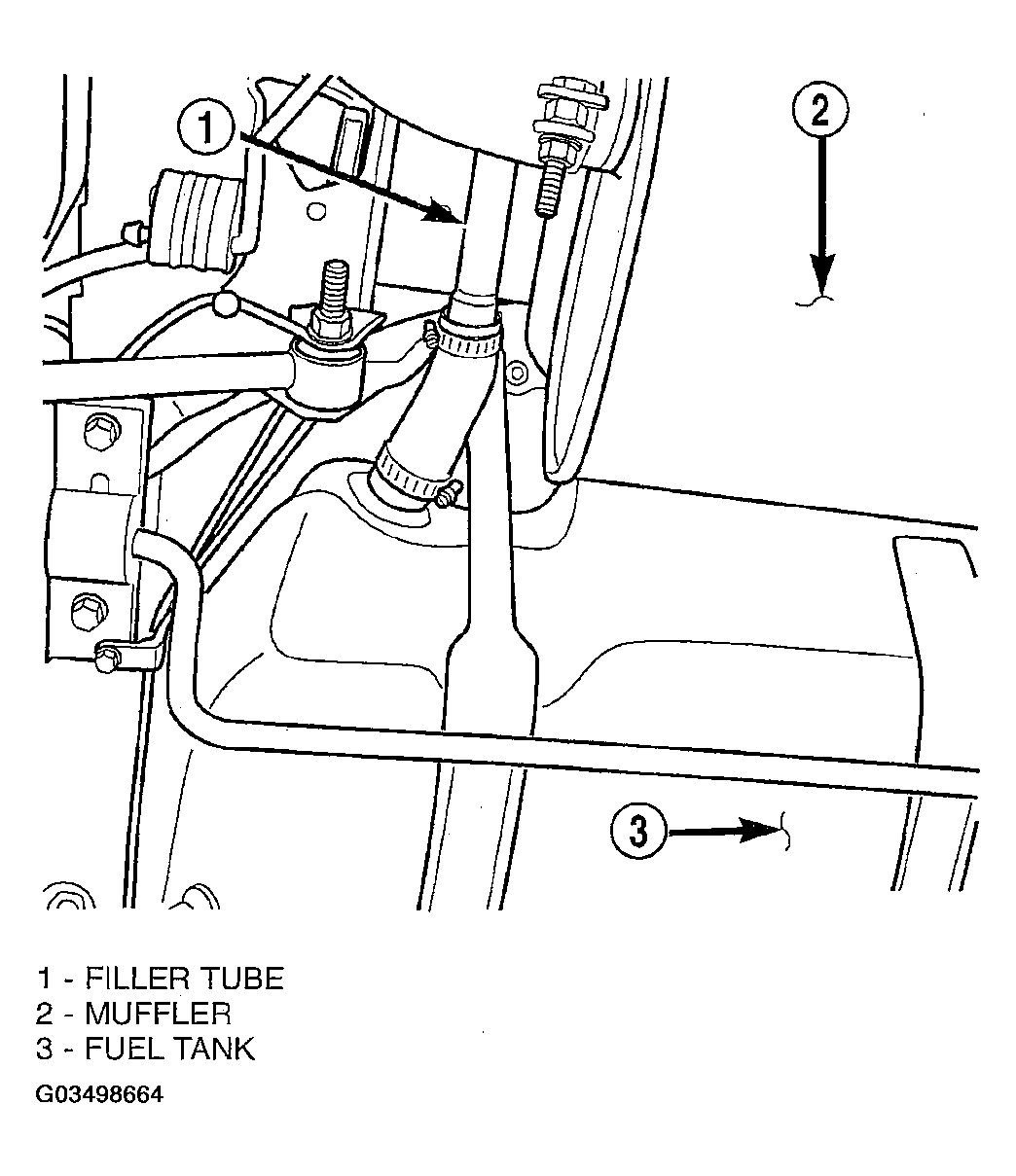

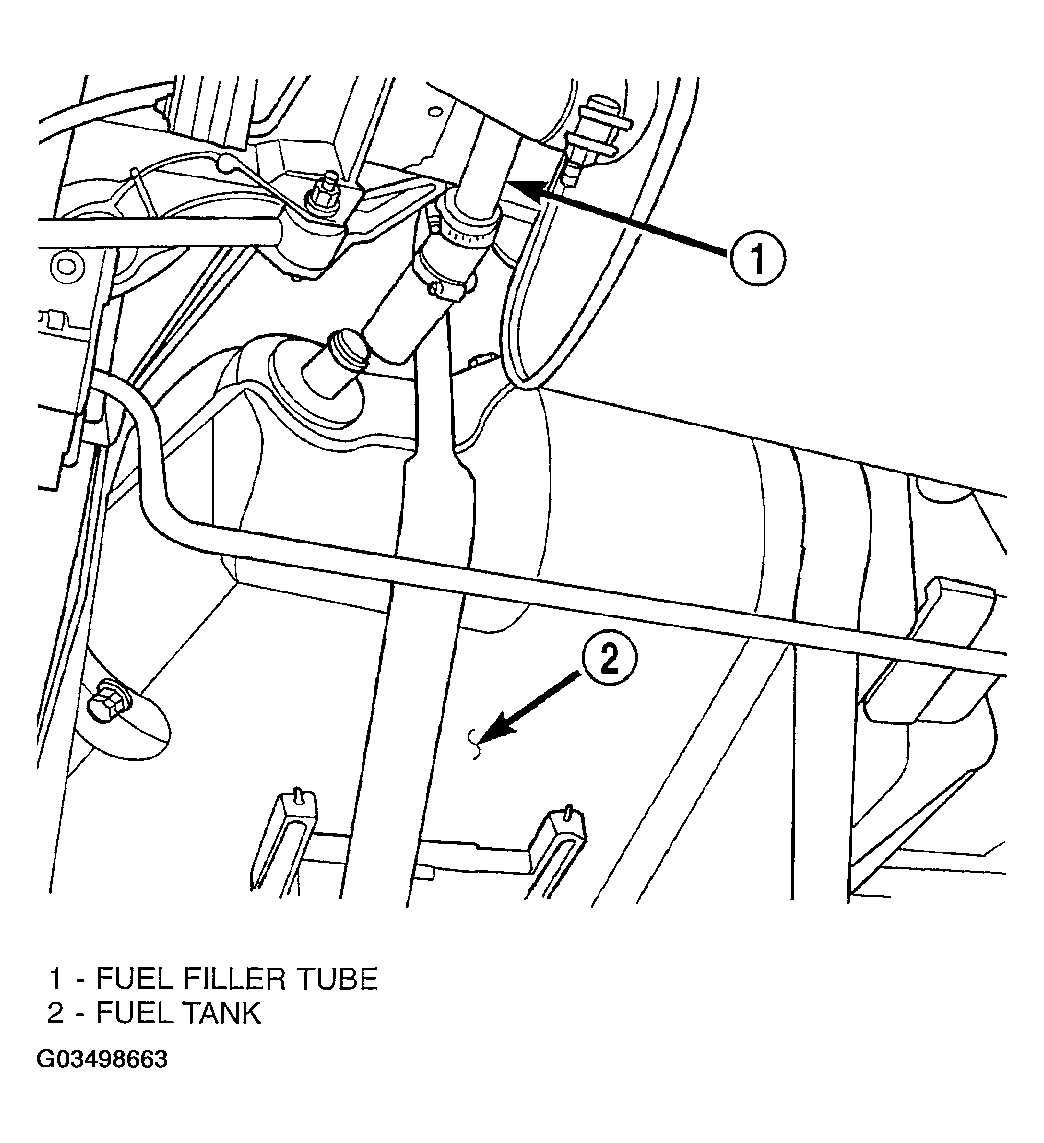

- To drain fuel tank, place container under fuel filler tube at fuel tank. Loosen and remove fuel filler tube from fuel tank (Fig 3). Stick siphon hose into tank at fuel filler tube connection, and drain fuel tank.
- Loosen the rear stabilizer bar brackets from a body. Swing stabilizer bar toward rear of vehicle (Fig 4) and (Fig 5).
