2004 Chrysler Intrepid SXTFACTORY OEM SERVICE PROCEDURE

Fuel Level Sending Unit / Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE .

Depress the retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector (Fig 1).

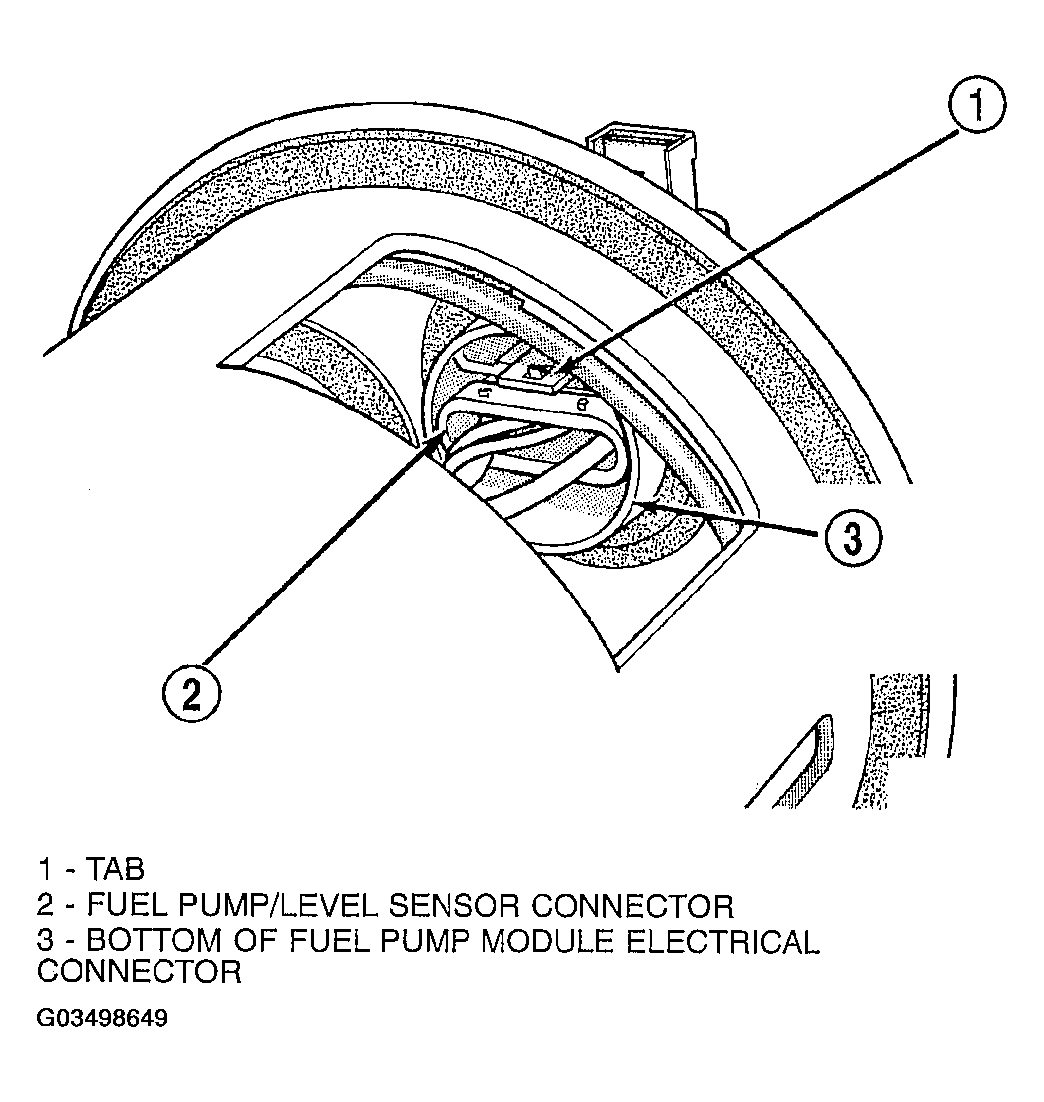

Fig 1: Fuel Pump/Level Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Remove wire terminal retaining clip from connector (Fig 2). Note the location of terminals for the level sensor wires (Fig 3).

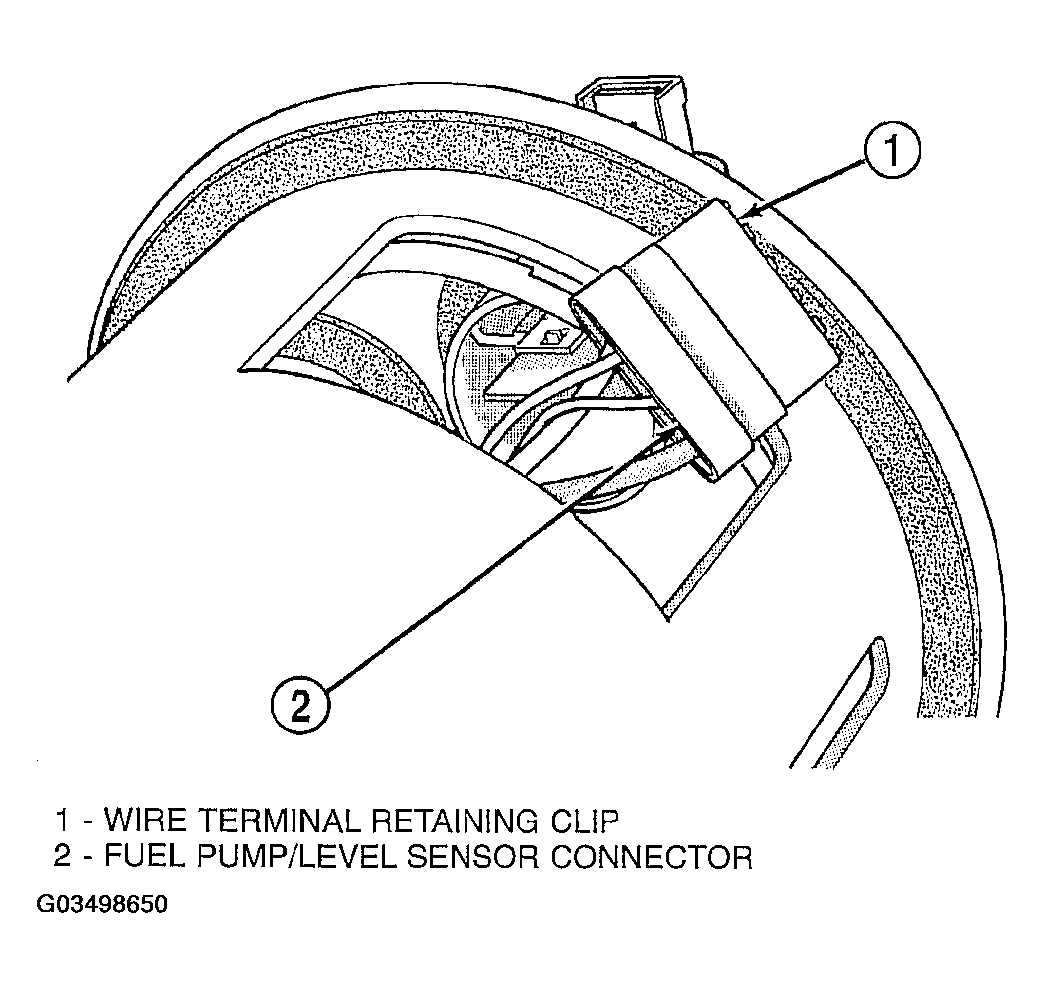

Fig 2: Wire Terminal Retaining Clip
Courtesy of DAIMLERCHRYSLER CORP.
