ICU (Integrated Control Unit): Description

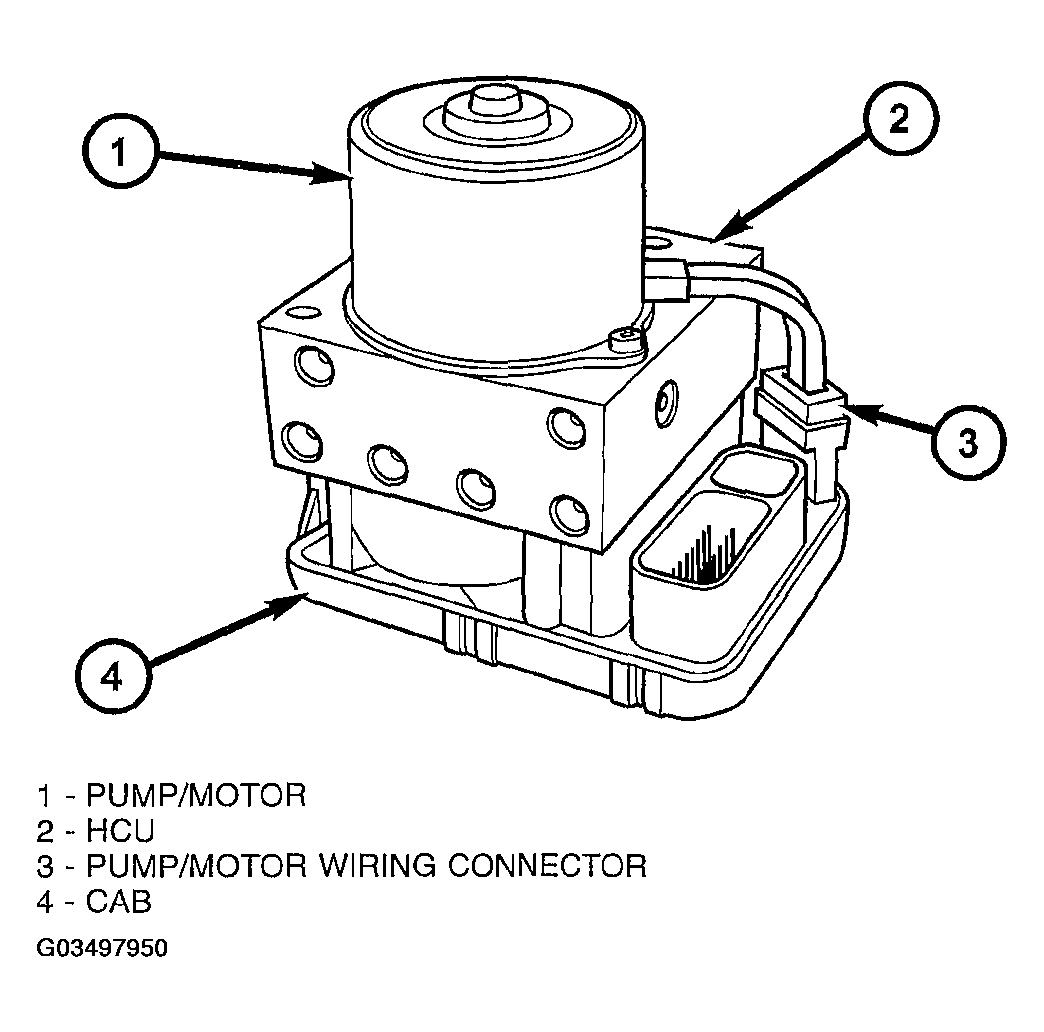

The hydraulic control unit (HCU) and the controller antilock brake (CAB) used with this antilock brake system are combined (integrated) into one unit, which is called the integrated control unit (ICU) (Fig 1 ). The ICU is located in front of the driver's side front tire (Fig 2 ), behind the inner fender splash shield.
