2004 Chrysler Intrepid SXTFACTORY OEM SERVICE PROCEDURE

Window Motor: Removal

  1. Move the window to the full-up position, if possible.
  2. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
  3. Remove door trim panel. (Refer to TRIM PANEL ) or (Refer to TRIM PANEL ).
  4. Remove window regulator. (Refer to WINDOW REGULATOR ) or (Refer to DOOR ).
    WARNING: FAILURE TO CLAMP THE SECTOR GEAR TO THE MOUNTING PLATE WHEN REMOVING THE MOTOR CAN RESULT IN INJURY.
  5. Disconnect wiring connector from motor.
  6. Secure the sector gear and mounting plate with a C clamp or similar clamping tool. This will prevent a sudden and forceful movement of the regulator when the motor is removed.
  7. Remove three mounting screws that hold motor gearbox to regulator (Fig 1).

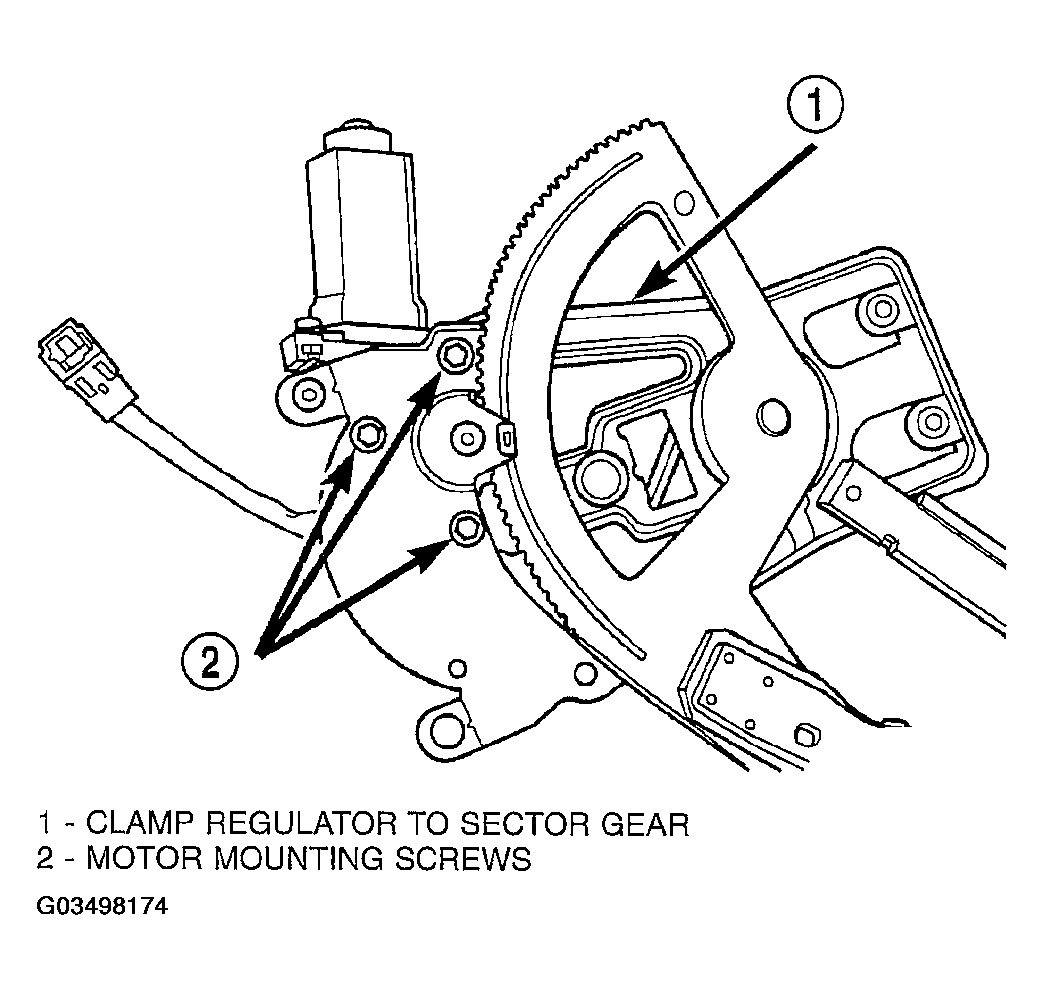

    Fig 1: Motor Removal
    G03498174Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove motor from regulator.
