2004 Chrysler Crossfire StandardFACTORY OEM SERVICE PROCEDURE
5. O2 Heater Control Circuit Open
Turn the ignition off.
Disconnect the PCM harness connectors.
NOTE:
Check connectors - Clean/repair as necessary.

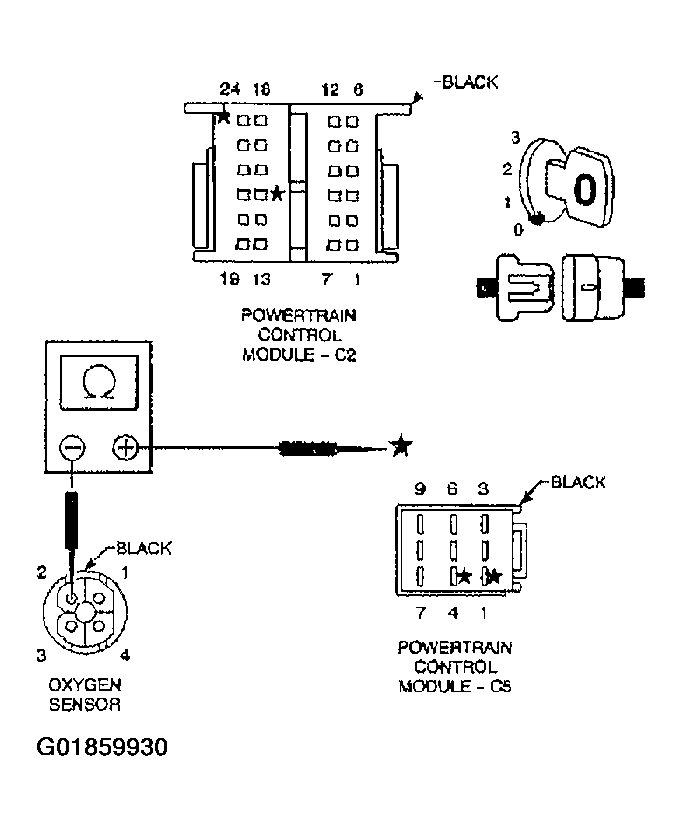

Measure the resistance of the O2 Heater Control circuit from the O2 Sensor harness connector to the PCM harness connector.
Is the resistance below 5.0 ohms?
- Yes >> Replace and program the Powertrain Control Module. See ELECTRONIC CONTROL MODULES article.
- No >> Repair the O2 Heater Control circuit for an open.
