2004 Chrysler Crossfire StandardFACTORY OEM SERVICE PROCEDURE
Exhaust Gas RECIRCULATION: Valve: Installation
- Position new gasket between the valve and cylinder head.

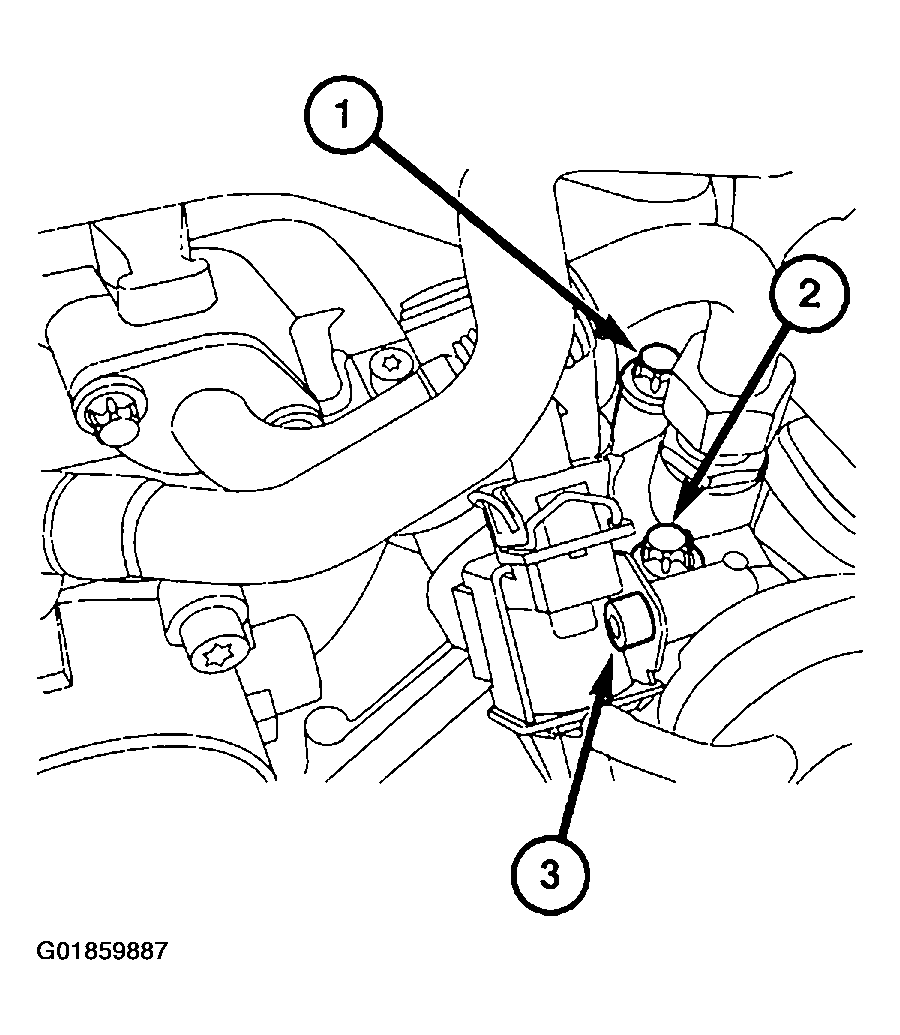

- Loosely install valve front bolt (1) to cylinder head, do not tighten bolt.
- Position solenoid to valve and loosely install solenoid (3) to valve bolt.
- Loosely install valve rear bolt (2) to cylinder head, do not tighten bolt.
- Loosely install the EGR tube flange nut (2) to valve.

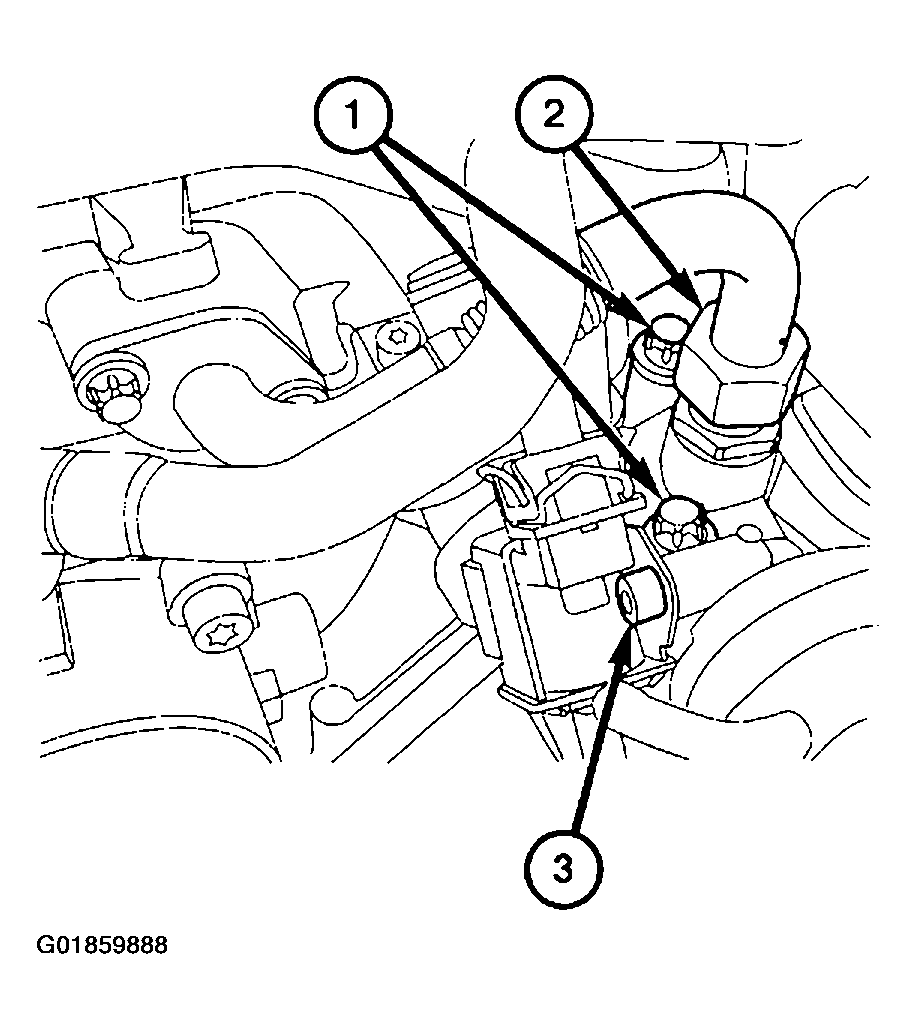

- Tighten the valve to cylinder head bolts (1) to 31 N.m (23 ft. lbs.).
- Tighten the flange nut (2) to 11 N.m (95 in. lbs.).
- Tighten the solenoid to valve bolt (3) to 11 N.m (95 in. lbs.).

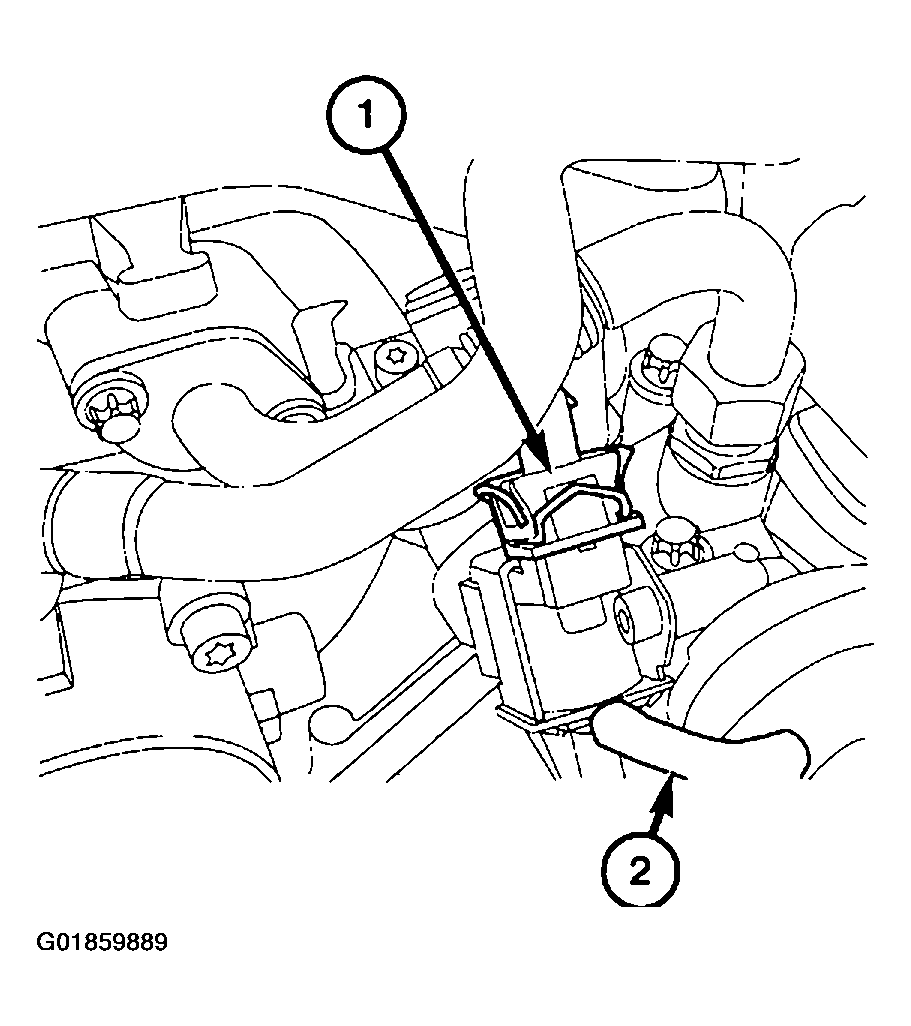

- Connect the solenoid harness connector (1).
- Connect the vacuum hose (2).
- Install the air cleaner housing.
- Connect the negative battery cable.
