2004 Chrysler Crossfire Standard
Map Sensor: Removal
2004 Chrysler Crossfire StandardSECTION Removal
- Disconnect the negative battery cable.
- Remove the air cleaner housing. See 3.2L V6 article.
- Disconnect the Manifold Absolute Pressure (MAP) harness connector.

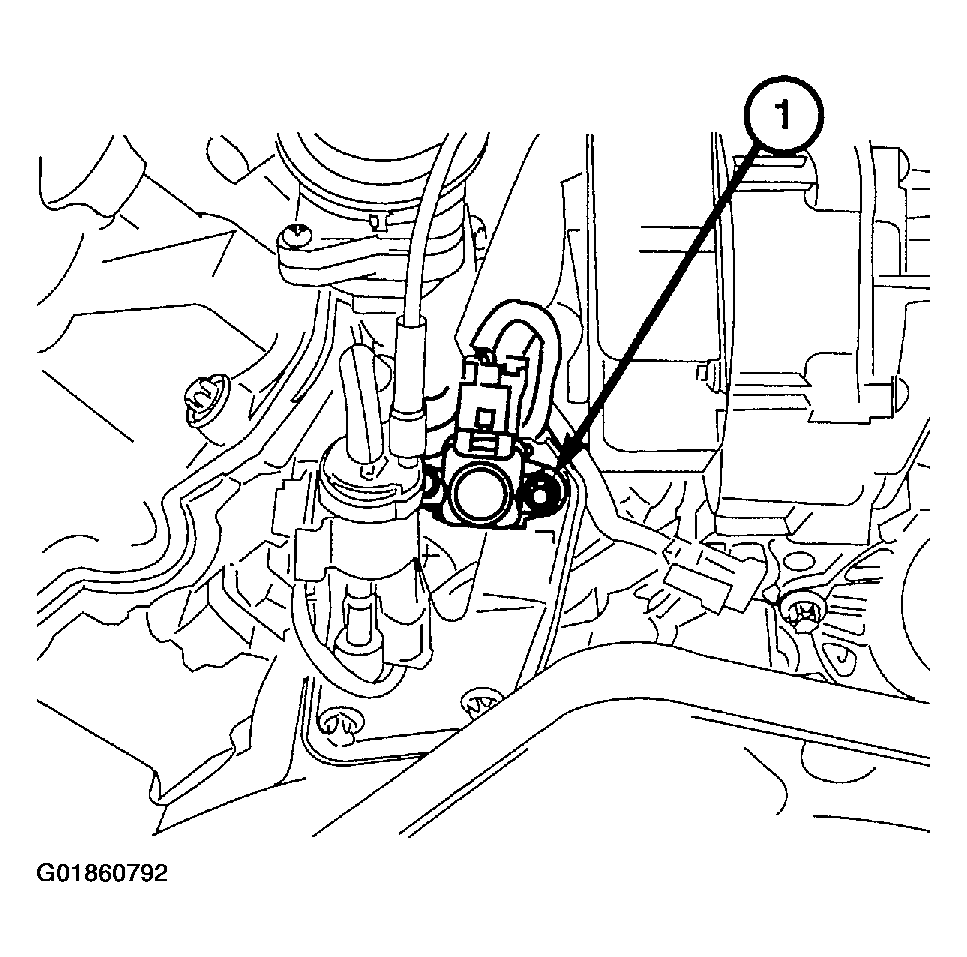

- Remove the retaining bolt (1).
- Remove the (MAP) sensor.
