Cold Cranking Test
For complete wiring diagrams, see WIRING DIAGRAMS . The battery must be fully-charged and load-tested before proceeding.

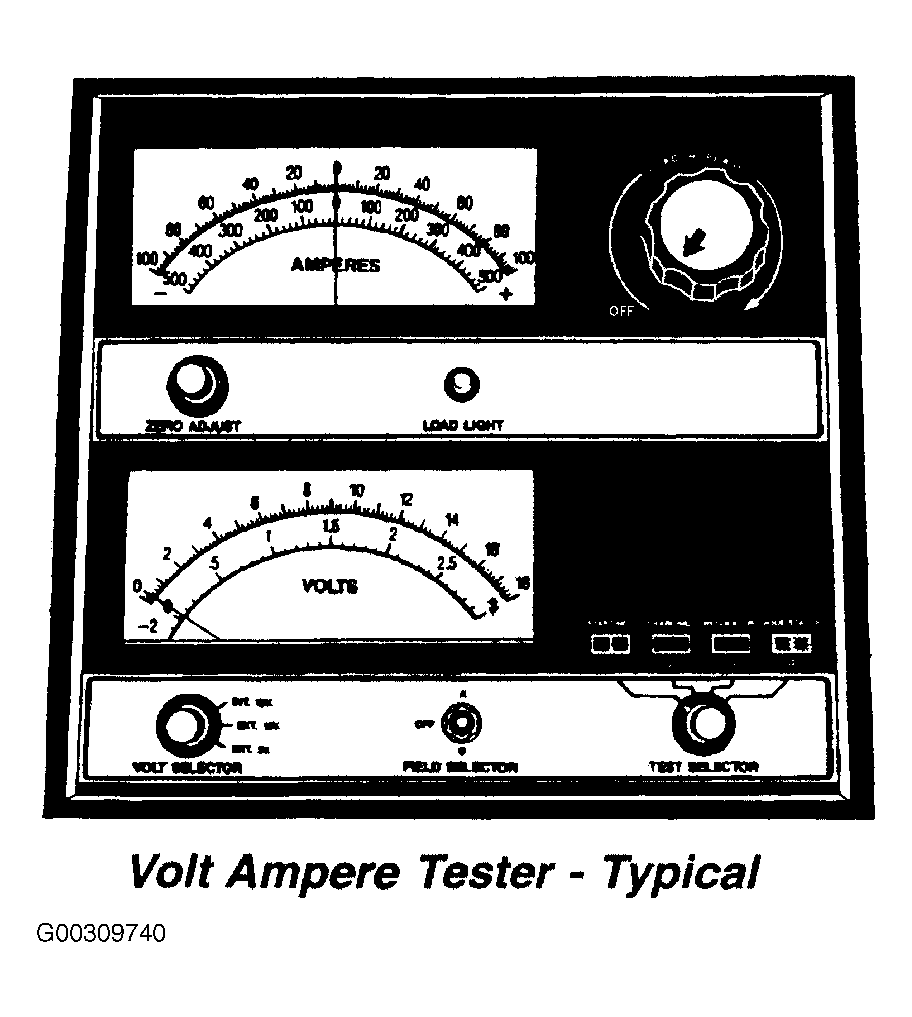

- Connect a suitable volt-ampere tester (3) to the battery terminals (1, 2). See the instructions provided by the manufacturer of the volt-ampere tester being used. See Fig 1
- Fully engage the parking brake.
- Place the automatic transmission gearshift selector lever in the Park position or place the manual transmission gearshift selector in the Neutral position.
- Verify that all lamps and accessories are turned off.
- Prevent the engine from starting.
- Rotate and hold the ignition switch in the Start position. Note the cranking voltage and current (amperage) draw readings shown on the volt-ampere tester.
- If the voltage reads below 9.6 volts, see STARTER MOTOR . If the starter motor is OK, see appropriate article in ENGINES. If the starter motor is not OK, replace the faulty starter motor.
- If the voltage reads above 9.6 volts and the current (amperage) draw reads below specifications, see FEED CIRCUIT TEST .
- If the voltage reads 12.5 volts or greater and the starter motor does not turn, see CONTROL CIRCUIT TESTING .
- If the voltage reads 12.5 volts or greater and the starter motor turns very slowly, see FEED CIRCUIT TEST .
