2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
4. O2 Heater Fused Engine Control Relay Output Circuit Open
Turn the ignition on.
Measure the voltage of the O2 Heater Fused Engine Control Relay Output circuit at the O2 Sensor harness connector.

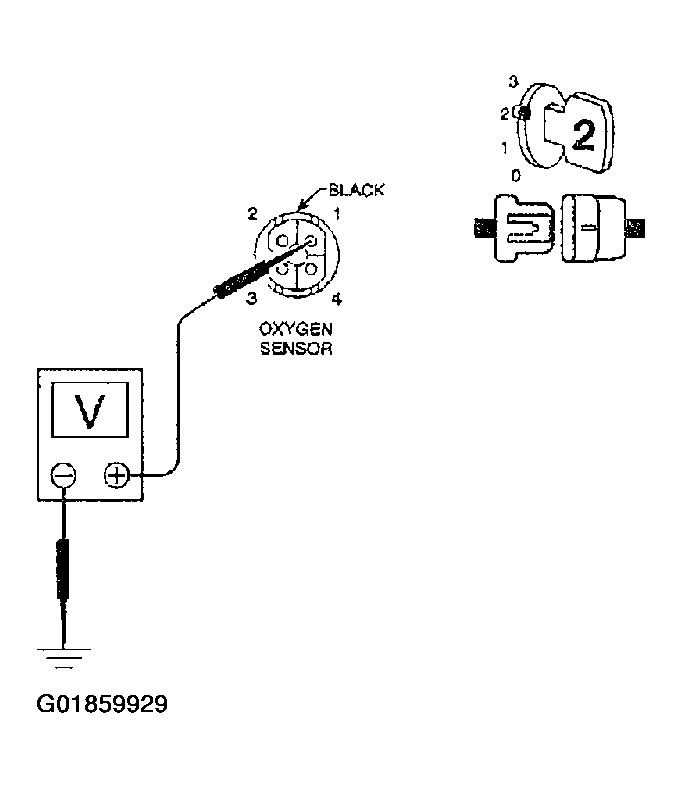

Fig 1: Measuring Voltage Of O2 Heater Fused Engine Control Relay Output Circuit At O2 Sensor Harness Connector
Is the voltage above 10 volts?
- Yes >> Go To 5
- No >> Repair the O2 Heater Fused Engine Control Relay Output circuit for an open.
