2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
1. Pcm
Turn the ignition off.
Disconnect the PCM C4 harness connector.
NOTE:
Check connectors - Clean/repair as necessary.
Turn the ignition on.

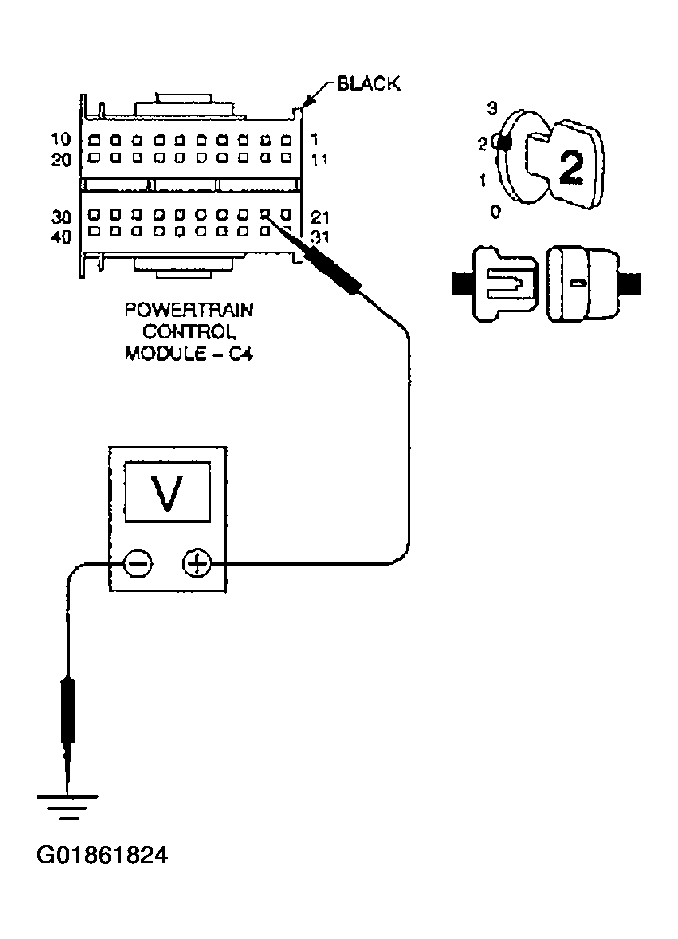

Measure the voltage of the Speed Control Off Signal circuit at the PCM C4 harness connector.
Is the voltage above 10 volts?
- Yes >> Replace and program the Powertrain Control Module. See ELECTRONIC CONTROL MODULES article.
- No >> Go To 2
