2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Exhaust Gas RECIRCULATION: Valve: Removal
- Disconnect the negative battery cable.
- Remove the air cleaner housing.

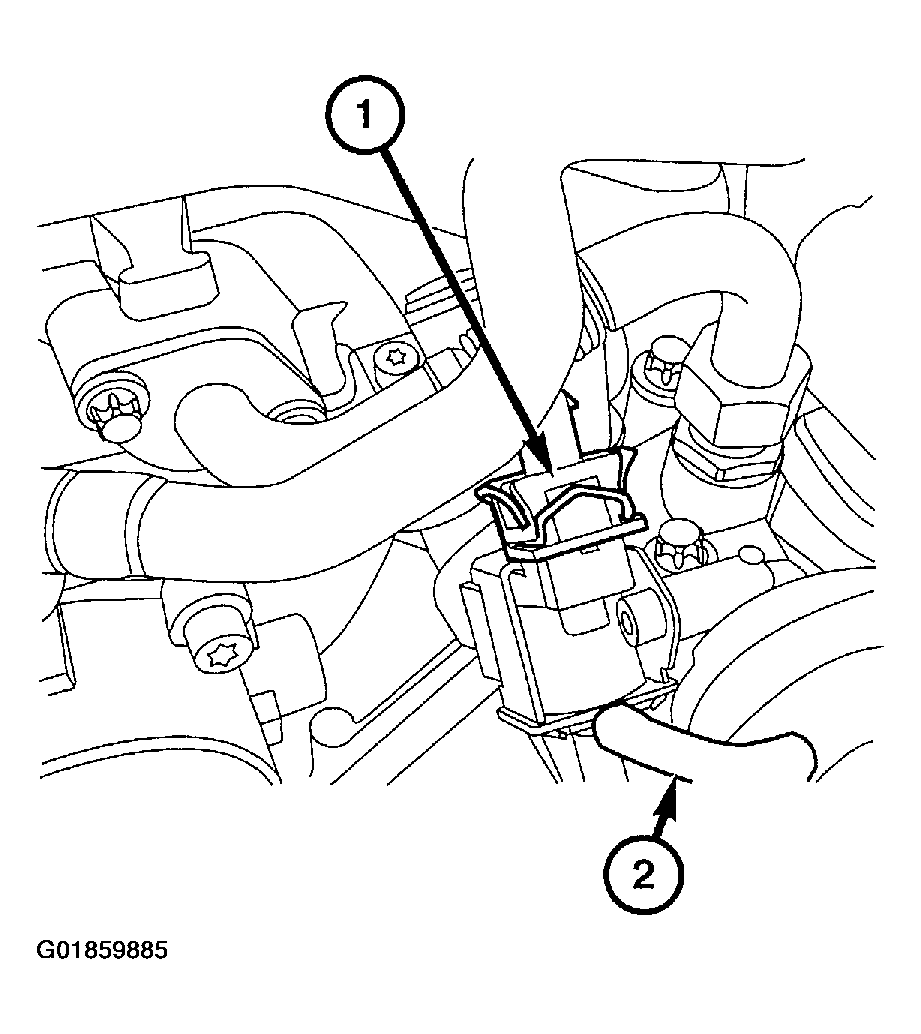

- Disconnect the solenoid harness connector (1).
- Disconnect the solenoid to valve vacuum line (2).

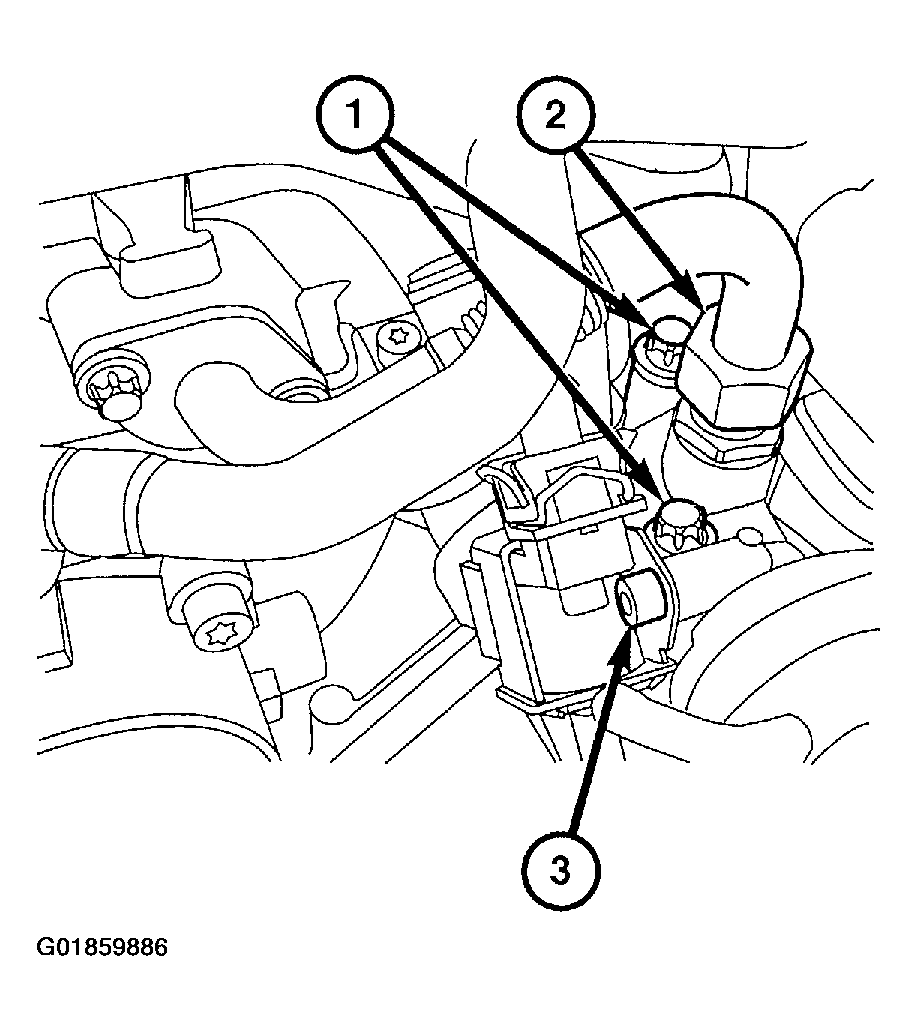

- Remove the EGR tube flange nut (2) at valve.
- Remove the solenoid to valve mounting bolt (3).
- Remove the valve to cylinder head mounting bolts (1).
- Clean the gasket surfaces. Discard the old gasket. Clean the EGR passages as necessary.
