2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Exhaust Gas RECIRCULATION: Tube: Removal
- Remove the air cleaner housing.

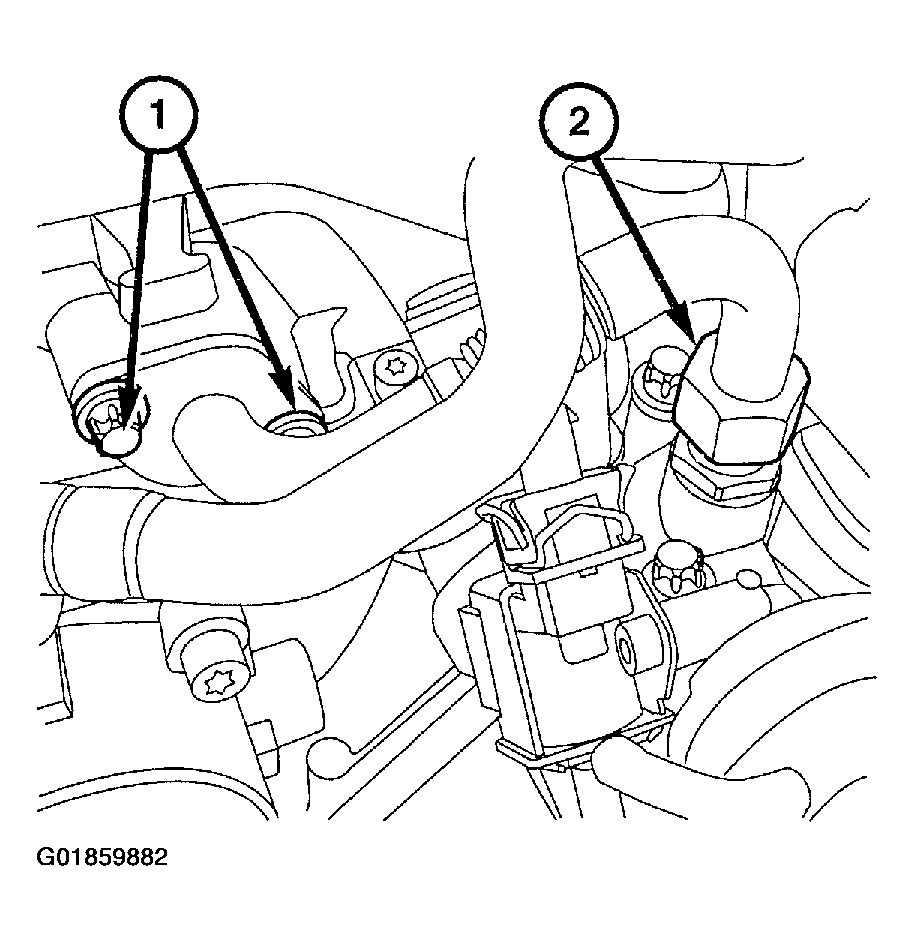

- Remove the EGR tube mounting bolts (1) at intake manifold.
- Remove the EGR tube flange nut (2) at EGR valve.
- Remove the EGR tube.
- Clean the gasket surfaces on the EGR tube and intake manifold. Discard old gasket. Note that any loose dirt can lodge between the tube and manifold and cause vacuum leakage that will give a rough idle and reduced manifold vacuum.
