2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE

Exhaust Gas RECIRCULATION: Solenoid: Removal

Disconnect the negative battery cable.
Remove the air cleaner housing.
Disconnect the solenoid harness connector (1).

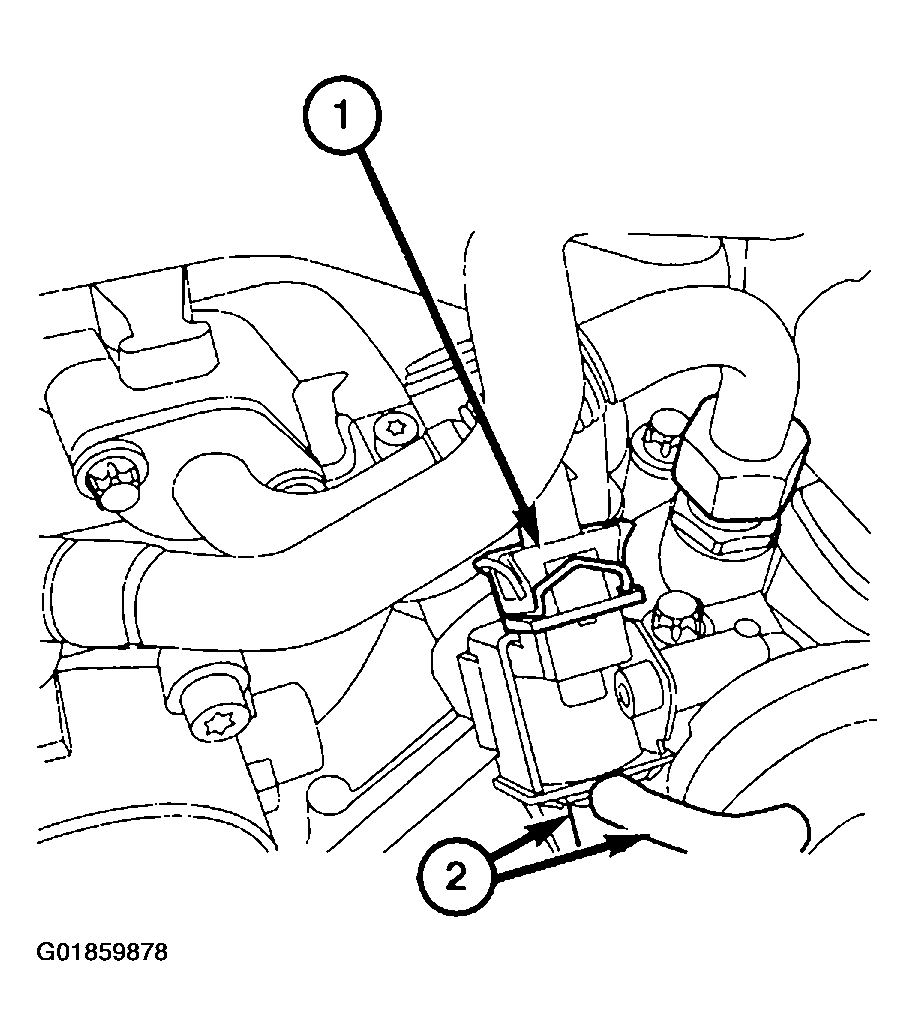

Fig 1: Disconnecting Solenoid Harness Connector & Vacuum Lines
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the solenoid vacuum lines (2).
Remove the solenoid to valve mounting bolt (2).
Remove the valve to cylinder head mounting bolt (1).

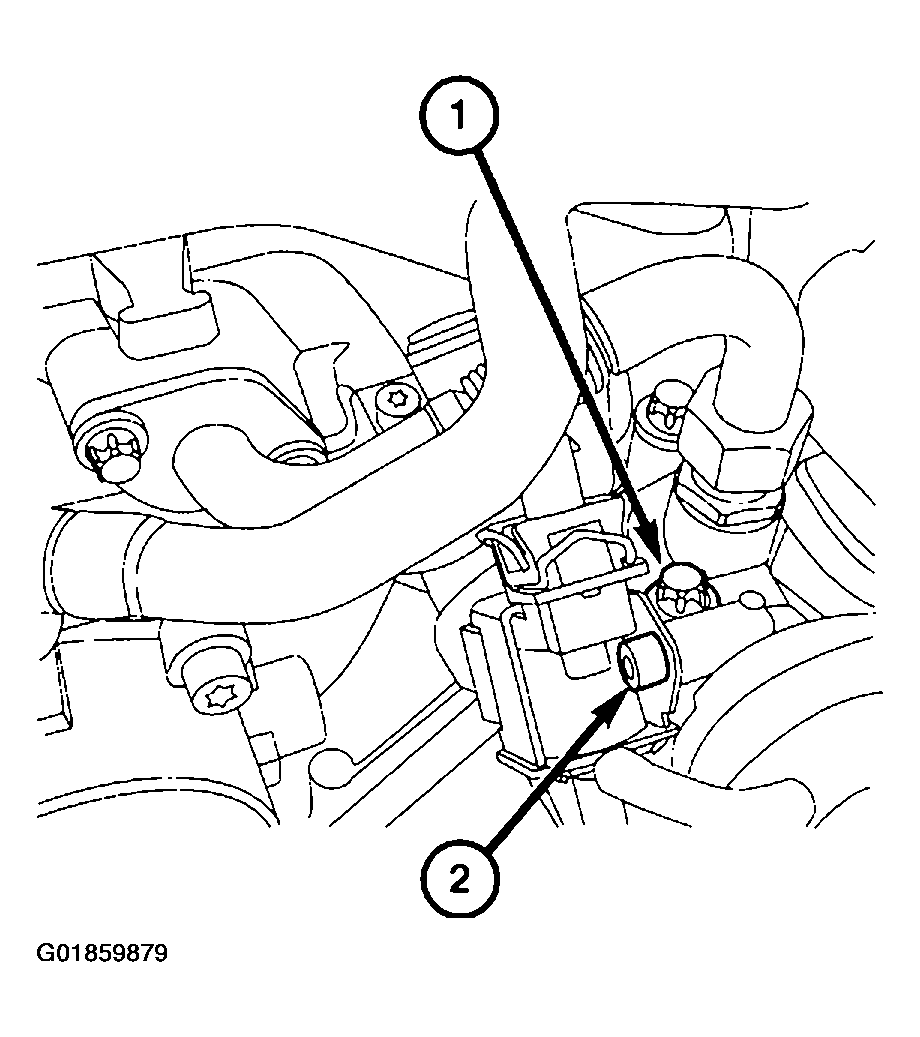

Fig 2: Removing Solenoid To Valve & Valve To Cylinder Head Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Clean the gasket surfaces. Discard the old gasket. Clean the EGR passages as necessary.

Chapter Navigation

Return to Chapter: Solenoid
