2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE

Exhaust Gas RECIRCULATION: Solenoid: Installation

Position the solenoid to valve and loosely install solenoid to valve bolt (2).

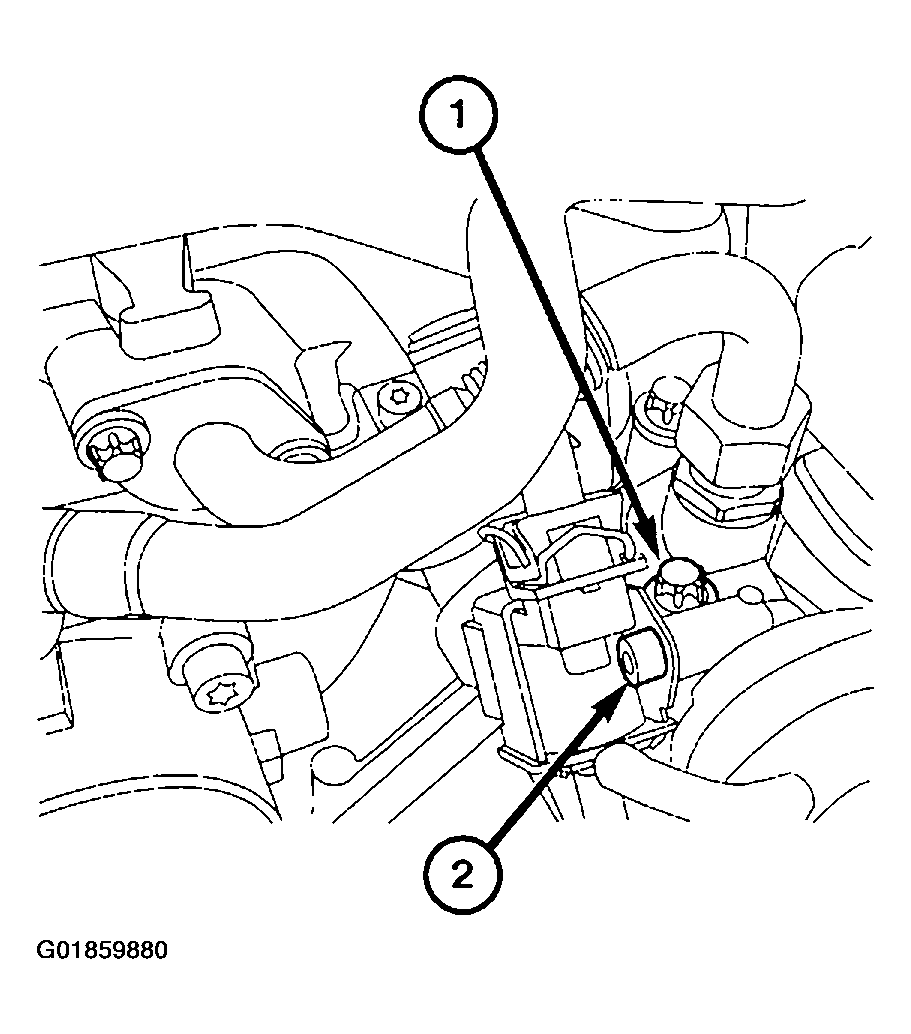

Fig 1: Installing Solenoid
Courtesy of DAIMLERCHRYSLER CORP.
Install the valve bolt (1) to cylinder head and tighten to 31 N.m (23 ft. lbs.).
Tighten the solenoid to valve bolt (2) to 11 N.m (95 in. lbs.).
Connect the vacuum hoses (2).

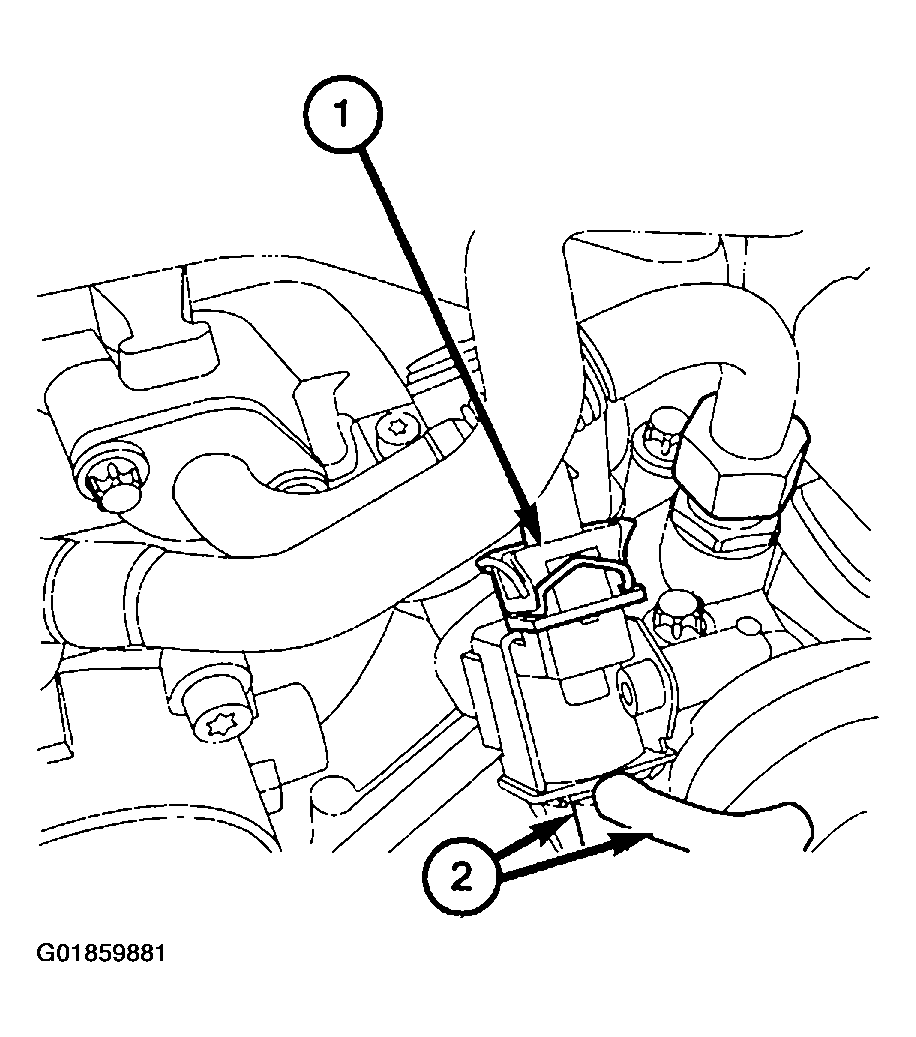

Fig 2: Connecting Vacuum Hoses & Solenoid Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Connect the EGR solenoid harness connector (1).
Install the air cleaner housing.
Connect the negative battery cable.
