2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE

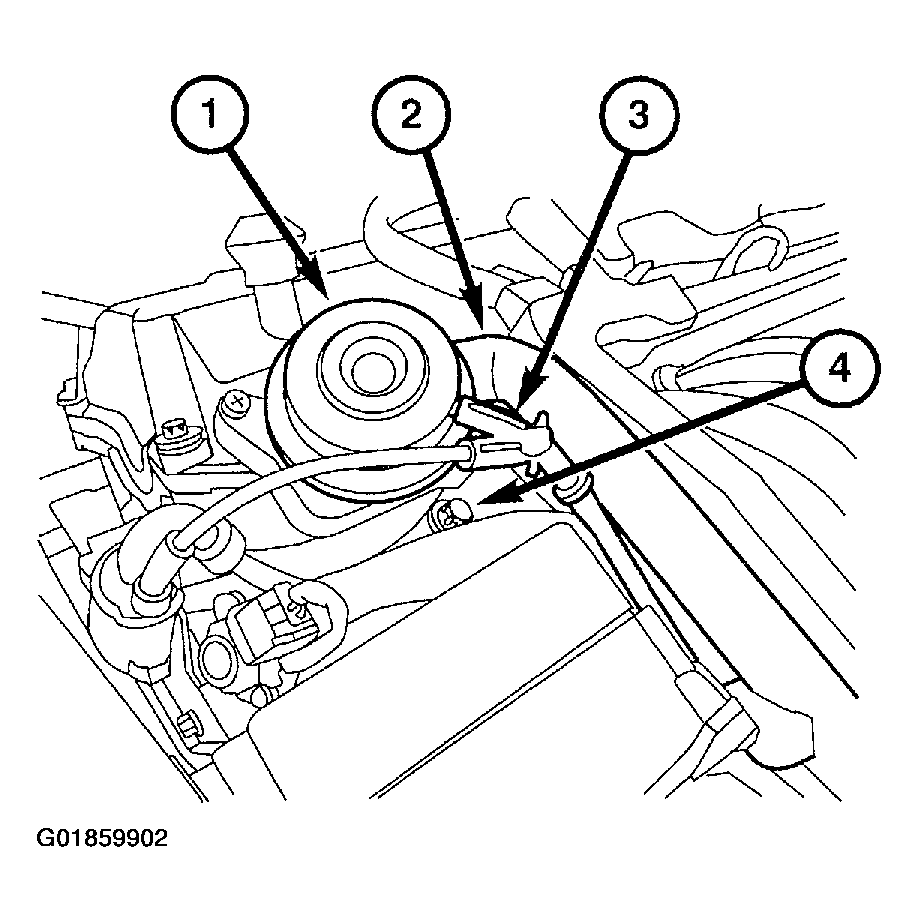

Switchover Valve: Installation
- Position the new gasket between intake manifold and air pump switchover valve (1).
- Install the retaining bolt (4) and tighten to 20 N.m (177 in. lbs.).
- Connect the vacuum line (3).
- Connect the air pump switchover tube (2).
- Install the air cleaner housing.
- Connect the negative battery cable.
