2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Switchover Solenoid: Removal
- Disconnect the negative battery cable.
- Remove the air cleaner housing.
- Disconnect the air pump switchover solenoid harness connector (2).

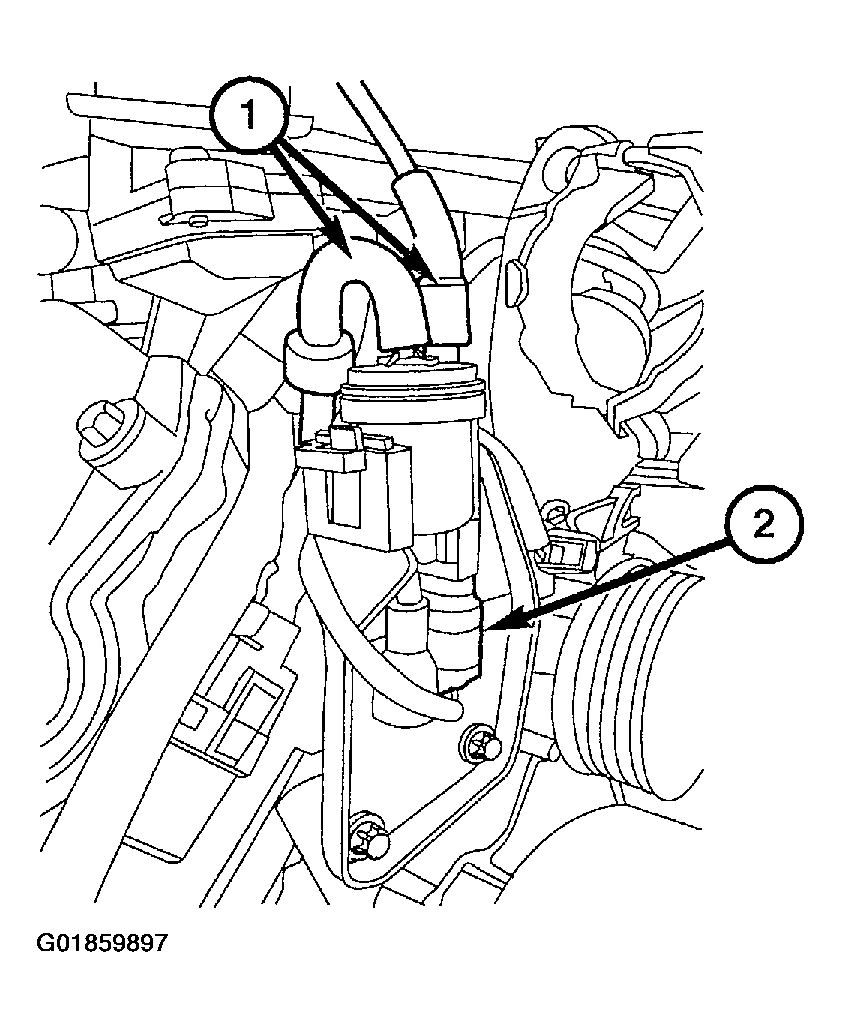

- Disconnect the vacuum lines (1).
- Pull the air pump switchover solenoid locking tab (1) away from air pump switchover solenoid (2).
- Remove the air pump switchover solenoid (2) from air pump switchover solenoid retaining bracket (3).
