2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Air Pump: Removal
- Disconnect the negative battery cable.
- Remove the air cleaner housing.

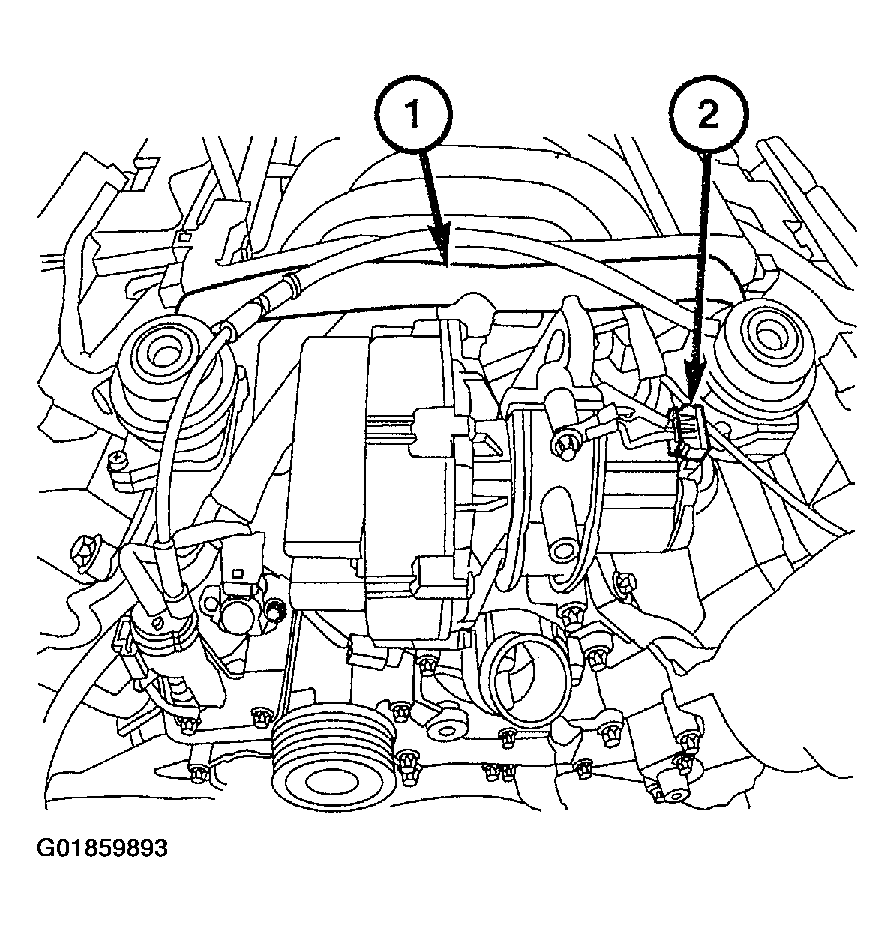

- Disconnect the air pump switchover tube (1).
- Disconnect the air pump harness connector (2).

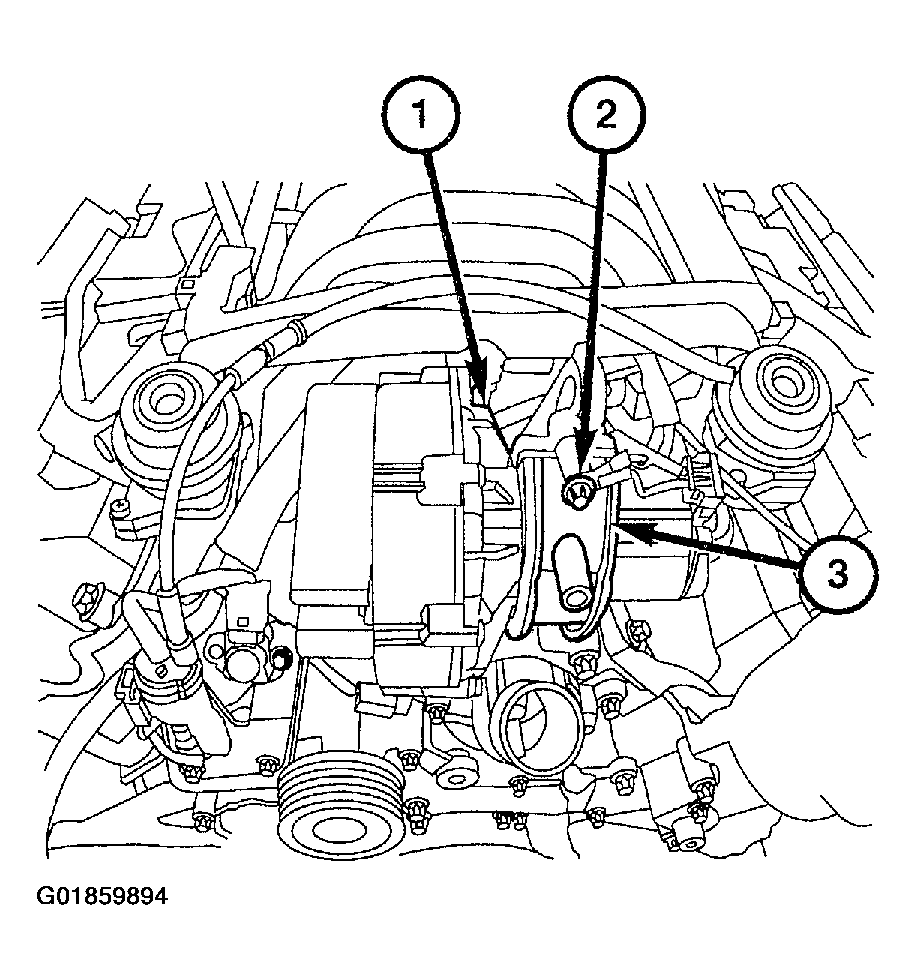

- Remove the air pump retaining bolt (2).
- Remove the air pump (1) from the air pump retaining bracket (3).
