2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Body: Installation

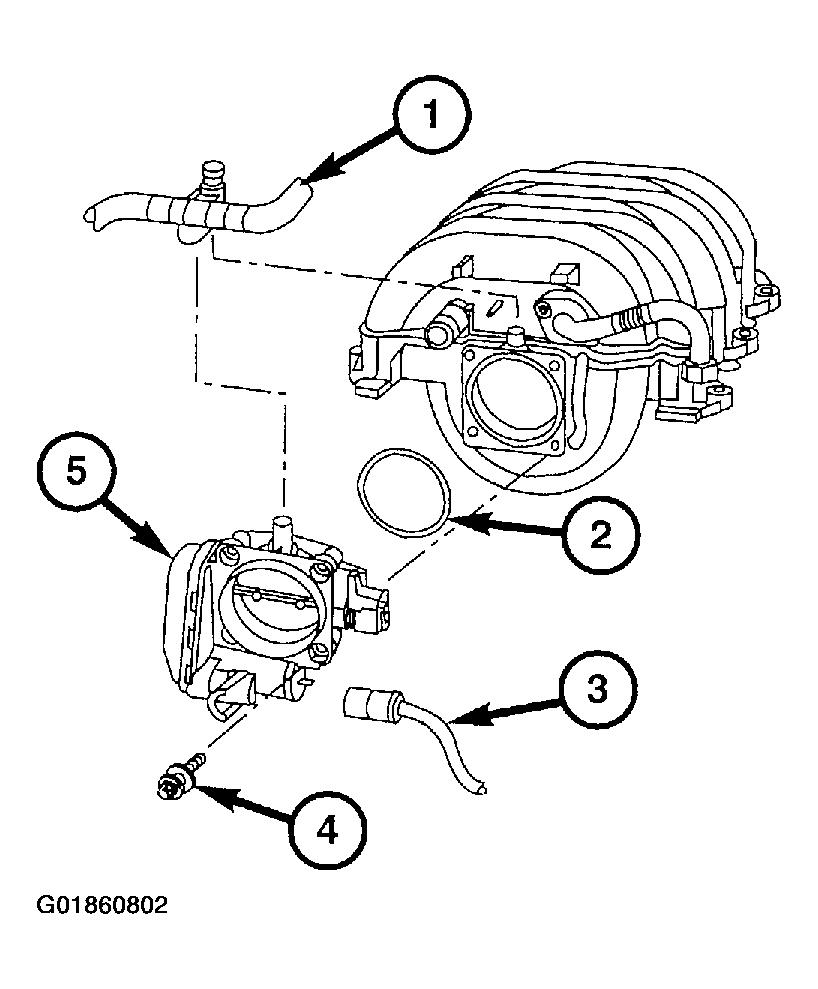

- Install the new O-ring (2) to the throttle body (5).
- Install the throttle body (5) to the intake. Tighten to 9 N.m (80 in lbs.).
- Connect the throttle body harness connector (3).
- Install the crankcase vent tube (1) to the intake.
- Install the MAF sensor. See MANIFOLD AIR FLOW (MAF) SENSOR .
- Install the air cleaner housing. See 3.2L V6 article.
- Connect the negative battery cable.
