2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Manifold Air Flow (MAF) Sensor: Installation
- Install the MAF onto the intake by securely pushing the MAF onto the throttle body.

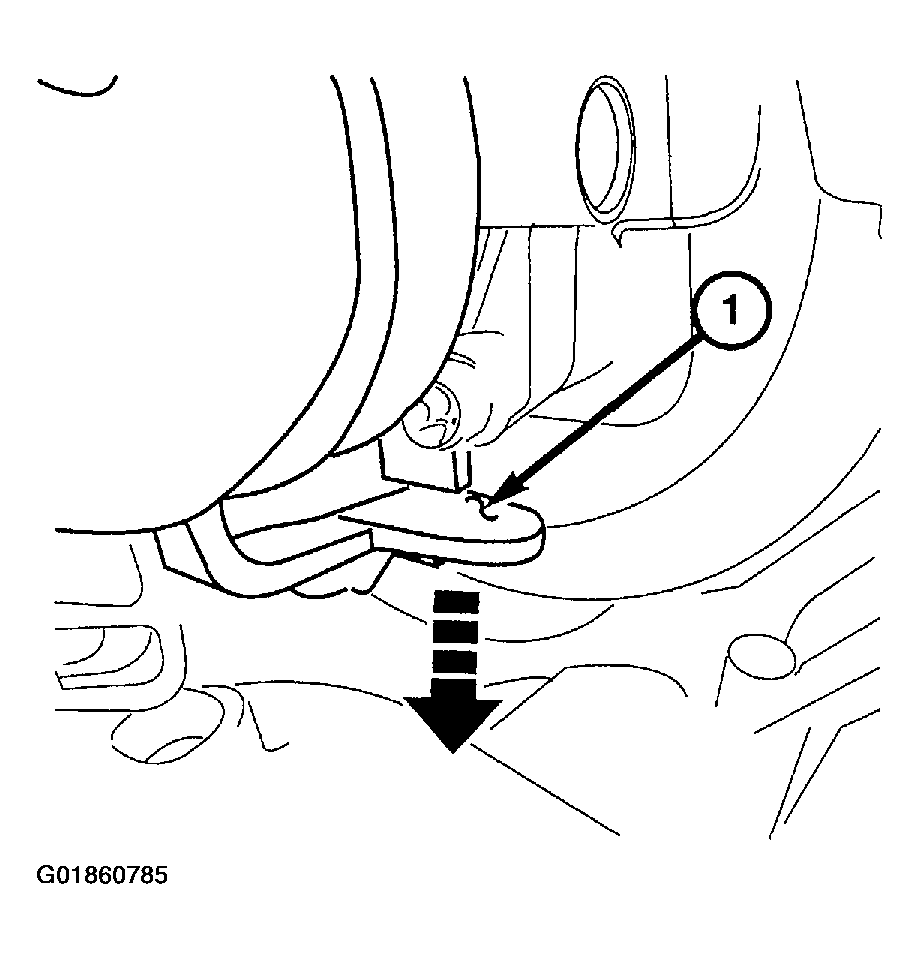

- Lock the lower locking tab (1) to the intake manifold. Lock the upper locking tab to the intake manifold.

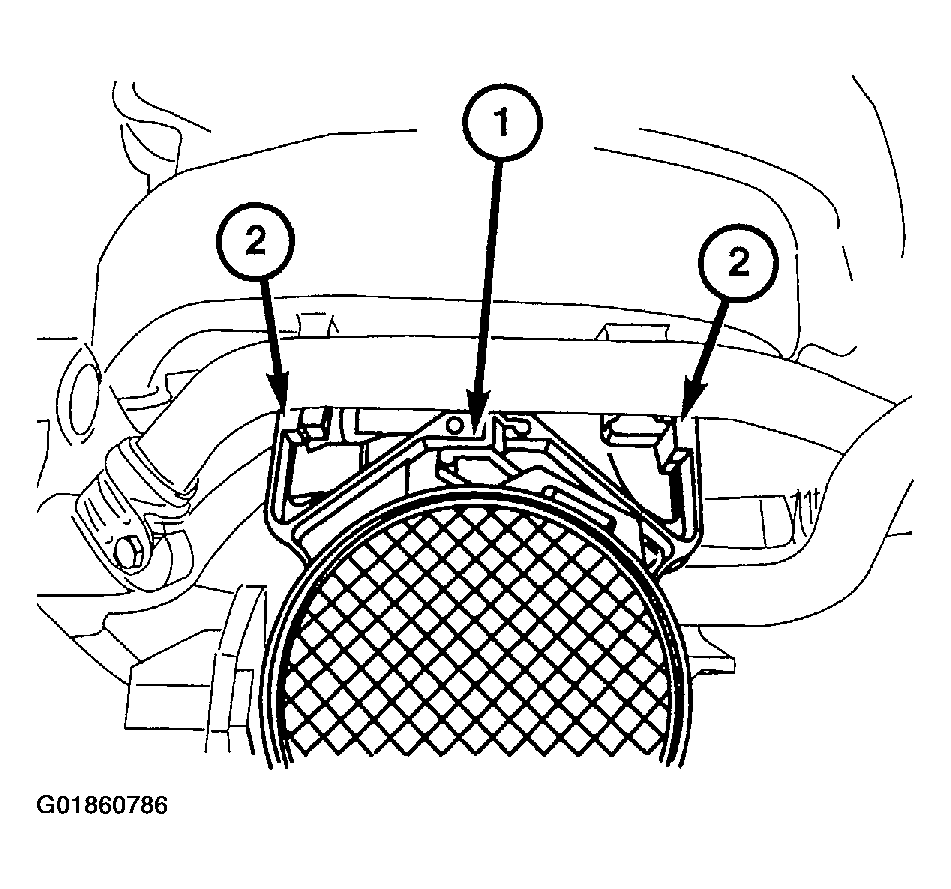

- Push the MAF so the upper locking ring (1) and tabs (2) are inline with the tabs on the intake, then squeeze the locking ring (1) to lock the MAF onto the intake.

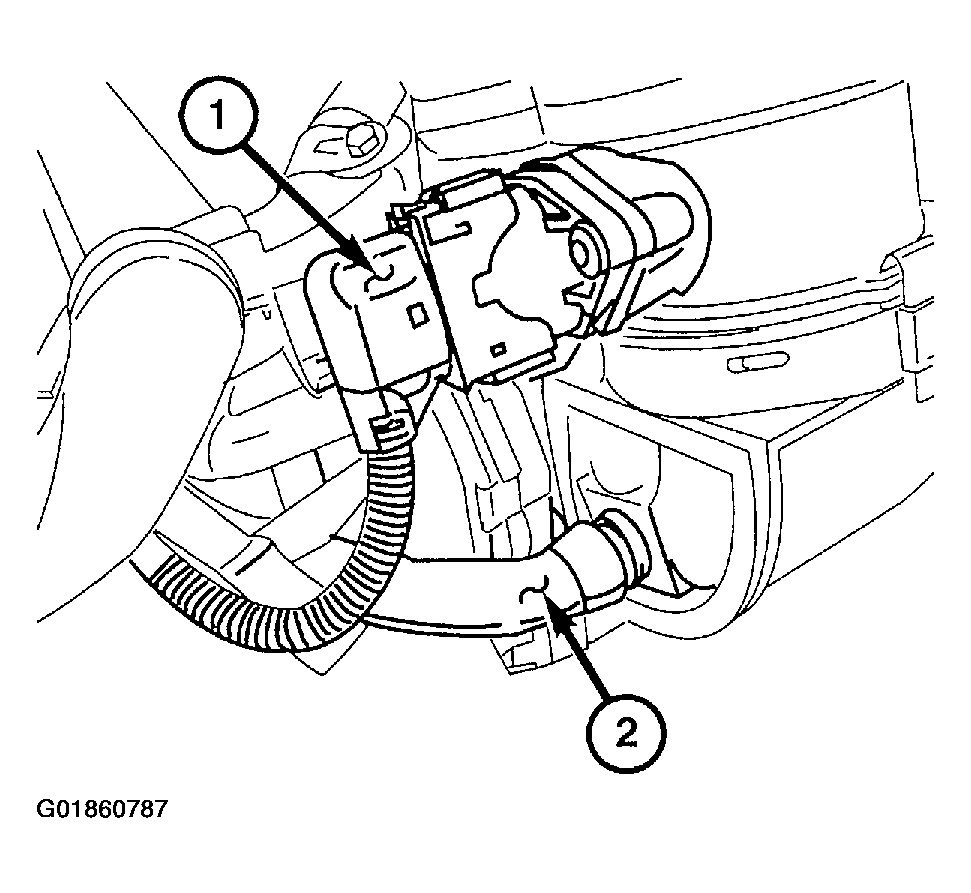

- Install the vent hose (2) to the MAF sensor.
- Connect the MAF/IAT harness connector (1).
- Install the air cleaner housing. See 3.2L V6 article.
- Connect the negative battery cable.
