2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Rail: Installation

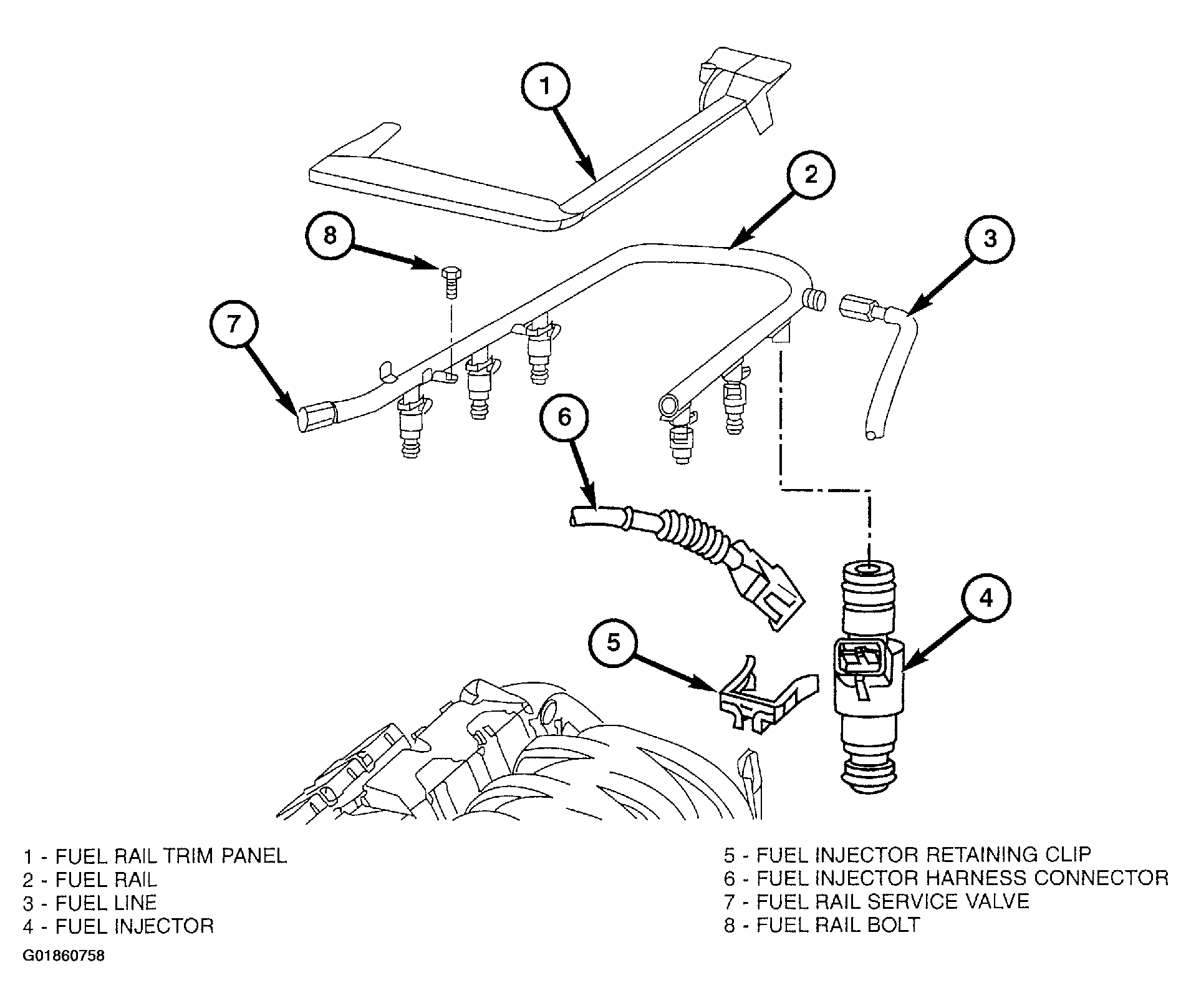

- Install the fuel rail (2) with the fuel injectors (4) by moving the fuel rail (2) side to side and pushing gently inward towards the intake.
- Install the fuel rail bolts (8) attaching the fuel rail (2) to the intake. Tighten to 9 N.m (80 in. lbs.).
- Install the fuel injector harness (6) to the fuel injectors (4) then install the fuel injector harness connector retaining clips (5).
- Connect the fuel feed line (3) to the fuel rail and torque to 38 N.m (28 ft. lbs.).
- Install the fuel rail trim panel (1), then install the fuel rail trim panel screw.
- Install the air cleaner housing. See 3.2L V6 article.
