2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel Injector: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing. See 3.2L V6 article.
  3. Remove the fuel rail trim panel screw and then remove the fuel rail trim panel (1).
  4. Release the fuel pressure through the fuel rail service valve (7) using a fuel pressure tester. Collect the fuel in a suitable container.
  5. Disconnect the fuel feed line (3).
  6. Remove the fuel injector wire harness connector retaining clips and then disconnect the fuel injector harness (6) from the fuel injectors (4).
  7. Remove the fuel rail retaining bolts (8).
  8. Remove the fuel rail (2) with the fuel injectors (4) by moving the fuel rail (2) side to side while lifting upward.

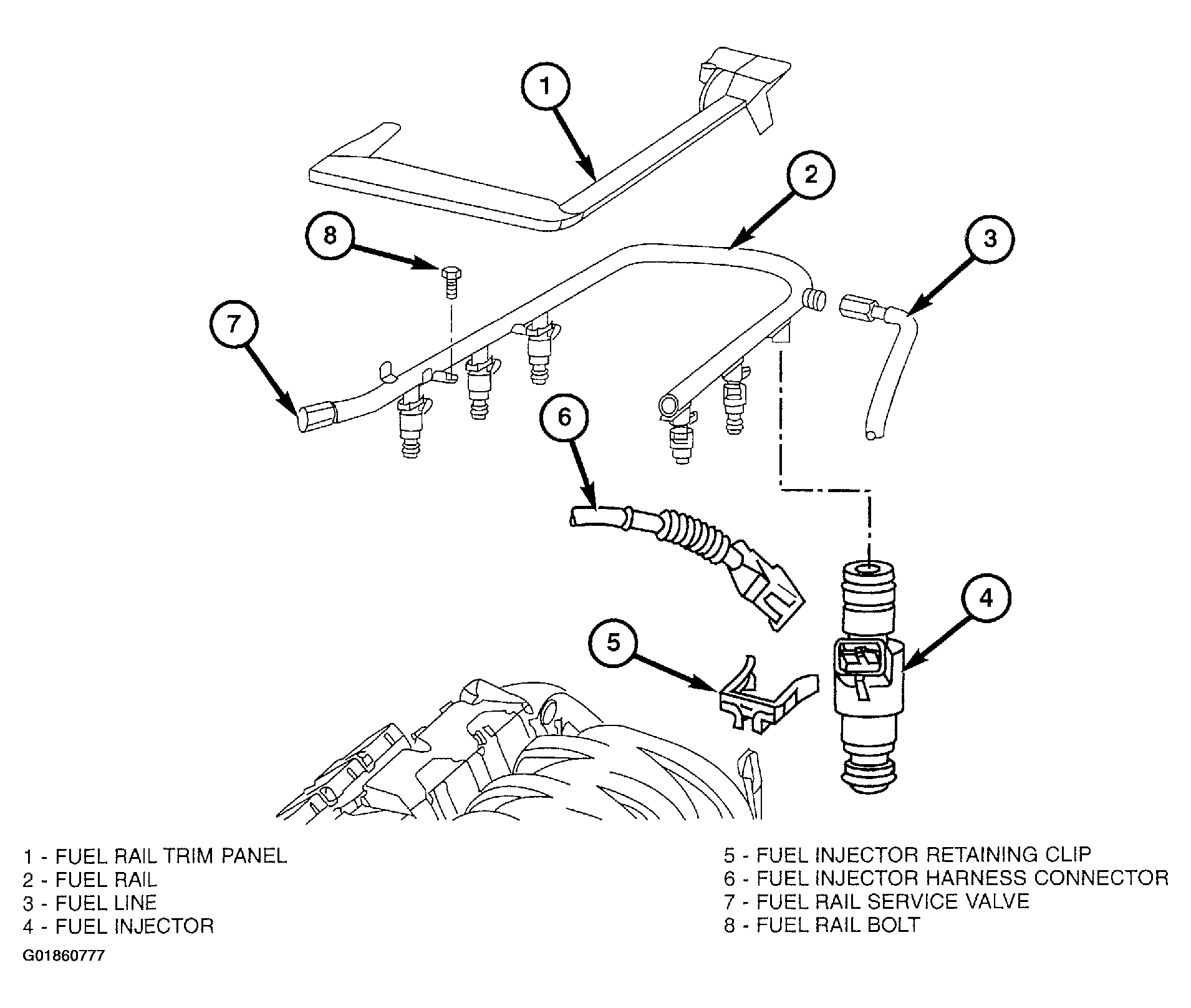

    Fig 1: Removing Fuel Rail With Fuel Injectors
    G01860777Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the fuel injector retaining clips and the fuel injectors (4) from the fuel rail (2).
