2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal: Removal
- Disconnect the negative battery cable.

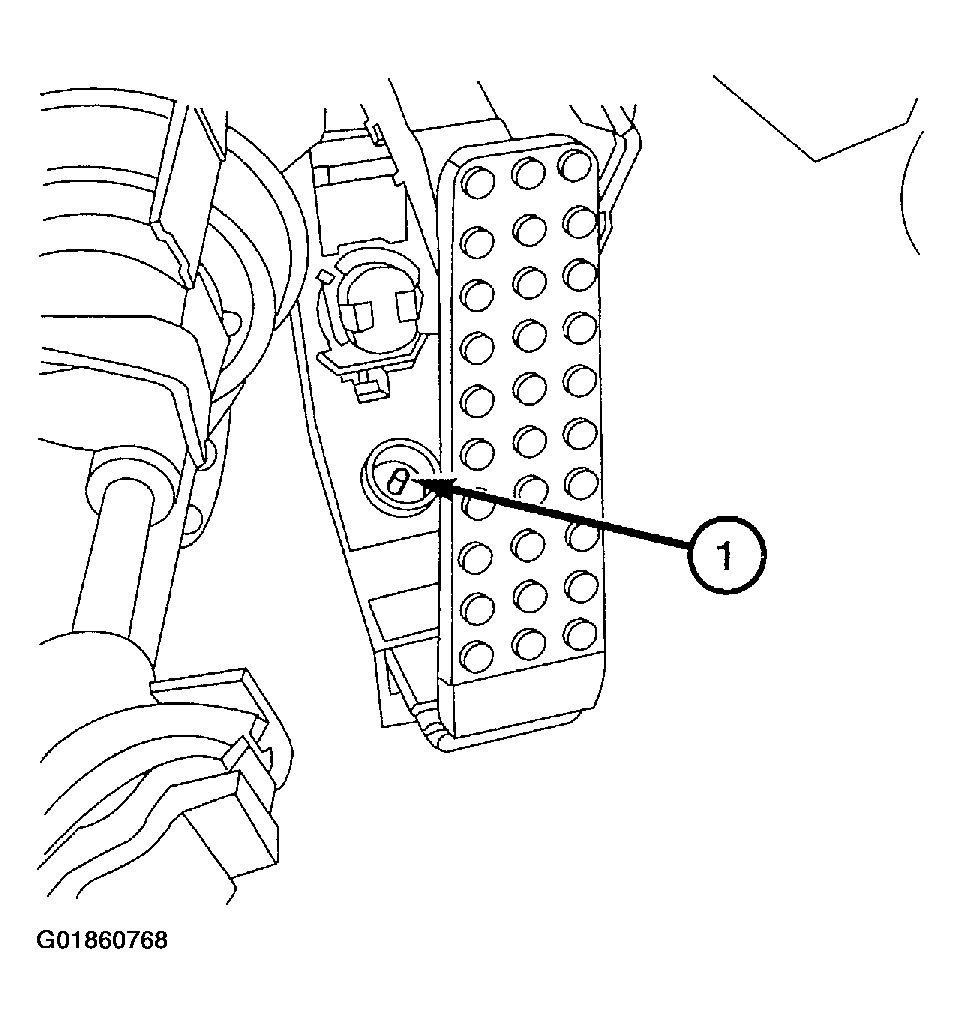

- Remove the accelerator pedal upper nut (1).

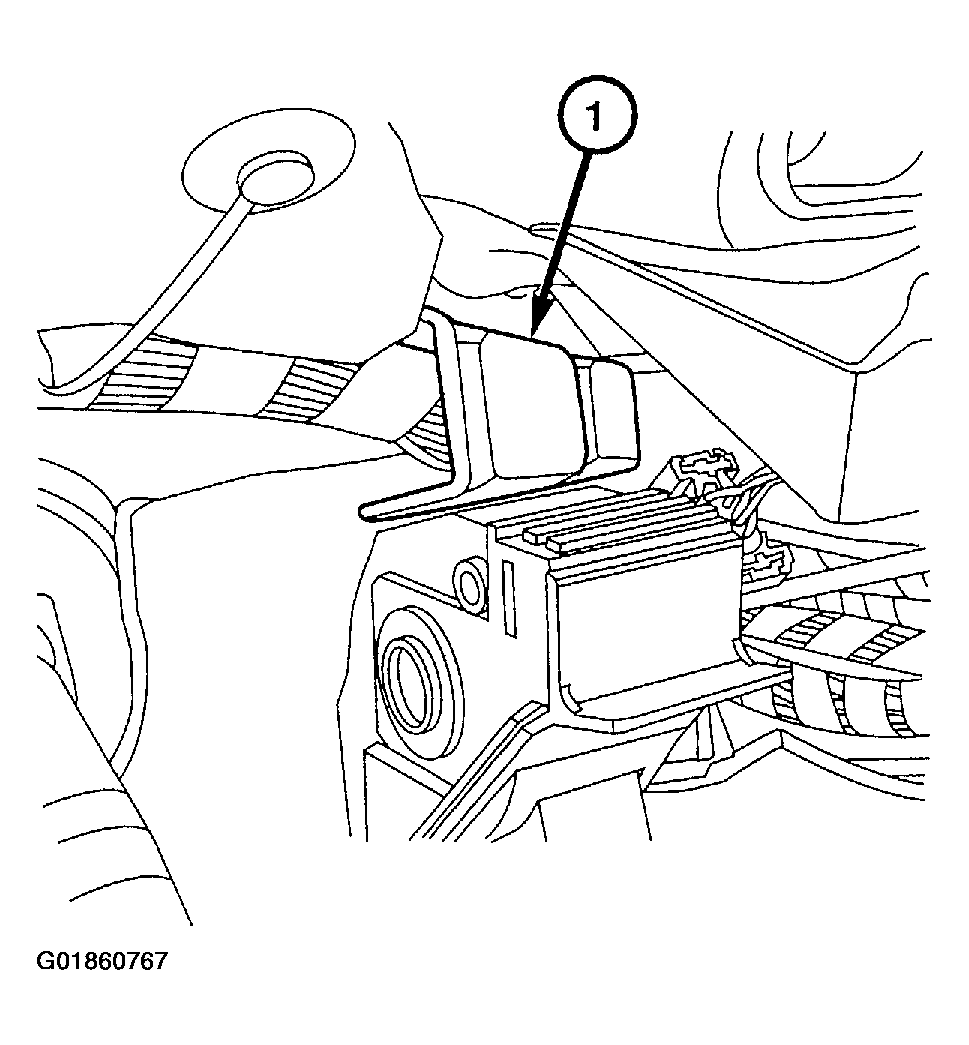

- Remove the lower accelerator nut cover (1) and the nut.
- Lift the accelerator pedal off of the welded stud and out of the bracket.
- Disconnect the accelerator pedal harness connector from the accelerator pedal.
