2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal: Installation
- Connect the accelerator pedal harness connector.
- Slide the accelerator pedal into the bracket and onto the welded stud.
- Install the accelerator pedal lower nut (1). Tighten to 15 N.m (11 ft. lbs.).
- Install the plastic nut cover.

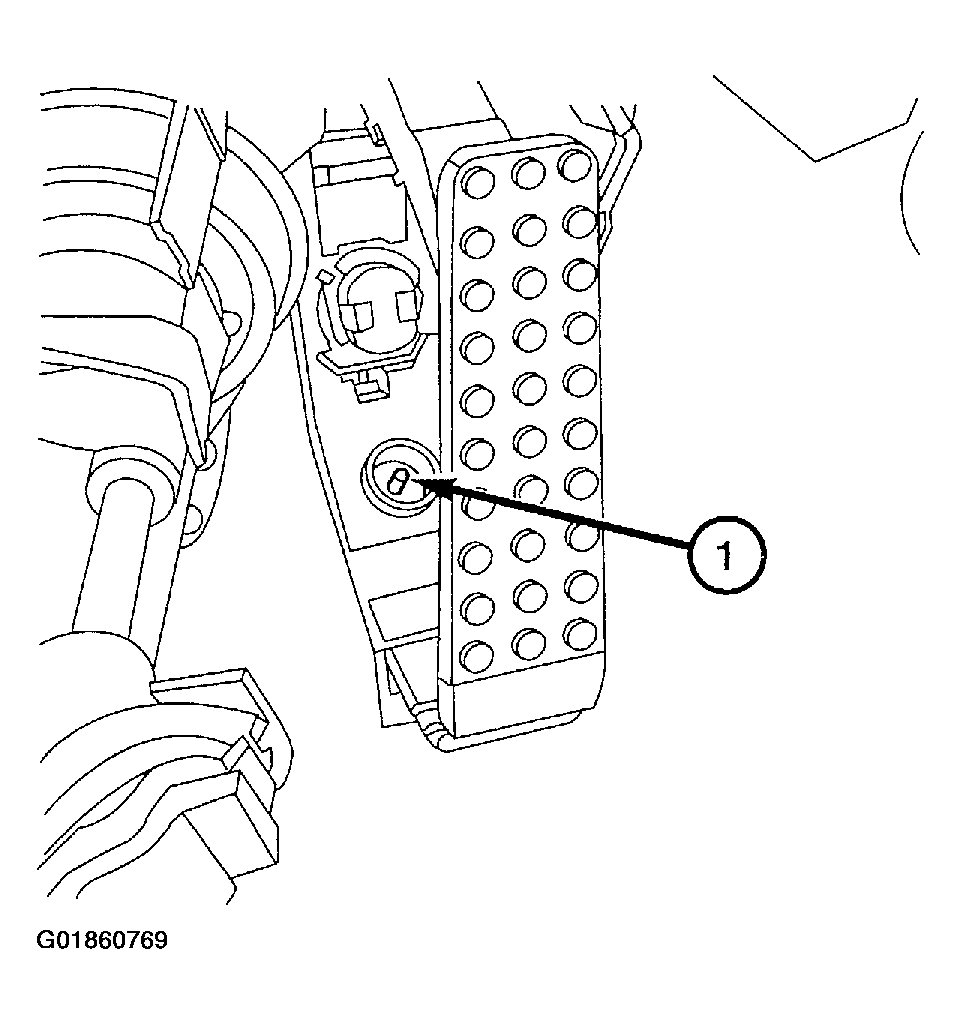

- Install the accelerator pedal upper nut (1). Tighten to 15 N.m (11 ft. lbs.).
- Connect the negative battery cable.
