2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Upstream O2 Sensor
- Apply anti-sieze compound to the threaded portion of the O2 sensor.

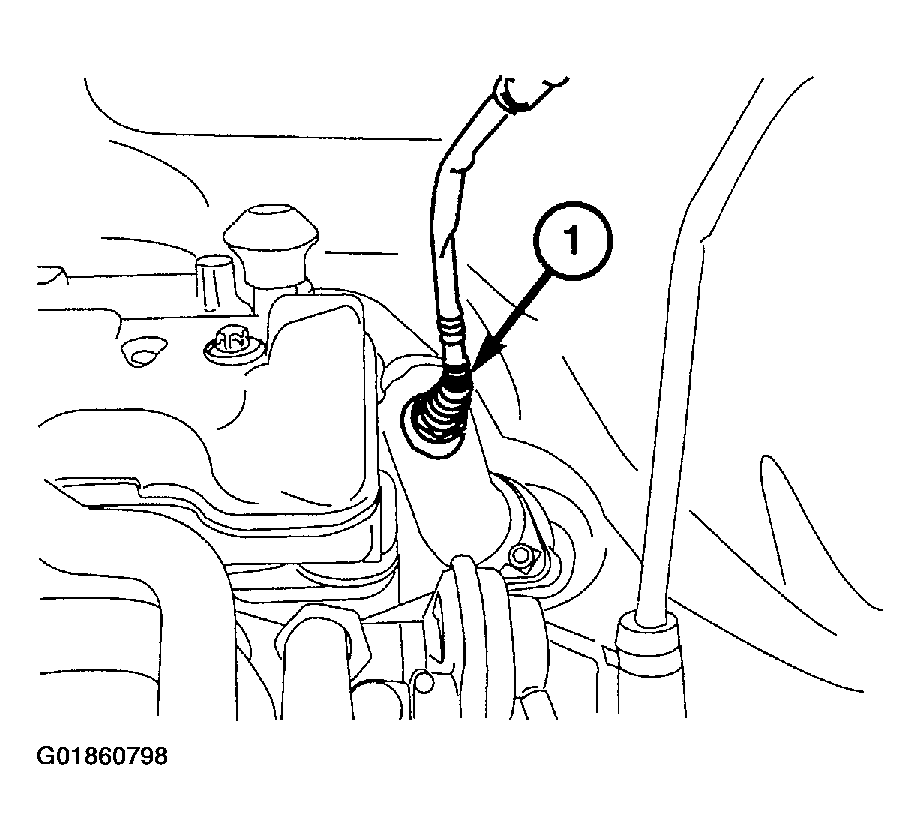

- Install the O2 sensor (1). Tighten to 50 N.m (37 ft. lbs.).
- Connect the O2 sensor harness connector.
- Install the air cleaner housing. See 3.2L V6 article.
- Connect the negative battery cable.
