Fuel Level Sending Unit/Sensor: Description

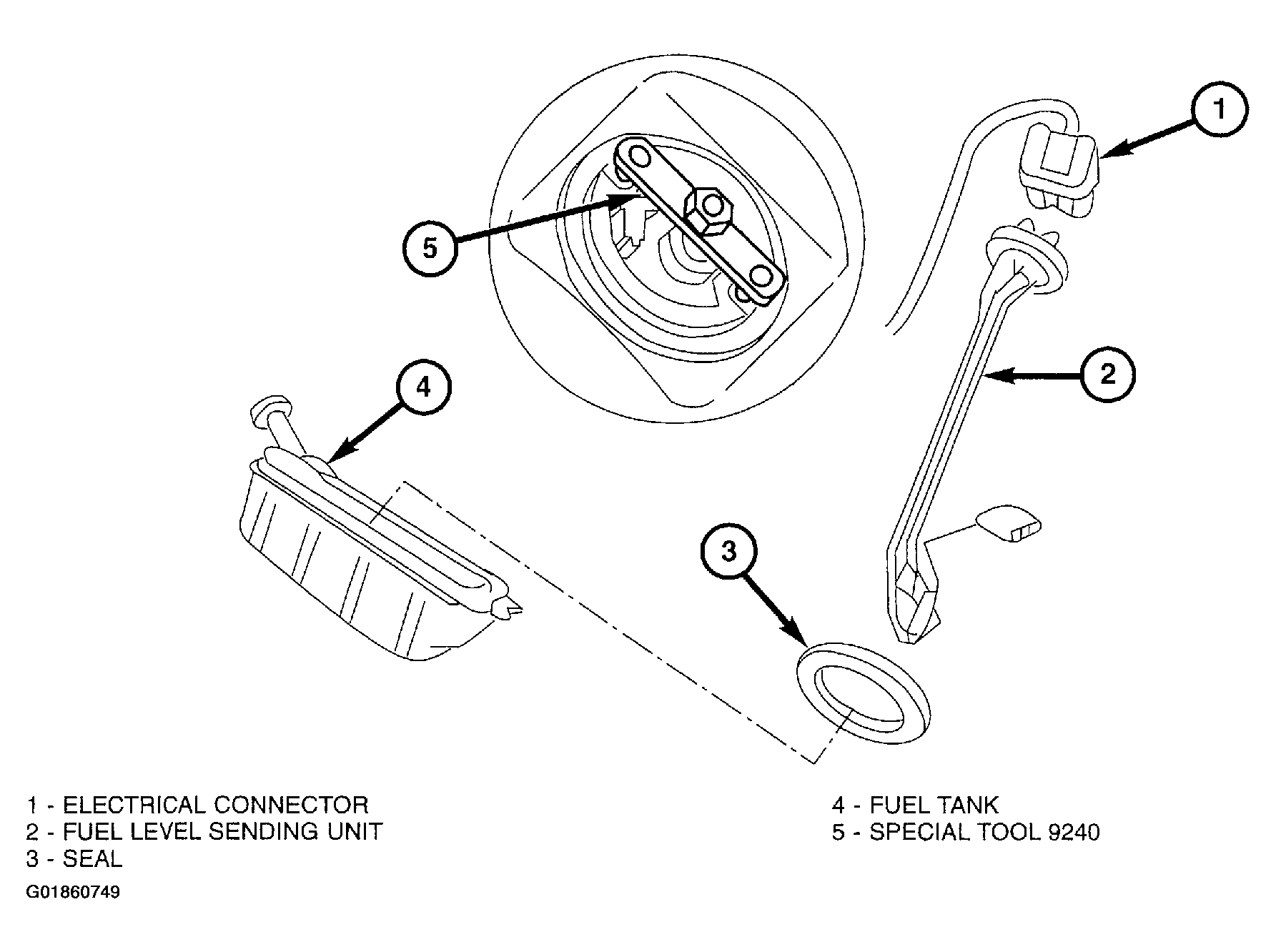

The fuel level sending unit (2) is combined with a fuel tank pressure sensor and is mounted at the top of the fuel tank (4) extending downward inside. The sending unit is a lever-type sensor with sliding contacts (potentiometer).
