2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Delivery: Description

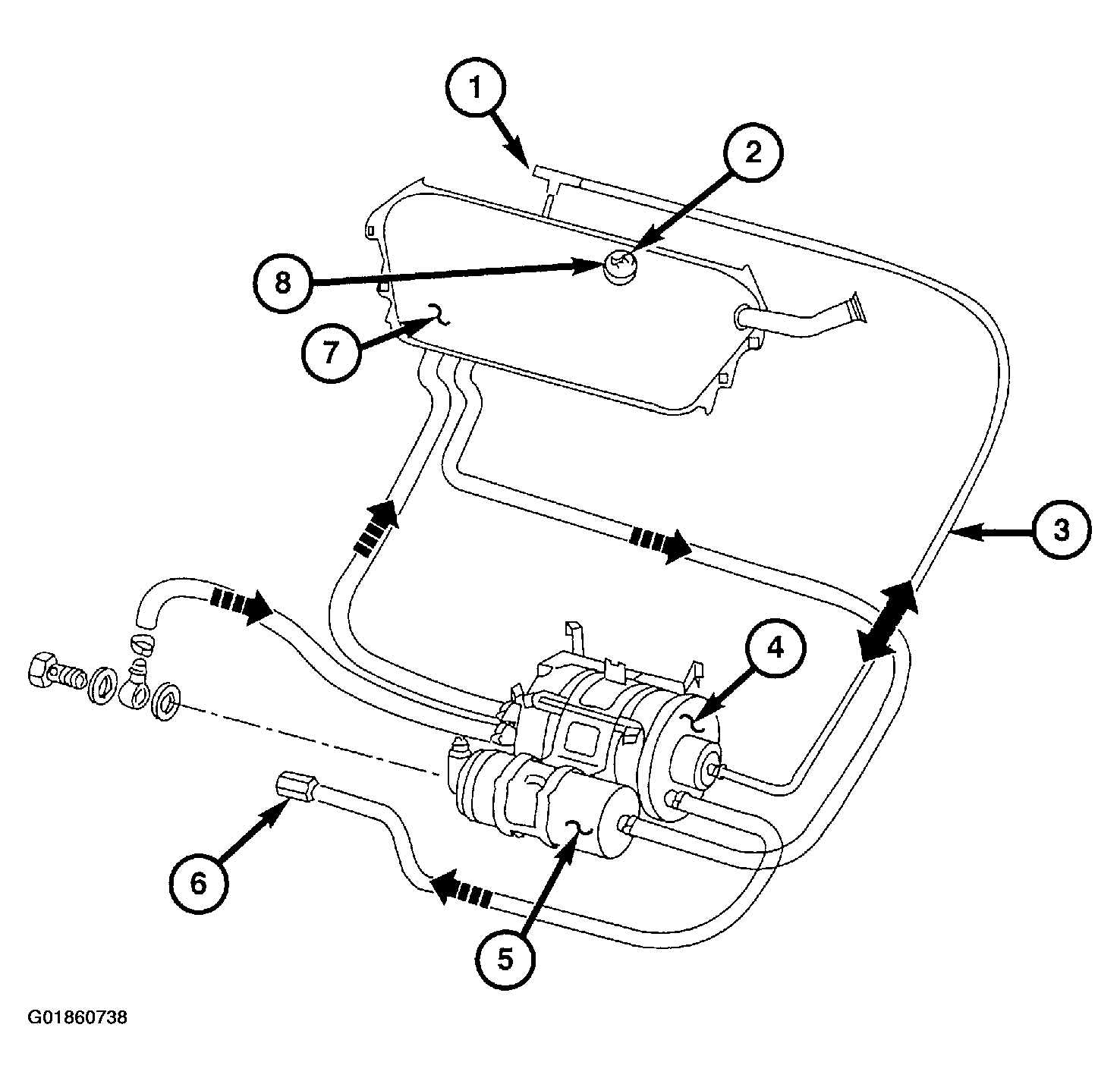

The aluminum fuel tank (7) is located in the cargo area behind a metal partition.
The fuel delivery system consists of the following items:
- Fuel injector rail
- Fuel tank filler tube cap
- Fuel tank/filler vent tube assembly
- Fuel tubes/lines/hoses (3)
- In-line electric fuel pump (5)
- In-line fuel filter/pressure regulator (4)
- In-tank fuel strainer
