Starter Solenoid
This test can only be performed with the starter motor removed from the vehicle.
- Remove the starter motor from the vehicle.
- Disconnect the wire from the solenoid field coil terminal.

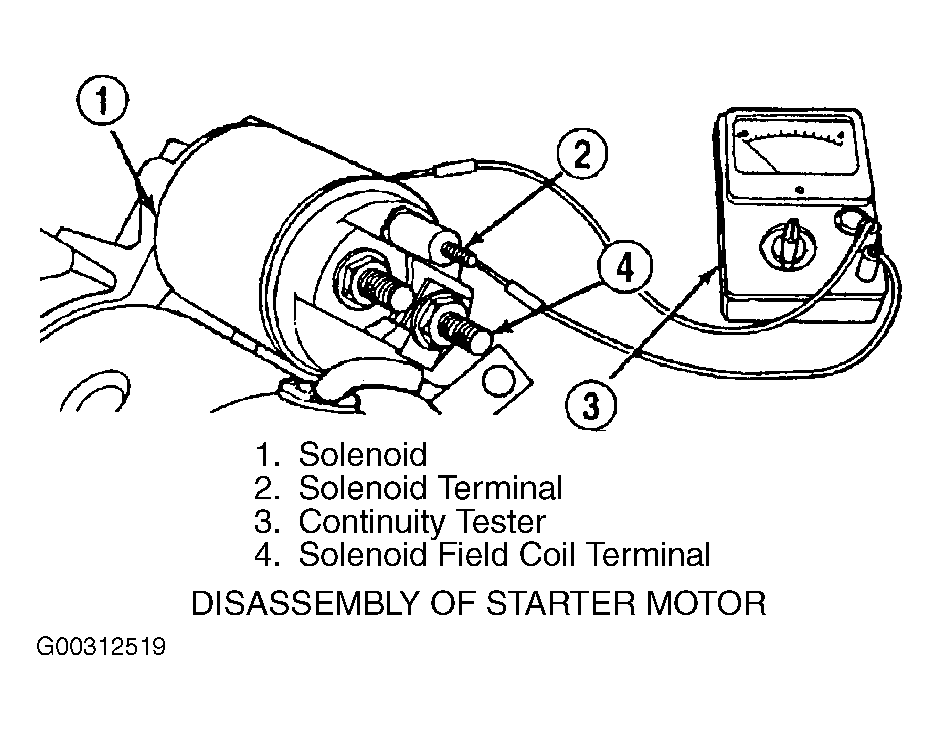

- Check the solenoid (1) for continuity between the solenoid terminal (2) and the solenoid field coil terminal (4) with a continuity tester (3). There should be continuity. If OK, go to next step. If not OK, replace the faulty starter motor assembly.

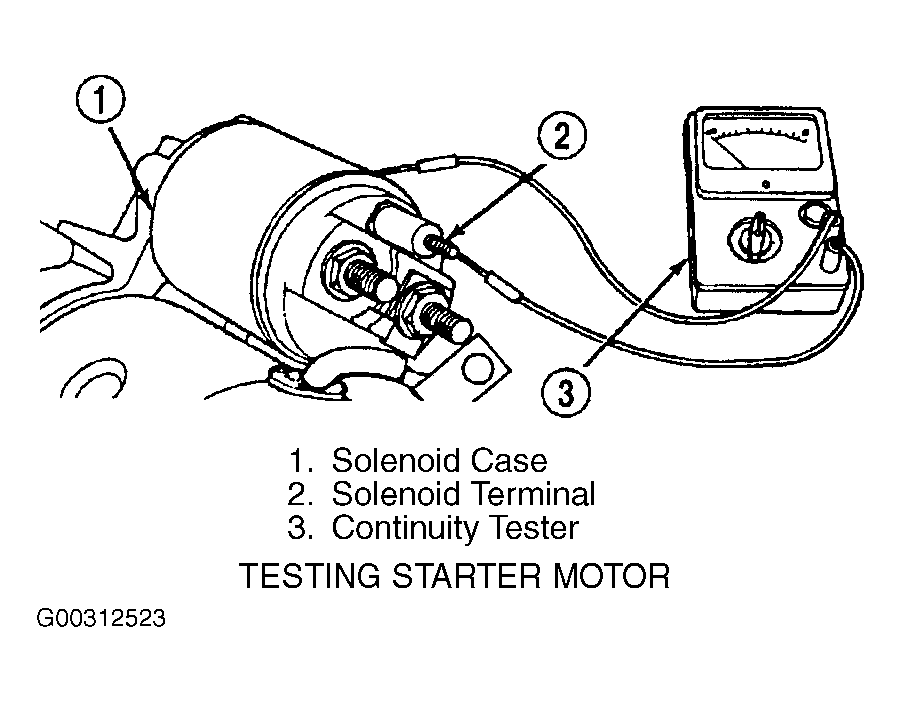

- Using a continuity tester (3), check for continuity between the solenoid terminal (2) and the solenoid case (1). There should be continuity. If not OK, replace the faulty starter motor assembly.
