Charging System - Generators & Regulators: Description: Generator

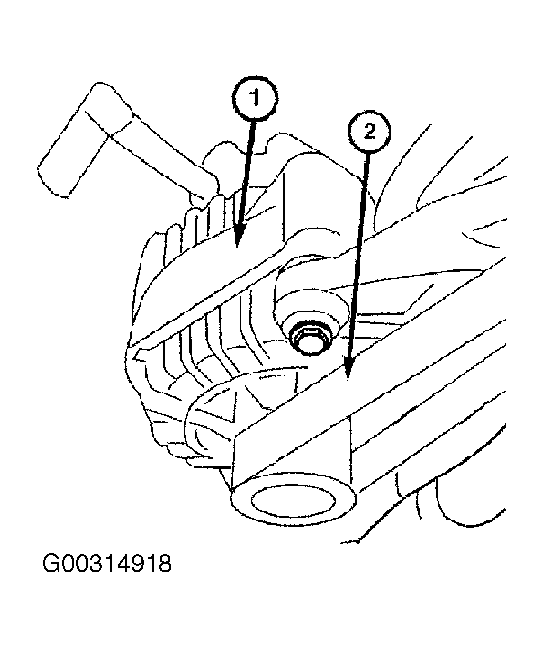

The generator is belt-driven by the engine using a serpentine type accessory drive belt. It is serviced only as a complete assembly. If the generator fails for any reason, the entire assembly must be replaced. The only component that is replaceable is the voltage regulator. See Fig 1 .
