2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Security System Module: Removal
- Disconnect the negative battery cable.
- Remove the trunk floor covering.
- Remove the vehicle jacking assembly.
- Remove the sound deadening foam material from the central locking pump/security system module.

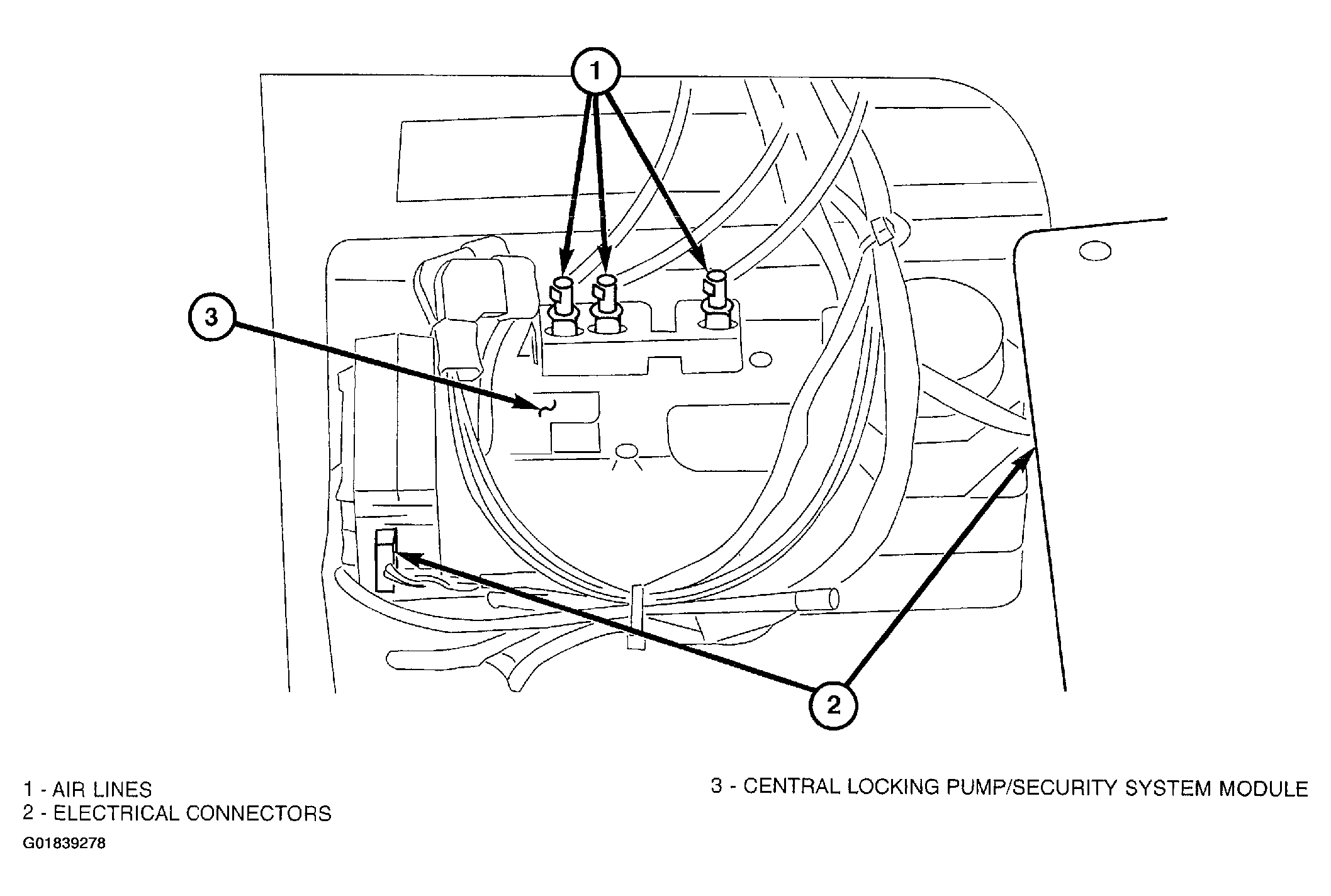

- Disconnect the air lines (1) and the electrical connectors (2) from the central locking pump/security system module (3) and remove the module.
