2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Security System Module: Installation

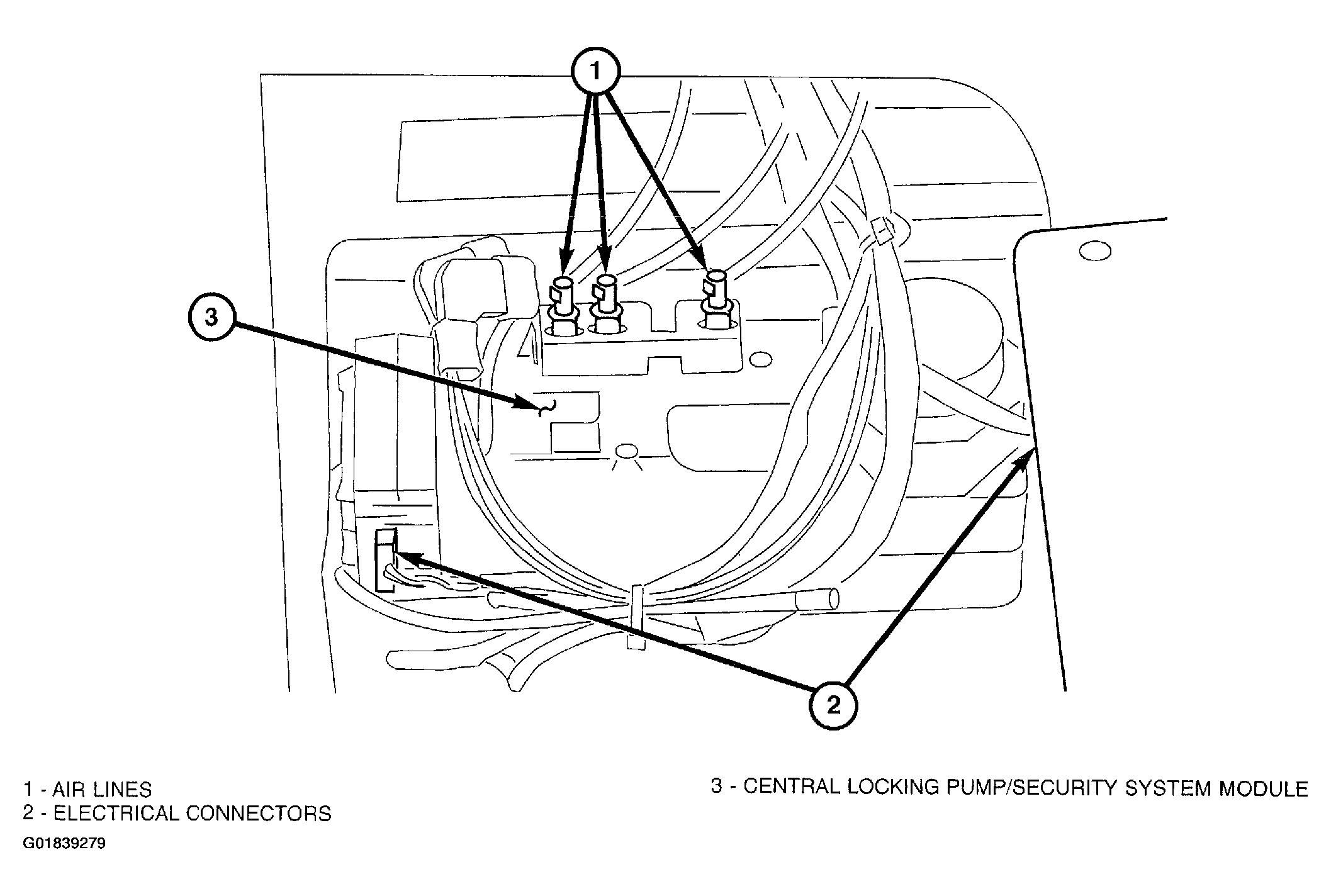

- Install the central locking pump/security system module (3) into the trunk and connect the air lines (1) and the electrical connectors (2).
- Install the sound deadening foam covering to the central locking pump/security system module.
- Install the vehicle jacking assembly into the trunk next to the central locking pump/security system module.
- Install the trunk floor covering.
- Connect the negative battery cable.
