2004 Chrysler Crossfire AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Module: Removal
- Disconnect the negative battery cable.
- Remove the passenger floor mat and pull the carpet back in the front portion of the footwell.

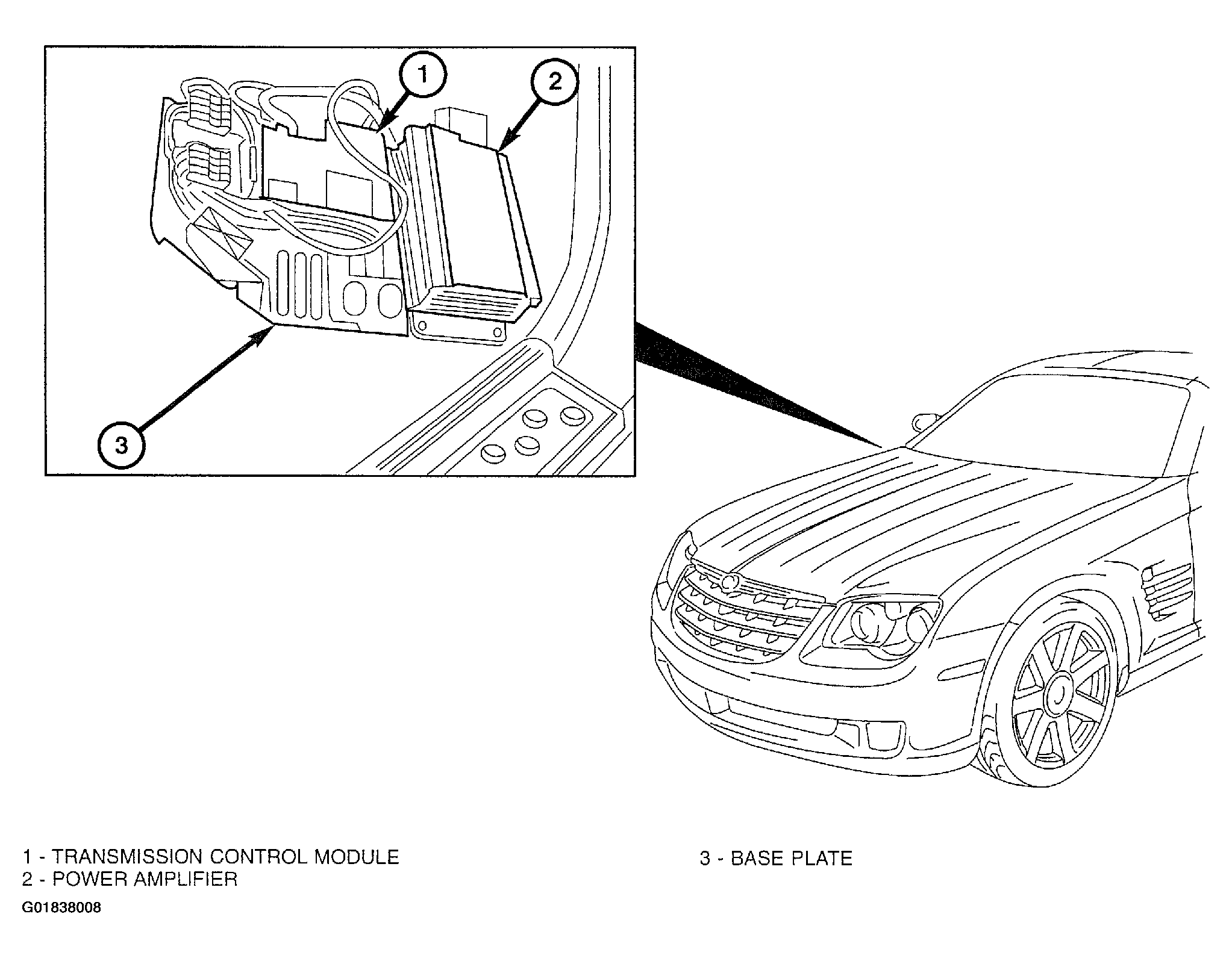

- Remove the plastic nuts holding the base plate (3) to the passenger footwell and pull the base plate (3) down.
- Remove the screws holding the transmission control module (1) to the base plate (3).
- Disconnect the electrical connectors and remove the transmission control module (1).
