2004 Chrysler 300M BaseFACTORY OEM SERVICE PROCEDURE

Fuel Pump Module: Installation

Wipe seal area of tank clean and place a new seal in position in the tank opening.
Position fuel pump in the tank. Make sure the alignment tabs on the underside of the fuel pump module flange (Fig 1) sits in the notches on the fuel tank (Fig 2).

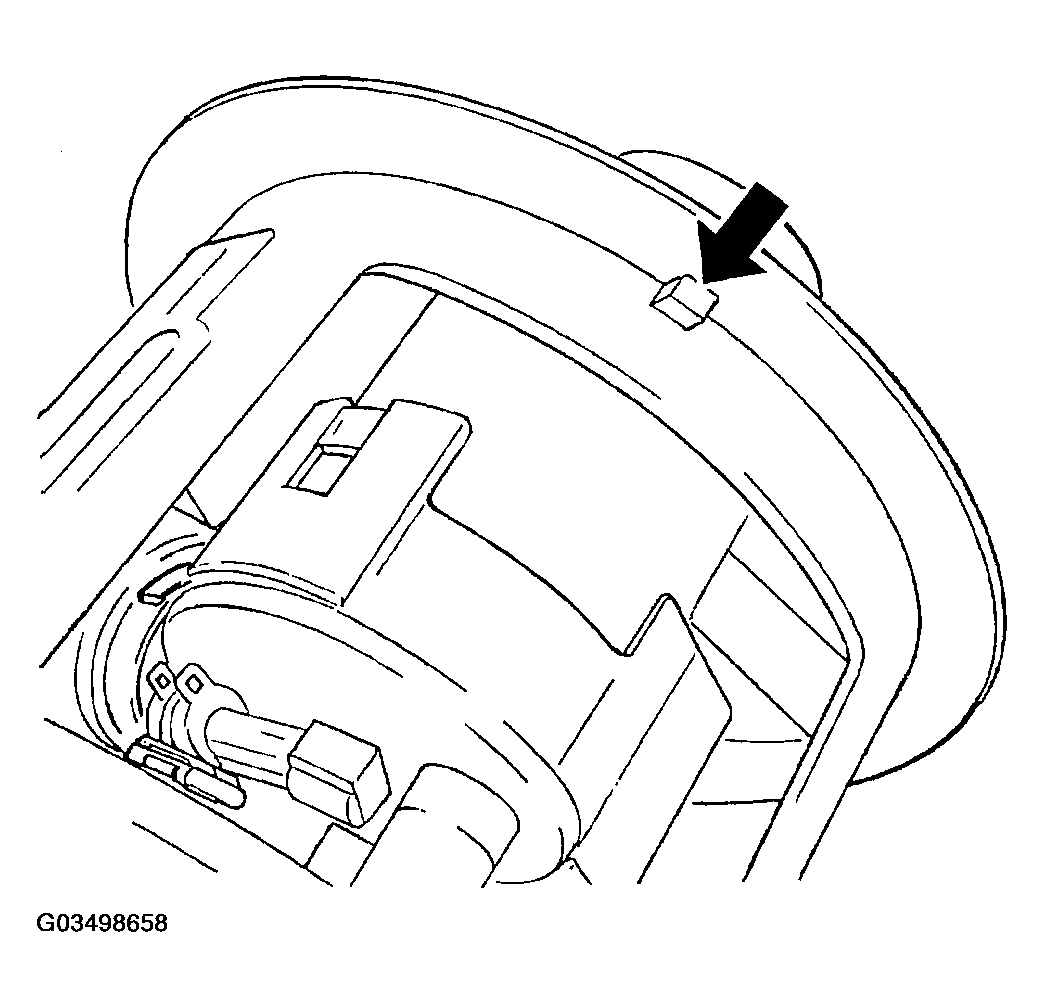

Fig 1: Pump Module Notch
Courtesy of DAIMLERCHRYSLER CORP.
