2003 Chrysler PT Cruiser L4-2.4L VIN BFACTORY OEM SERVICE PROCEDURE

D. Replace PCM - JR Vehicles

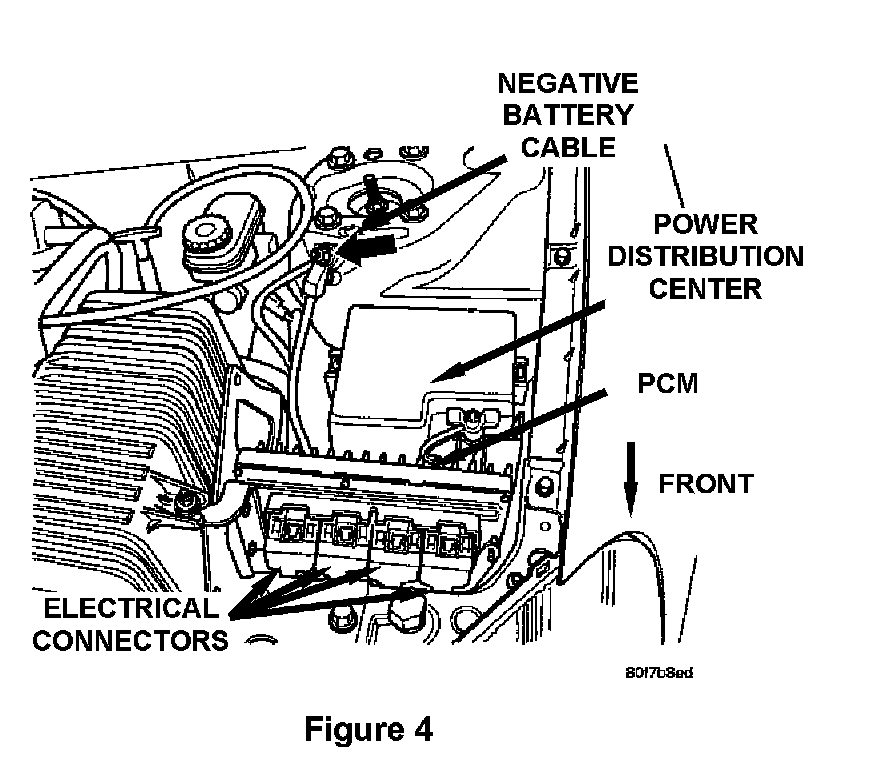

Factory service manual diagram




1. Disconnect the negative battery cable (Figure 4).

NOTE:
To enhance customer satisfaction, remember to reset the clock when you have completed the service procedure.

2. Disconnect the four (4) PCM electrical connectors and set the wiring harness aside (Figure 4).

3. Remove the two (2) PCM bracket fasteners and then remove the PCM and bracket assembly (Figure 4).

4. Remove the three (3) PCM bolts, then remove the PCM and discard it.

5. Install the new PCM on the bracket. Tighten the mounting bolts to 35 in-lbs (4 N.m).

6. Install the PCM and bracket assembly (Figure 4). Tighten the fasteners to 35 in-lbs (4 N.m).

7. Connect the four (4) PCM electrical connectors.

8. Connect the negative battery cable.

9. Continue with Section E - PCM/Vehicle Data Set-up.
