2003 Chrysler PT Cruiser L4-2.4L VIN BFACTORY OEM SERVICE PROCEDURE
A. Replace PCM - LH Vehicles
1. Disconnect the negative battery cable.
NOTE:
To enhance customer satisfaction, remember to reset the clock when you have completed the service procedure.
2. Remove the speed control servo and set it aside.
3. Remove the washer fluid bottle filler neck bolt and set the filler neck aside.

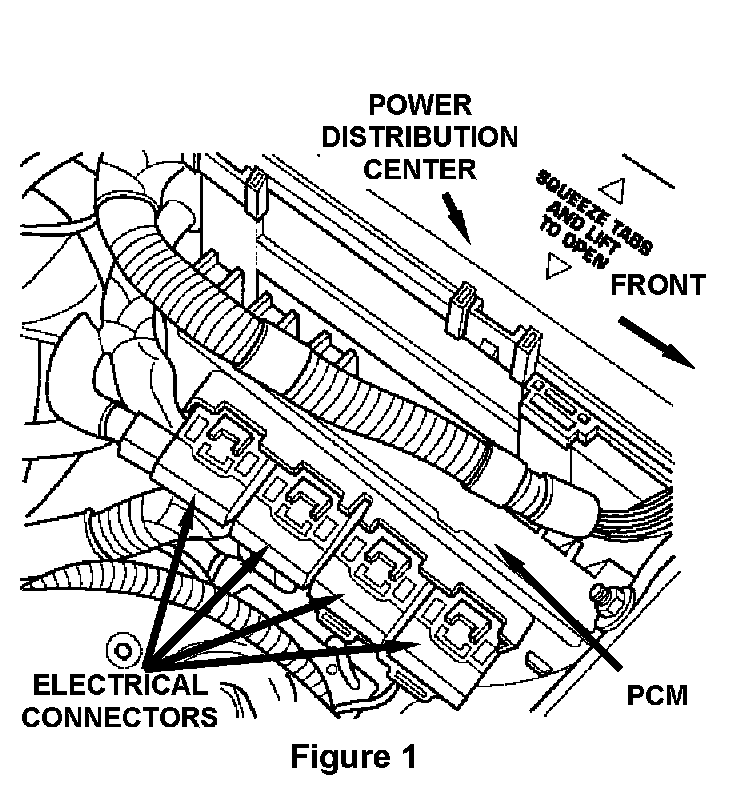

4. Disconnect the four (4) PCM electrical connectors and set the wiring harness aside (Figure 1).
5. Remove the three (3) PCM bolts, then remove the PCM and discard it (Figure 1).
6. Install the new PCM. Tighten the mounting bolts to 35 in-lbs (4 N.m) (Figure 1).
7. Connect the four (4) PCM electrical connectors (Figure 1).
8. Install the washer fluid bottle filler neck. Tighten the bolt securely.
9. Install the speed control servo. Tighten the servo bracket bolts securely.
10. Connect the negative battery cable.
11. Continue with Section E - PCM/Vehicle Data Set-up.
NOTE:
To enhance customer satisfaction, remember to reset the clock when you have completed the service procedure.
2. Remove the speed control servo and set it aside.
3. Remove the washer fluid bottle filler neck bolt and set the filler neck aside.
4. Disconnect the four (4) PCM electrical connectors and set the wiring harness aside (Figure 1).
5. Remove the three (3) PCM bolts, then remove the PCM and discard it (Figure 1).
6. Install the new PCM. Tighten the mounting bolts to 35 in-lbs (4 N.m) (Figure 1).
7. Connect the four (4) PCM electrical connectors (Figure 1).
8. Install the washer fluid bottle filler neck. Tighten the bolt securely.
9. Install the speed control servo. Tighten the servo bracket bolts securely.
10. Connect the negative battery cable.
11. Continue with Section E - PCM/Vehicle Data Set-up.
