2003 Chrysler PT Cruiser L4-2.4L VIN BFACTORY OEM SERVICE PROCEDURE
One Passenger Door Fails to Lock and Unlock

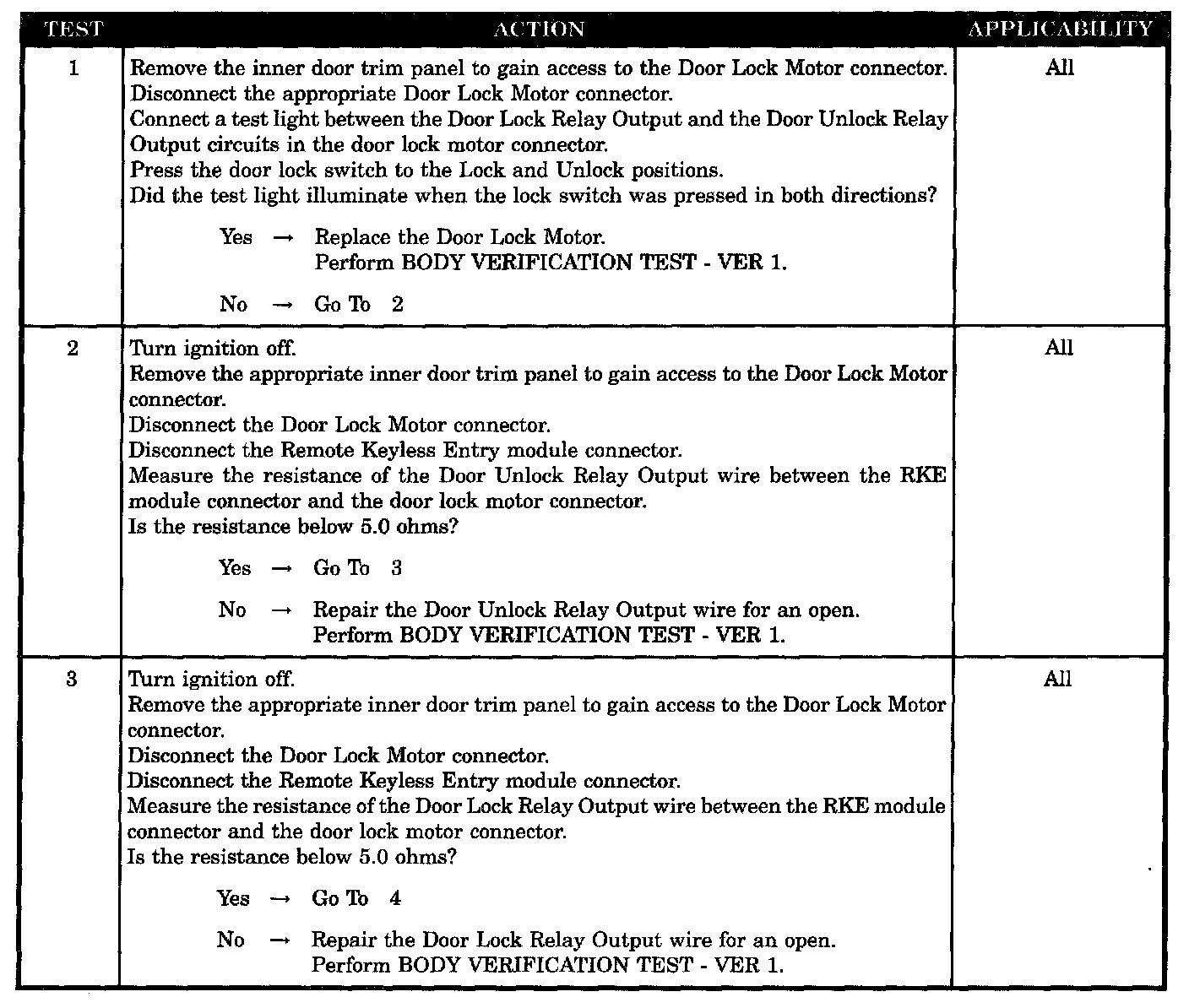

Test 1 - 3:

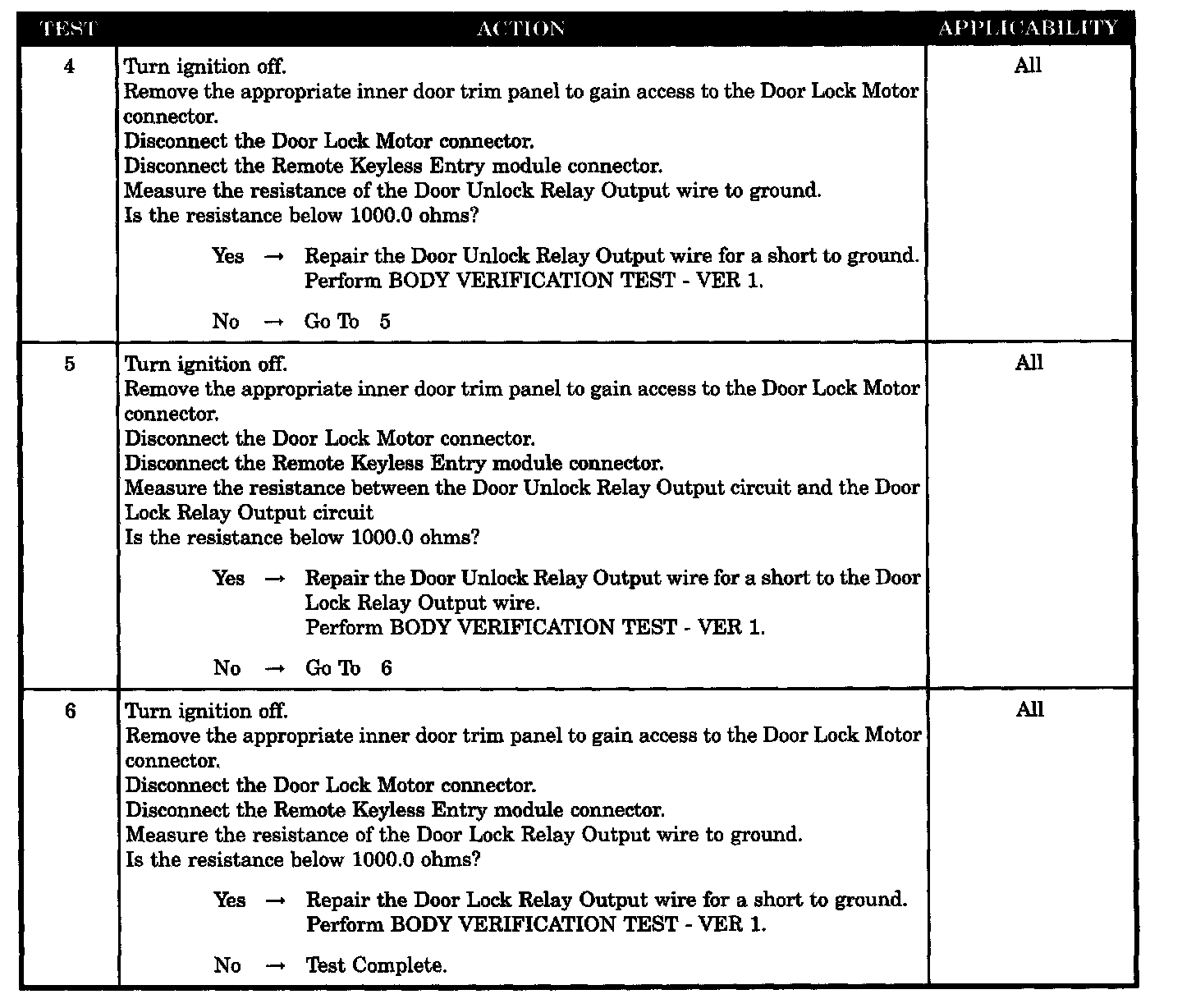

Test 4 - 6:
SYMPTOM
ONE PASSENGER DOOR FAILS TO LOCK AND UNLOCK
POSSIBLE CAUSES
- Door lock motor - open
- Door unlock relay output wire open
- Door lock relay output wire open
- Door unlock relay output wire short to ground
- Door unlock relay output short to door lock relay output
- Door lock relay output wire short to ground
