2003 Chrysler PT Cruiser L4-2.4L VIN BFACTORY OEM SERVICE PROCEDURE
Programming and Relearning
STANDARD PROCEDURE - RKE/VTSS CONFIGURING A NEW MODULE
To switch operating modes or to configure a new module, a DRB III(R) scan tool must be used.
1. Hook up the DRB III(R) scan tool to the Data Link Connector (DLC).
2. With the key in the ignition, turn the key to the RUN position.
3. After the DRB III(R) scan tool initialization, perform the following:
a. Select "Theft Alarm.
b. Select "VTSS."
c. Select "Miscellaneous."
4. Once in the "Miscellaneous" screen:
a. If you wish to configure a new module, select "Configure Module.
To switch operating modes or to configure a new module, a DRB III(R) scan tool must be used.

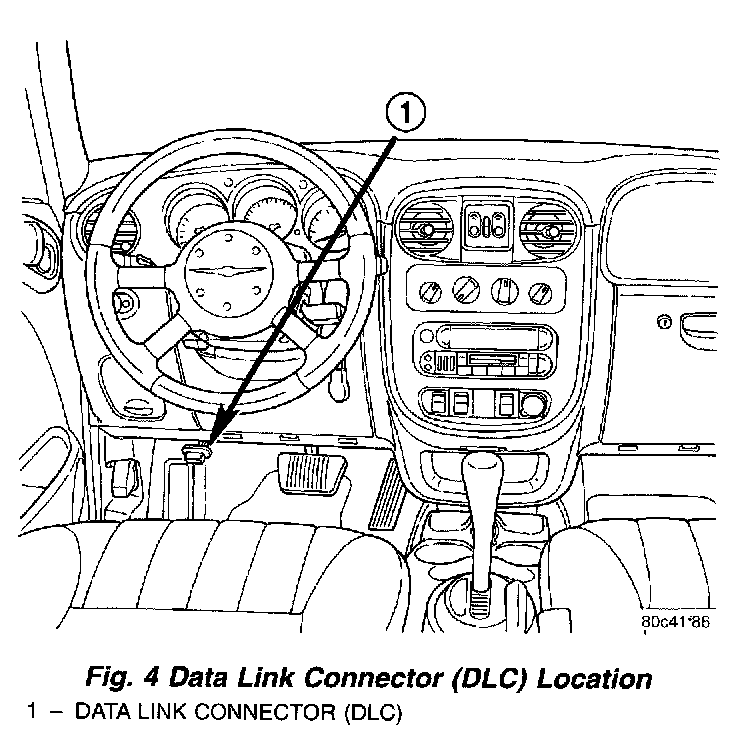

Fig.4 Data Link Connector (DLC) Location:
1. Hook up the DRB III(R) scan tool to the Data Link Connector (DLC).
2. With the key in the ignition, turn the key to the RUN position.
3. After the DRB III(R) scan tool initialization, perform the following:
a. Select "Theft Alarm.
b. Select "VTSS."
c. Select "Miscellaneous."
4. Once in the "Miscellaneous" screen:
a. If you wish to configure a new module, select "Configure Module.
