2003 Chrysler PT Cruiser L4-2.4L VIN BFACTORY OEM SERVICE PROCEDURE

Vehicle Identification Number

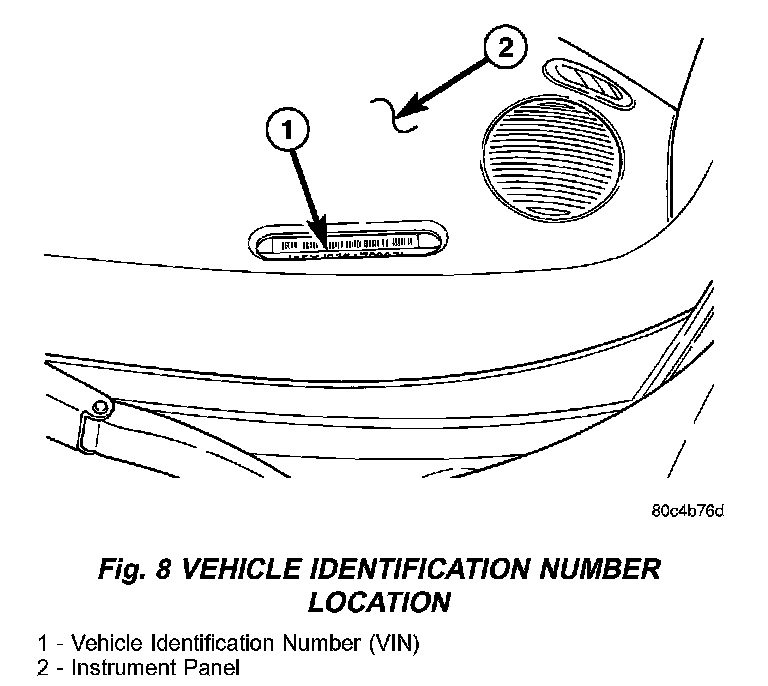

Vehicle Identification Number Location:

Factory service manual diagram

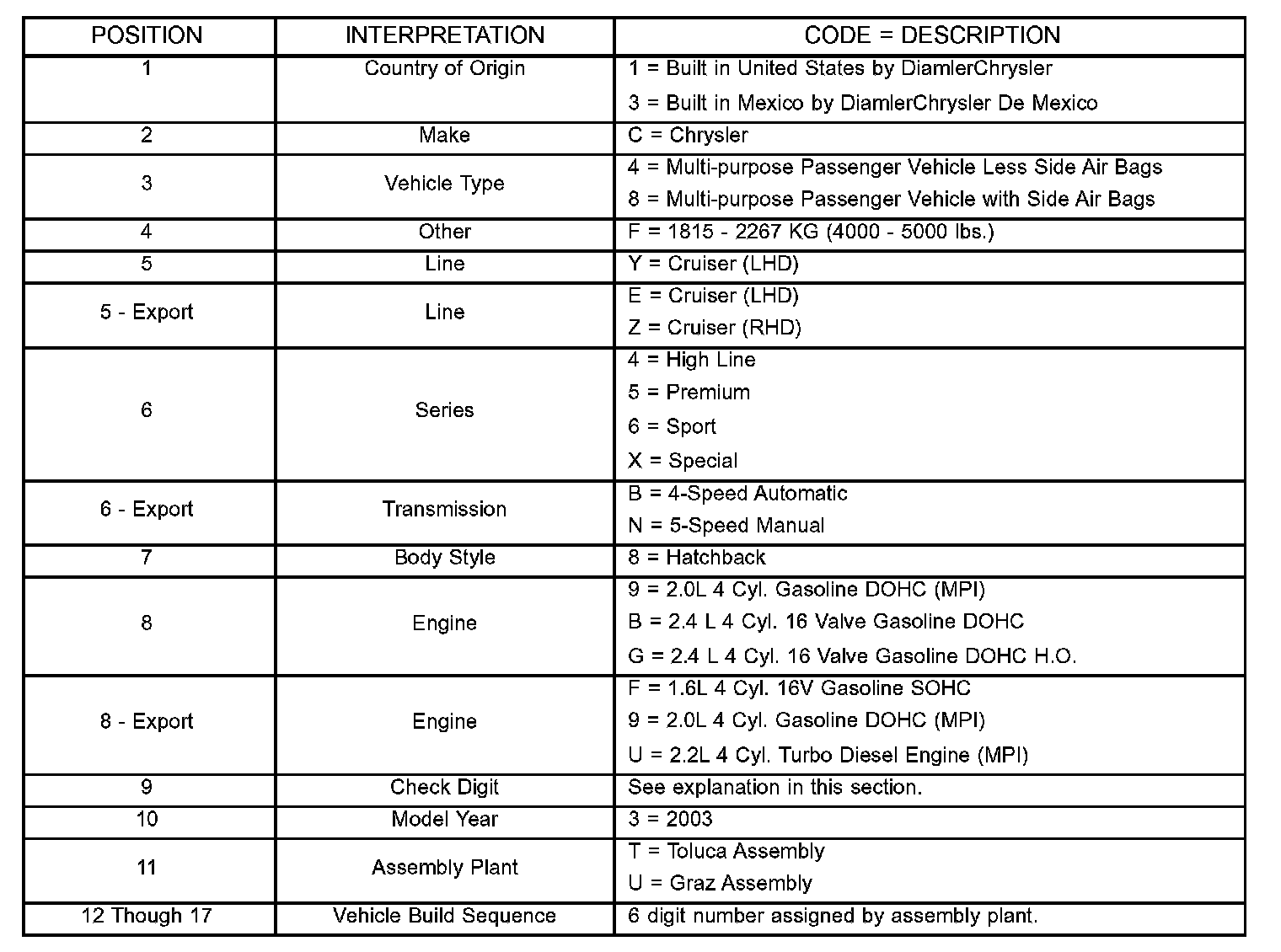

Vin Code Decoding:

Factory service manual diagram



The Vehicle Identification Number (VIN) is located on the upper left corner of the instrument panel, near the left A-Pillar. The VIN consists of 17 characters in a combination of letters and numbers that provide specific information about the vehicle. Refer to VIN Code Decoding Chart.

To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the Vehicle Identification Number. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public.
